Installing the drive chain

4. Mount the new guard plate with two M5 x 8 round
head screws.

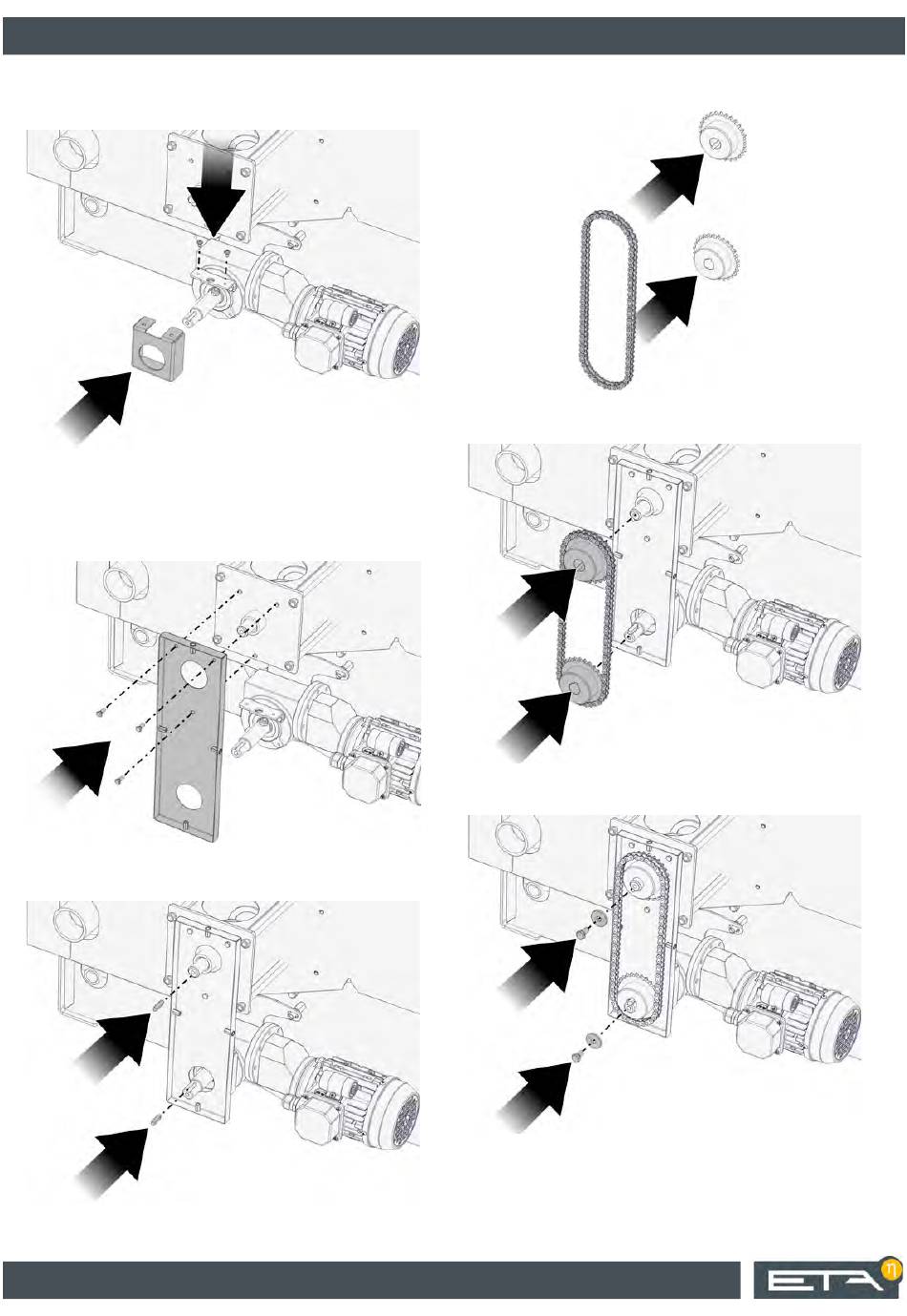

4.3 Installing the drive chain
1. Hand-tighten the rear of the chain protector to the
flange bearing with three M5 x 12 hex screws.
2. Make sure you insert a key in the drive shaft stub.
Grease the drive shaft stub.
12
3. Place the drive chain on both gears.
4. Push both gears with the drive chain onto the drive
shaft stub.
5. Mount both gears with an M8 x 16 hex screw and
washer to the drive shaft stub.
