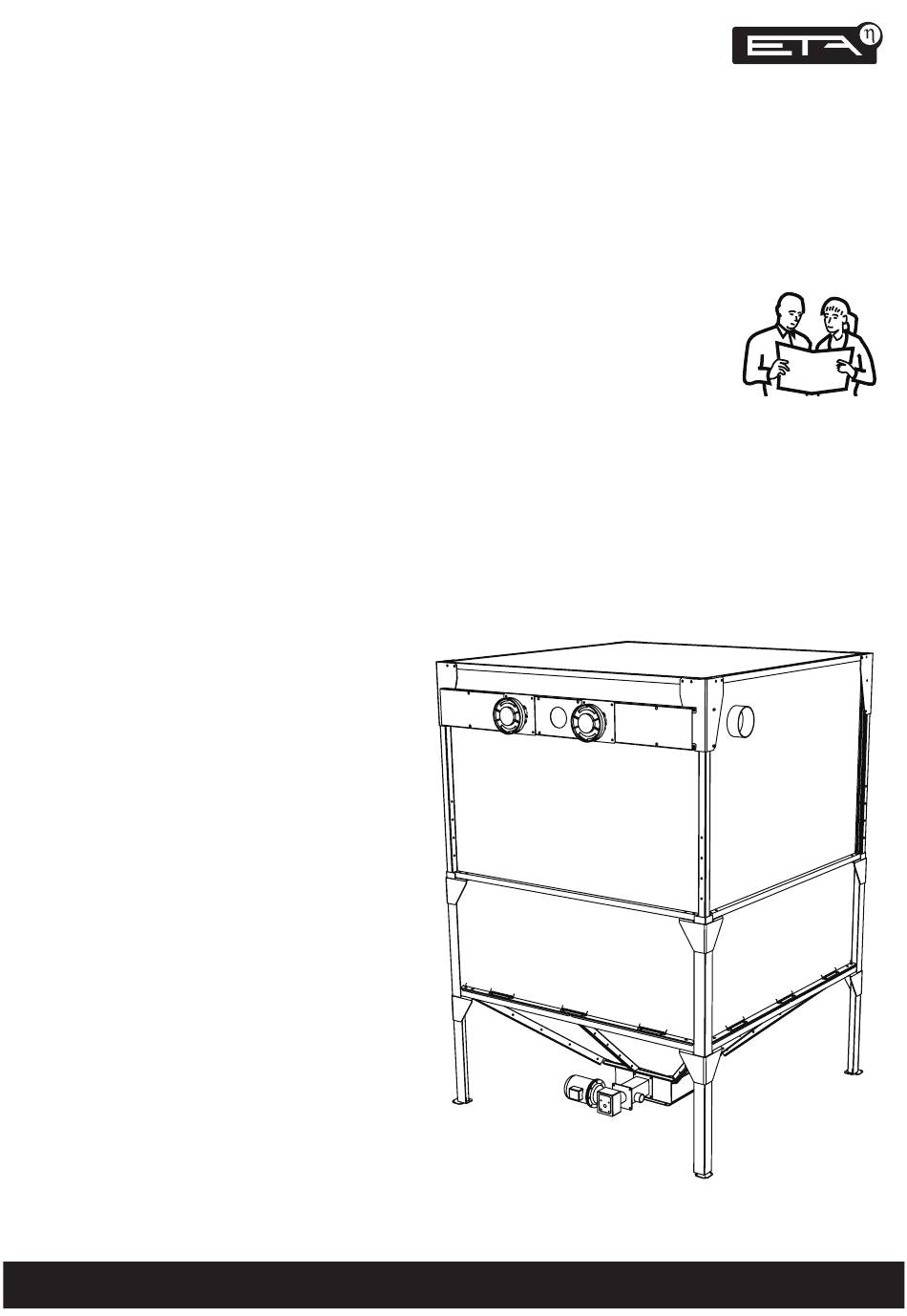

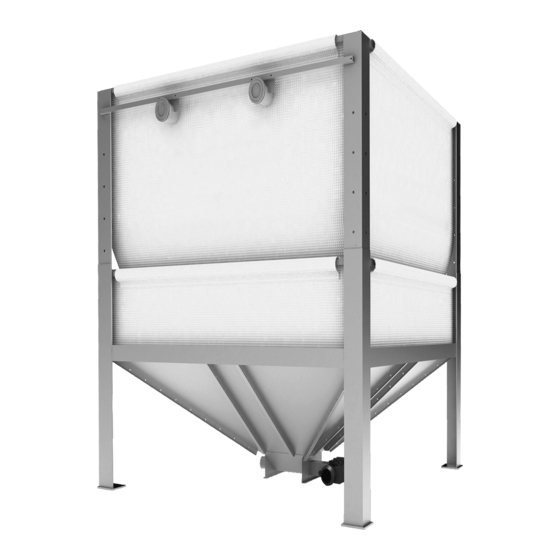

- Page 1 2012-10-22 EN_Englisch ETAbox User manual...
-
Page 2: Table Of Contents
Functionality, fill level ........7 Disposal must be done in an environmentally Before filling ..........8 friendly manner in accordance with waste disposal Filling the ETAbox ...........9 laws. Recyclable materials must be cleaned and After filling ..........10 separated before recycling. Troubleshooting........... 11 Diagnosis ........... - Page 3 Rules for safe operation Service agreement Discuss the rules for safe operation of the system You can ensure the best care for the ETAbox by with your customer, preferably before beginning to taking out a service agreement with one of our use it as afterwards it could already be too late.
-
Page 4: Warranty, Guarantee And Liability Conditions
(ÖNORM M 7135, DIN 51731, DINplus, EN 14961-2 and ENplus A1) with a diameter of 6 to 8 mm and a length of 15 to 40 mm. If the ETAbox or parts thereof are used for any other purpose, no guarantee or functionality claims may be asserted. -
Page 5: For Safe Operation
Container wall across from couplings must be 200 off as well. If there is no switch, isolate the ETAbox mm from wall from the mains using the trip switch (RCD). -
Page 6: Design, Dimensions And Capacities
Discharge conveyor with screw and drive motor Dimensions and capacities The height of the ETAbox can be adjusted to the room height in increments of 100 mm. ETAbox 17 Length x width:... -
Page 7: Operation
When the boiler has enough pellets, its control system switches off the conveyor screw. The Suction hose to boiler and back air hose to ETAbox vacuum pump continues to run (factory setting of 10 seconds for an ETA boiler) to empty the pellet hoses. -
Page 8: Before Filling
At least 3 hours before filling, switch off the heating system to avoid back-burning. If an ETA boiler is being used with the ETAbox, the heating system may remain switched on. An ETA boiler is equipped with a draught fan and ventilated rotary valve to protect against back-burning. -
Page 9: Filling The Etabox
300 to 400 mm below the container's upper edge. Check fill level regularly Check the fill level regularly to prevent overfilling. Do not overfill the ETAbox. The current fill level can Inspection port closed be determined by looking through the inspection ports or by feel (see page 7). -
Page 10: After Filling
Cover the couplings Heating can resume immediately after filling. Enter the ETAbox's new pellet volume into the boiler's control system if your boiler records pellet consumption or volume. Information about this can be found in your boiler's operating instructions. -
Page 11: Troubleshooting
• The boiler is not controlling the • Check motor wiring; see installation motor doesn't start or runs motor correctly or the cables instructions for ETAbox and boiler intermittently have been attached to the motor incorrectly • Obstruction; see "Clearing •... -
Page 12: Clearing Obstructions
Clearing obstructions Troubleshooting Jammed conveyor screw If the conveyor screw on the ETAbox is operated without the boiler's vacuum motor, the screw will jam at the suction nozzle because the pellets are not being sucked away. The conveyor screw transports pellets to the suction nozzle until it jams on the pellets that have not been transported and is switched off by the motor protection. -
Page 13: Removing Foreign Objects
Stop heating and use the mains switch to switch off the boiler. If the ETAbox has a separate power supply, discon- Discharge conveyor with screw and drive motor nect it from the mains as well. Remove screws... - Page 14 Slowly insert the screw into the discharge conveyor. The end of the conveyor screw must be inserted into the bearing at the rear end of the discharge conveyor. Reattach the flange with 4 M10 x 25 hex-head screws. Replace screws Store www.eta.co.at...
- Page 15 M8 x 25 hex-head screws. Remove barrier plates Reconnect power supply Switch on the boiler with the mains switch. If the ETAbox has a separate power supply, recon- M8 x 25 nect it with the mains. Begin heating Verify error-free function of discharge conveyor.
-
Page 16: Maintenance And Service Records
We recommend that you keep records about all service and maintenance work, as well as malfunctions. These records can be entered in the following pages. Then you and our customer service will always have an overview of the work performed on the system. Service / maintenance / cleaning Date Performed by Work performed / parts replaced www.eta.co.at... - Page 17 Maintenance and service records Service / maintenance / cleaning Date Performed by Work performed / parts replaced ETAbox Operation 2012-10...
- Page 18 Maintenance and service records Date Service / maintenance / cleaning Performed by Work performed / parts replaced www.eta.co.at...
- Page 19 Maintenance and service records Date Service / maintenance / cleaning Performed by Work performed / parts replaced ETAbox Operation 2012-10...
-
Page 20: Safety Instructions
Maintenance and service records Safety instructions For all work, switch off heating system For all work on the ETAbox and on the pellet conveyor system, the ETAbox and the heating system must be switched off (switch off boiler or disconnect it from mains...)
