MODEL #
CM-BK967T
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America CM-BK967T
Summary of Contents for Furniture of America CM-BK967T

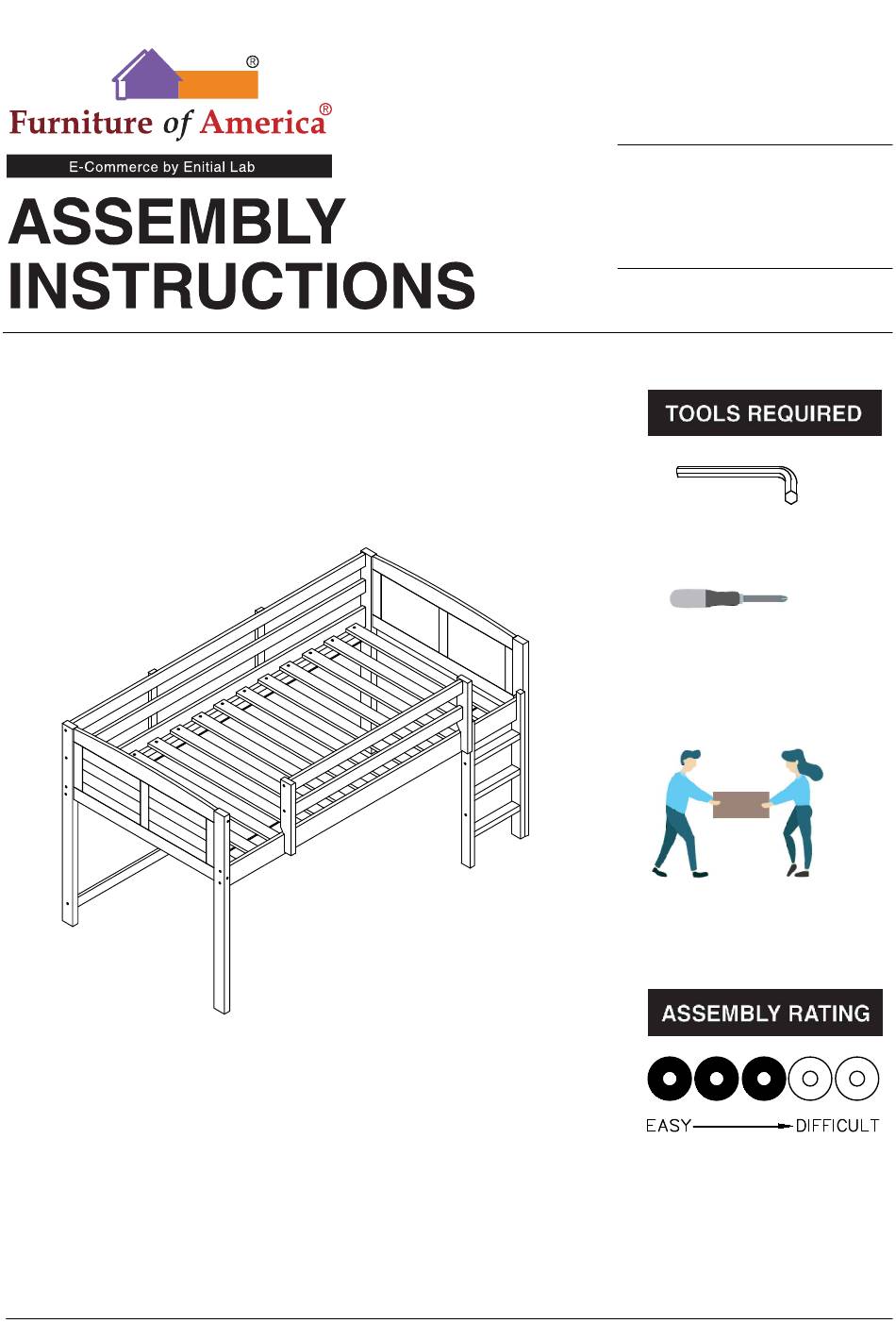

- Page 1 MODEL # CM-BK967T Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X 1 2...
- Page 5 CM-BK967T #1 1pc #2 1pc #3 1pc #4 1pc Front Right Foot Front Left Foot Back Right Foot Back Left Foot #5 2pcs #6 2pcs #7 2pcs #8 1pc Front Guardrail Back Guardrail Headboard Back Siderail #9 2pcs #10 1set...
- Page 6 #A 8pcs #B 10pcs #C 6pcs #D 18pcs Wood Dowel Bolt Ø1/4" x 3-1/8" Screw Ø1/4" x 4" Bolt Ø1/4" x 2" Ø10 x 40mm #H 2pcs #G 26pcs #E 8pcs #F 8pcs Washer Ø1/4" Bolt Ø1/4" x 3-1/8" Screw #4x35mm Screw #4x40mm #I 1set #L 4pcs...
- Page 7 ASSEMBLY INSTRUCTIONS Insert dowels (#D) to panels (#7,15). Part #7 x2pcs Part #15 x1pc Hardware #D x6pcs Part #5 x2pcs Insert dowels (#D) onto panels (#5). Hardware #D x8pcs 7 / 12...
- Page 8 ASSEMBLY INSTRUCTIONS Insert dowels (#D) onto panels (#6). Part #6 x2pcs Hardware #D x4pcs Align headboard (#5) to HB legs (#2,4), then secure by using screws (#A). Part #2 x1pc Part #4 x1pc Part #5 x1pc Hardware #A x4pcs 8 / 12...
- Page 9 ASSEMBLY INSTRUCTIONS Part #1 x1pc Part #3 x1pc Part #5 x1pc Hardware #A x4pcs Align headboard (#5) to HB legs (#1,3), then secure by using screws (#A). Align panels (#8,16) to headboard, then Part #7 x2pcs secure by using bolts (#F) onto washers (#E). Part #8 x1pc Part...
- Page 10 ASSEMBLY INSTRUCTIONS Part #6 x2pcs Part #9 x2pcs Hardware #B x4pcs Hardware #K x1pc Align support (#9) to the guardrail (#6), then secure by using screws (#B). Part #14 x2pcs Hardware #L x4pcs Hardware #M x6pcs Align supports (#14) to the back guardrails, then secure by using bolts (#M).
- Page 11 ASSEMBLY INSTRUCTIONS Align slats (#10) to the bed, then secure by using screws (#G). Part #10 x1set Hardware #G x26pcs Part #11 x1pc Align hooks (#I) to ladder, then secure by using Part #12 x1pc screws (#N). Align ladder rails (#11,12) to ladder Part #13 x3pcs rungs (#13), then secure by using screws (#C).
- Page 12 ASSEMBLY INSTRUCTIONS Align ladder to the bed, then secure by using screws (#N,H) as shown in the Hardware #H x2pcs diagram. Hardware #N x2pcs 12 / 12...
-
Page 13: Safety Warning
SAFETY WARNING To help prevent serious or fatal injuries from entrapment or falls Follow the information on the warnings appearing on the upper bunk bed structure and on thi carton. Do not remove warning label from the bed. . Always use the recommended type and size mattress or mattress support, or both, to help prevent the likehood of entrapment or falls.
