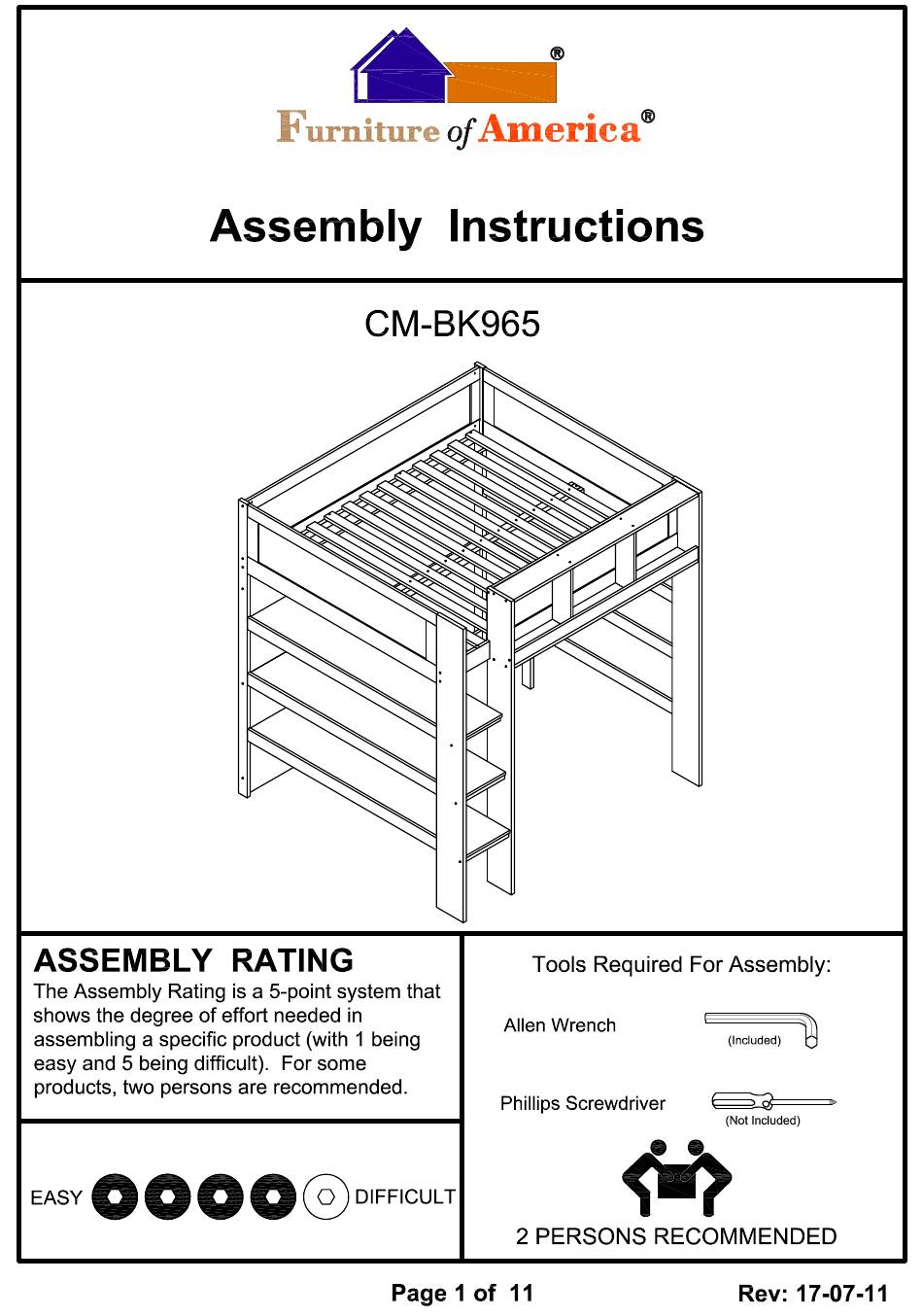

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 6 Insert wood dowels (#G) and barrel nuts (#B) to each end of shelves (#13). Align and attach shelves (#13) to the holes of the large bookshelf panels (#11,12). Secure by screwing and latching bolts (#D) onto barrel nuts (#B). Align horizontal bar (#14) to the holes of the large shelf (#12), then secure with bolts (#E).
- Page 7 1) Insert wood dowels (#G) and barrel nuts (#B) to each end of back guardrail (#4) and right side of front guardrail (#5). Align and attach back guardrail (#4) and right side of front guardrail (#5), then secure by screwing/latching bolts (#A) onto barrel nuts (#B).
- Page 8 1) Insert dowels (#G) and barrel nuts (#B) to the back end of the stair panels (#8,9,10). Attach stair panels (#8,9,10) to the holes of the behind panel (#7). Secure by screwing/ latching bolts (#C) onto barrel nuts (#B). 2) Align the front of the stair panels (#8,9,10) to the holes of the side panels, then secure with screws (#F).
- Page 9 1) Align iron bas (#K) to the bottom corner of the back guardrail, then secure with screws (#J). 2) Align iron bas (#H) to the 3) Align iron bas (#M) to the back bar (#6) and back guardrail and behind behind panel (#7).
- Page 10 Align center support rail (#16) to the top bunk, then secure with screws (#I). Align slats (#15) to the side rails, then secure with screws (#I).
