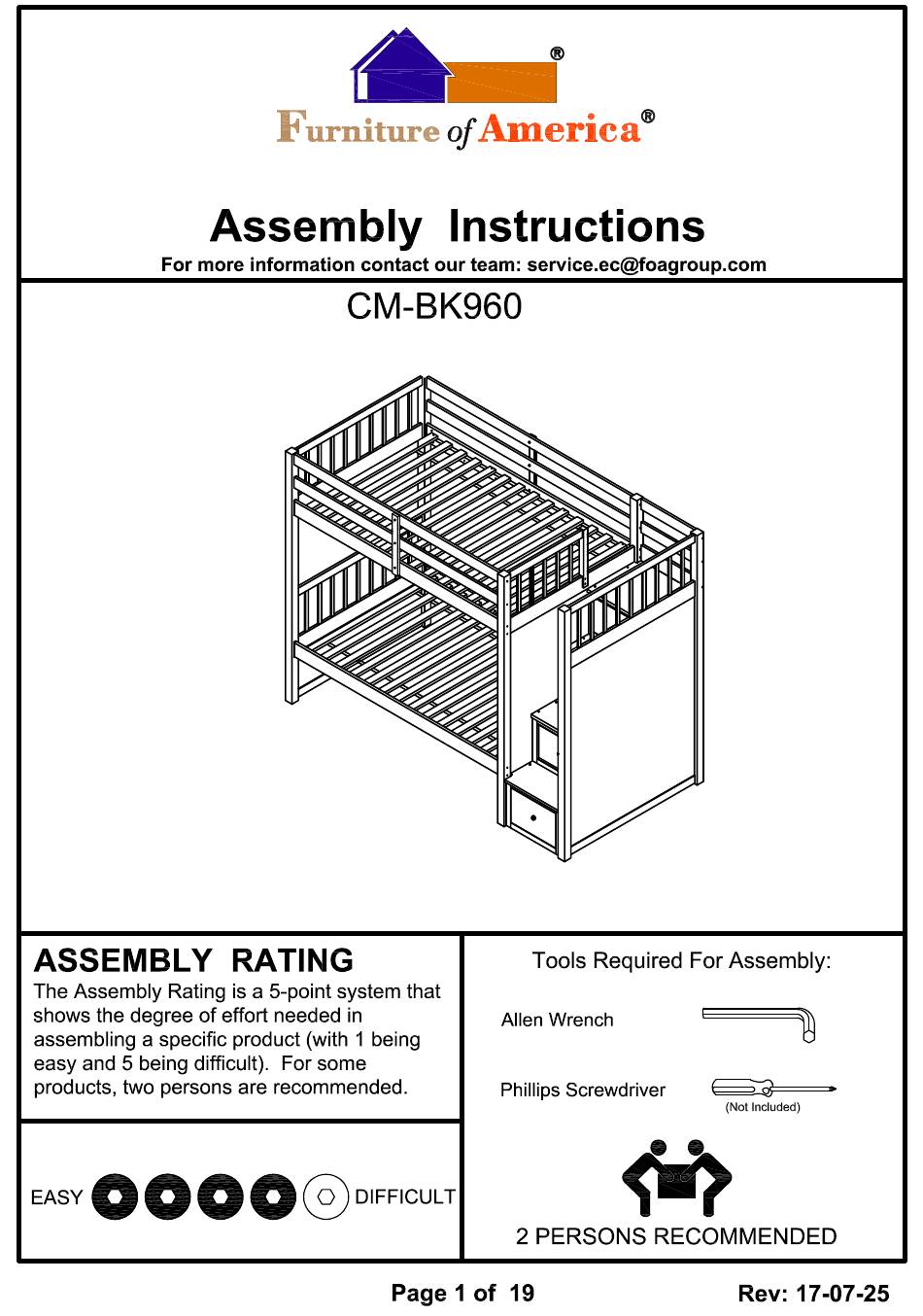

- Page 7 1) Attach 2 dowels (#F) to each end of guardrails (#6), then insert barrel nuts (#B) to the side holes of the guardrails (#6). Align guardrails (#6) to the top holes of the headboard (#1,2). Secure by attaching bolts (#A) onto barrel nuts (#B) of the guardrails (#6).
- Page 8 Insert 2 dowels (#F) to each end of the back guardrails (#9,10). Align and attach back guardrails (#9,10) to the top holes of headboard (#2). Secure by using bolts (#C). Do not attach headboard panel (#3). 1) Align crossbar (#11) to the bottom hole of the headboard (#2). Secure by using bolts (#R).
- Page 9 Align foot plate (#15) to the holes of the headboard panel (#9). Secure with bolts (#E). Do not attach headboard (#3). Align crossbar (#12) to the second step of the stair case. Secure by using bolts (#D). Place foot plate (#14) to the top of the foot plate (#15). Do not attach headboard panel (#3).
- Page 10 Align foot plate (#16) to the holes of the headboard panel (#3). Secure by using bolts (#E). Do not attach headboard panel (#3). Align crossbar (#12) to the third step of the stair case. Secure by using bolts (#D). Place foot plate (#14) to the top of the foot plate (#16). Do not attach headboard panel (#3).
- Page 11 Align foot plate (#16) to the holes of the headboard panel (#3). Secure by using bolts (#E). Do not attach headboard panel (#3). Align crossbar (#12) to the fourth step of the stair case. Secure by using bolts (#D). Place foot plate (#14) to the top of the foot plate (#16). Do not attach headboard panel (#3).
- Page 12 Align foot plate (#17) to the holes of the headboard (#2). Secure by using bolts (#E). Do not attach headboard panel (#3). Align back guardrails (#9,10) to the holes of the headboard panel (#3). Secure by using bolts (#C).
- Page 13 Secure crossbar (#11) to headboard panel (#3) by using bolts (#R). Secure foot plate (#13) to headboard panel (#3) by using bolts (#E). Secure crossbars (#12) on each stair way steps to headboard panel (#3) by using bolts (#D).
- Page 14 Secure foot plate (#17) to headboard Secure foot plate (#15) panel (#3) by using bolts (#E). to headboard panel (#3) by using bolts (#E). Secure foot plate (#16) to headboard panel (#3) by using bolts (#E). 1) Align scroll bars (#O) to each steps of the stairs. Secure the back of the scroll bars (#O) by using screws (#J).
- Page 15 Align back plane (#26) to the holes in the back of the stair case. Secure by using screws (#K). 1) Insert dowels (#G) to the holes of the front drawer panel (#18,19). Align and attach drawer side panels (#20,21) to the dowels of the front drawer panels (#18,19).
- Page 16 Align back panel (#22,23) to the holes of the drawer side panels, then secure by using screws (#I). Make sure the back drawer panel (#22) is connected to drawer that has front panel (#18) and bottom panel (#24). Make sure the back drawer panel (#23) is connected to drawer that has front panel (#19) and bottom panel (#25). Align scroll bar (#N) to the bottom of each drawers.
- Page 17 Align knob (#P) to the front of the drawer panel, then secure by using bolts (#Q). Attach drawer rails to the rails of the staircase. Drawer with panels (#18,24,22) goes to bottom of stair case.
- Page 18 Align slat kits (#8) to the top and bottom bunk side rails, then secure by using screws (#H).
