VERSION
# 20-01-14
1 / 13
MODEL #
CM-BK967C-3D
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America CM-BK967C-3D
Summary of Contents for Furniture of America CM-BK967C-3D

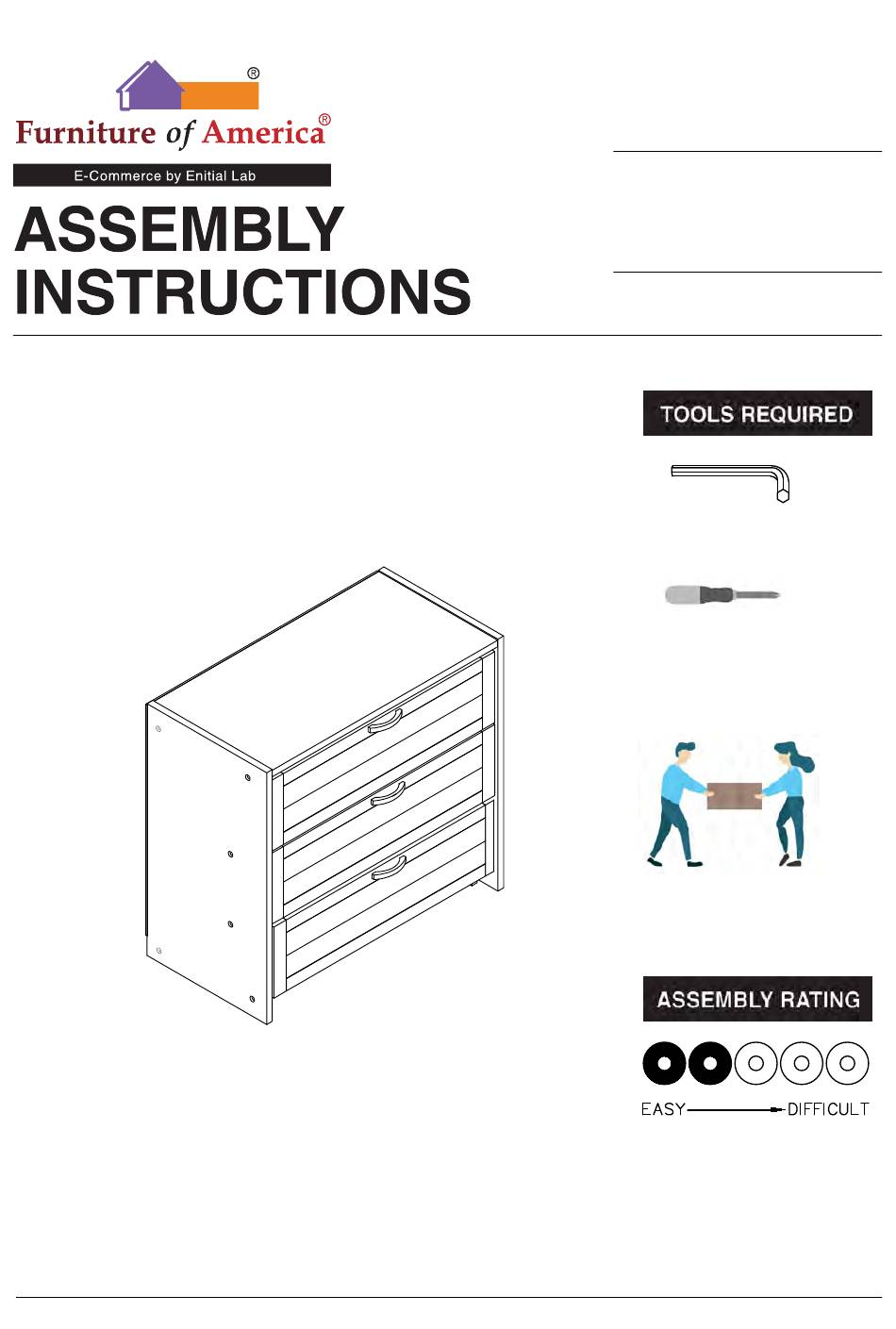

- Page 1 MODEL # CM-BK967C-3D Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X 1 3...
- Page 5 CHEST CM-BK967C-3D #1 1pc #2 1pc #3 1pc #4 4pcs Back Panel Top Panel Right Side Panel Bottom Back Rail #5 3pcs #6 3pcs #7 3pcs #8 3pcs Drawer Front Panel Drawer Right Panel Drawer Back Panel Drawer Bottom Panel...
- Page 6 #G 16pcs 6pcs #E 12pcs #F 4pcs Screw #3.5x15mm Dowel #8x30mm Barel Nut Ø1/4" Screw #5/32x22mm 3pcs 12pcs Holder Dowel #6x30mm 6 / 13...
- Page 7 ASSEMBLY INSTRUCTIONS Insert dowels (#E) to panel (#1). Part #1 x1pc Hardware #E x4pcs Insert dowels (#E) to the rail (#4). Part #4 x4pcs Hardware #E x8pcs 7 / 13...
- Page 8 ASSEMBLY INSTRUCTIONS Insert dowels (#K) to panels (#6,9,11). Part #9 x1pc Part #6 x1pc Part #11 x1pc Hardware #K x4pcs Part #10 x1pc Hardware #B x4pcs Align panels (#4) to panels (#10), then secure by using screws (#B). 8 / 13...
- Page 9 ASSEMBLY INSTRUCTIONS Align panel (#1) to panel (#10), then secure by using bolts (#A) onto barrel nuts (#F). Part #1 x1pc Hardware #A x2pcs Hardware #F x2pcs Align panel (#2) to the rest of the unit. Secure panel (#4) to panel (#2) by using screws (#B).
- Page 10 ASSEMBLY INSTRUCTIONS Align back panel (#3) to the unfinished side of the unit, then secure by using screws (#G). Part #3 x1pc Hardware #G x16pcs Part #7 x1pc Hardware #C x4pcs Align drawer panels (#6,7,11) together, then secure by using screws (#C). 10 / 13...
- Page 11 ASSEMBLY INSTRUCTIONS Slide drawer bottom panel (#8) through the thin lined gaps of the panels (#6,7,11). Part #8 x1pc Align drawer front panel (#5) to the panels Part #5 x1pc (#6,11), then secure by using screws (#C). Hardware #C x4pcs 11 / 13...
- Page 12 ASSEMBLY INSTRUCTIONS Hardware #H x2pcs Align handles (#I) to the drawers, then secure by using screws (#H). Hardware #I x1pc Align drawer support (#9) to the bottom of Part #9 x1pc the drawer, then secure by using screws Hardware #C x2pcs (#C).
- Page 13 ASSEMBLY INSTRUCTIONS 13 / 13...
