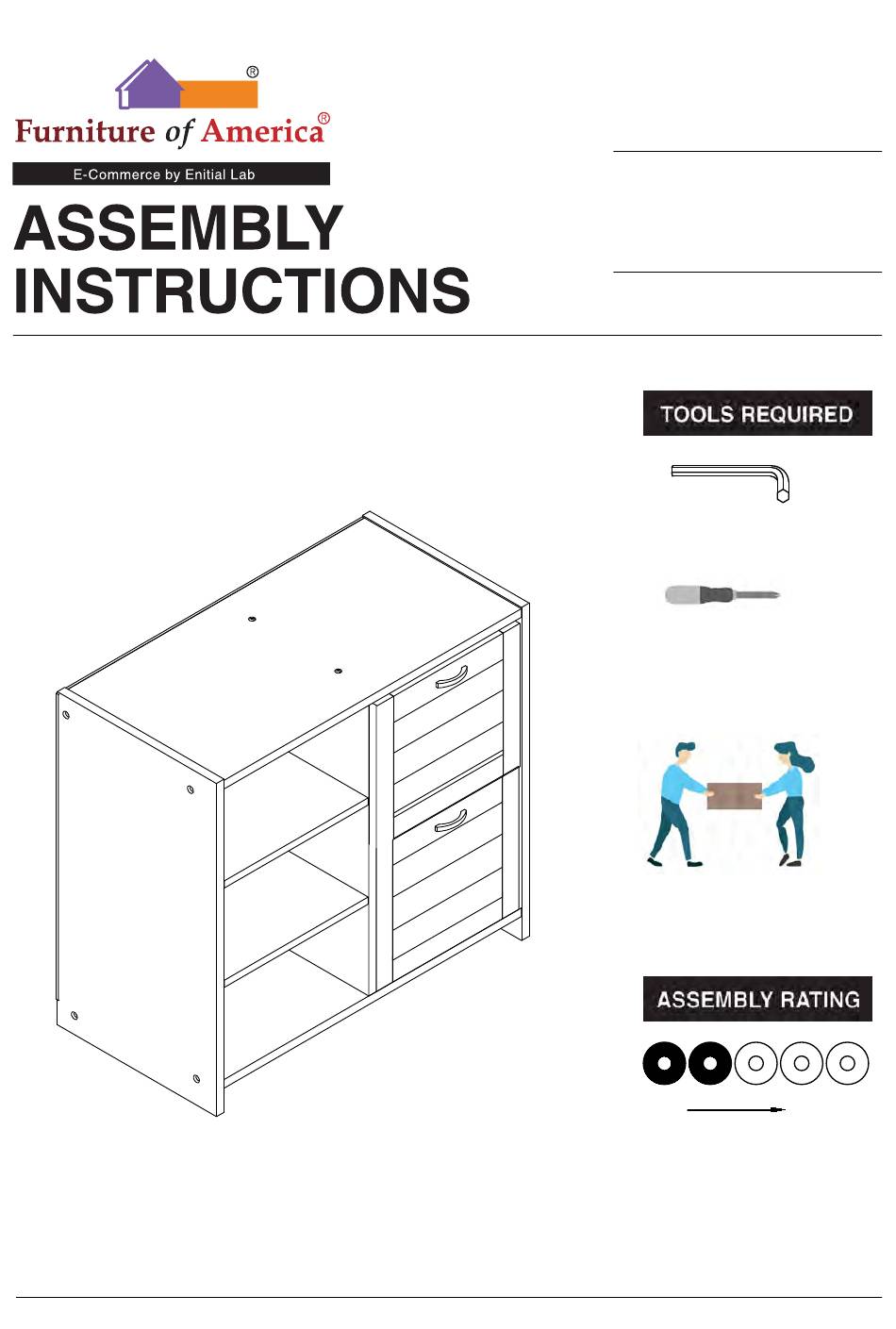

VERSION
# 20-01-14
1 / 13
MODEL #
CM-BK967C-2D
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-BK967C-2D
Summary of Contents for Furniture of America CM-BK967C-2D
- Page 1 MODEL # CM-BK967C-2D Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 13...
- Page 5 CHEST CM-BK967C-2D #1 1pc #2 1pc #3 1pc #4 1pc Between Panel Top Panel Bottom Panel Left Side Panel #5 1pc #6 1pc #7 1pc #8 2pcs Back Panel Back Panel Right Side Panel Shelf Panel #9 2pcs #10 2pcs...
- Page 6 #A 12pcs #B 8pcs #C 1pc #D 12pcs Barel Nut Ø1/4" Allen Key 4mm Shelf Pin Bolt Ø1/4"x2-3/8" #G 20pcs #H 16pcs #E 4pcs #F 12pcs Dowel #8x30mm Screw Screw Screw #4x25mm #5/32x22mm #3.5x15mm 2pcs #K 4pcs Dowel #6x30mm Holder 6 / 13...
- Page 7 ASSEMBLY INSTRUCTIONS Part #1 x1pc Part #2 x1pc Part #3 x1pc Hardware #F x12pcs Insert dowels (#F). Part #10 x1pc Part #13 x1pc Hardware #K x2pcs Insert dowels (#K). 7 / 13...
- Page 8 ASSEMBLY INSTRUCTIONS Align panels (#1,2,3) together, then secure by using bolts (#A) onto barrel nuts (#D). Hardware #A x4pcs Hardware #D x4pcs Finished side Align panel (#4) to panels (#1,2), then Part #4 x1pc secure by using bolts (#A) onto barrel Hardware #A x4pcs nuts (#D).
- Page 9 ASSEMBLY INSTRUCTIONS Part #5 x1pc Hardware #A x4pcs Hardware #D x4pcs Align panel (#5) to panels (#1,2), then secure by using bolts (#A) onto barrel nuts (#D). Part #6 x1pc Part #7 x1pc Align back panels (#6,7) to the Hardware #G x20pcs unfinished side of the unit, then secure by using screws (#G).
- Page 10 ASSEMBLY INSTRUCTIONS Part #10 x1pc Align drawer panels (#10,11,13) together, then Part #11 x1pc secure by using screws (#H). Part #13 x1pc Hardware #H x4pcs Part #12 x1pc Slide bottom drawer panel (#12) through the thin lined gaps of the panels (#10,13). 10 / 13...
- Page 11 ASSEMBLY INSTRUCTIONS Align drawer front panel (#9) to the panels (#10,13), then secure by using screws (#H). Part #9 x1pc Hardware #H x4pcs Hardware #E x2pcs Hardware #I x1pc Align and secure handles (#I) to the front of the drawers by using screws (#E). 11 / 13...
- Page 12 ASSEMBLY INSTRUCTIONS Align shelf pins (#B) to the unit. Hardware #B x8pcs Part #8 x2pcs Place shelves (#8) on shelf pins. 12 / 13...
- Page 13 ASSEMBLY INSTRUCTIONS 13 / 13...
