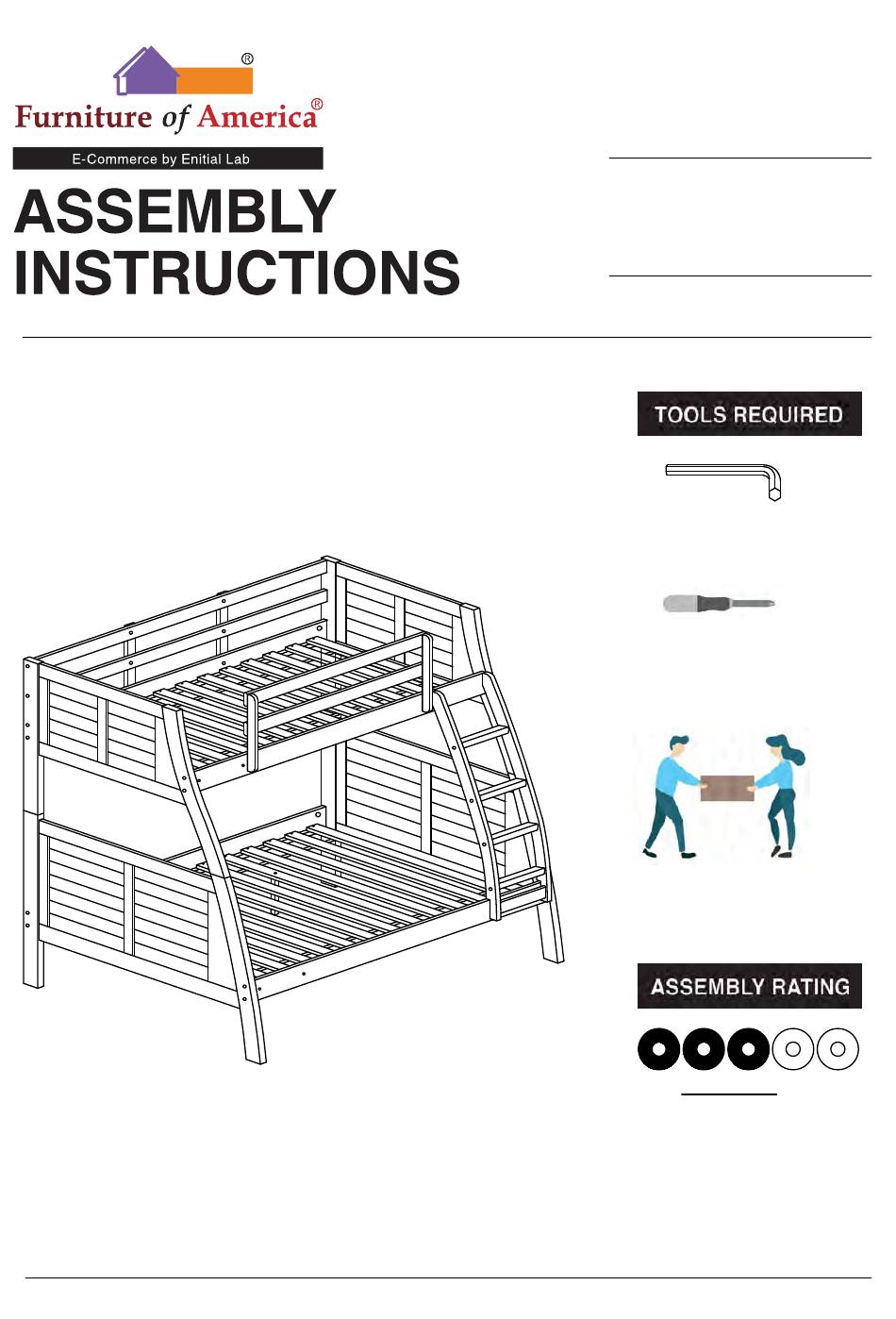

VERSION # 20-12-11
1 / 15
MODEL #
CM-BK963
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Hoople Trundle CM-BK963
Summary of Contents for Furniture of America Hoople Trundle CM-BK963
- Page 1 MODEL # CM-BK963 Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 15...
- Page 5 BUNK BED CM-BK963 #1 1pc #2 1pc #3 1pc #4 1pc Lower End Guardrail(R) Lower End Guardrail(L) Lower Back Side Rail Lower Front Side Rail #5 1pc #6 1pc #7 1pc #8 1pc Upper End Guardrail(R) Upper End Guardrail(L) Upper Front Side Rail Upper Back Side Rail #9 2pcs #10 2pcs...
- Page 6 #17 1set #18 2pcs Bottom Slat (14pcs) Support Leg #D 4pcs #A 4pcs #B 16pcs #C 16pcs Dowel Ø10 x 1-5/8" Bolt Ø1/4 x 2-3/4" Hanger Nut Ø1/4 Screw Ø6.5 x 3-1/8" #E 10pcs #F 24pcs #G 4pcs #H 8pcs Screw Ø1/4"...
-
Page 7: Exploded View
Exploded View 7 / 15... - Page 8 CM-BK963 is packed in 3 cases Carton Disignation Part Hardware Lower End Guardrail(R) Lower End Guardrail(L) CM-BK963-1 Upper End Guardrail(R) Upper End Guardrail(L) Lower Back Side Rail CM-BK963-2 Lower Front Side Rail #A x 4pcs #B x 16pcs Upper Front Side Rail #C x 16pcs CM-BK963-2 #D x 4pcs...
- Page 9 ASSEMBLY INSTRUCTIONS Align lower end guardrails (#1,2) to the lower front and back side rails (#3,4), then secure by using bolts (#B) Part #1 x1pc onto hanger nuts (#C). Part #2 x1pc Part #3 x1pc Part #4 x1pc Hardware #B x8pcs Hardware #C x8pcs Hardware...
- Page 10 ASSEMBLY INSTRUCTIONS Insert dowels (#A) to upper end guardrails (#5,6), then secure back guardrails (#9) to upper end guardrails (#5,6) by using screws (#D). Part #5 x1pc Part #6 x1pc Part #7 x1pc Part #8 x1pc Part #9 x2pcs Hardware #A x4pcs Hardware #B x8pcs...
- Page 11 ASSEMBLY INSTRUCTIONS Align front guardrails (#12) to the support, then secure by using bolts (#F). Part #12 x2pcs Hardware #F x8pcs Align supports (#10) to the back Part #10 x2pcs rails, then secure by using bolts (#F). Hardware #F x6pcs 11 / 15...
- Page 12 ASSEMBLY INSTRUCTIONS Align upper bunk to lower bunk, then secure by using bolts (#H). Hardware #H x4pcs Part #13 x1pc Part #14 x1pc Align ladder rungs (#15) to ladder Part #15 x5pcs rails (#13,14), then secure by using Hardware screws (#E). #E x10pcs 12 / 15...
- Page 13 ASSEMBLY INSTRUCTIONS Align ladder in either side of the bunk bed, Hardware #F x4pcs then secure by using bolts (#F). Align slat kits (#16,17) to the bunk bed, then secure by Part #16 x1set using screws (#I). Part #17 x1set Hardware #I x56pcs 13 / 15...
- Page 14 ASSEMBLY INSTRUCTIONS Align support leg (#18) to the slat kit (#17), then secure by using bolts (#F). Part #18 x2pcs Hardware #F x 2pcs 14 / 15...
- Page 15 15 / 15...
