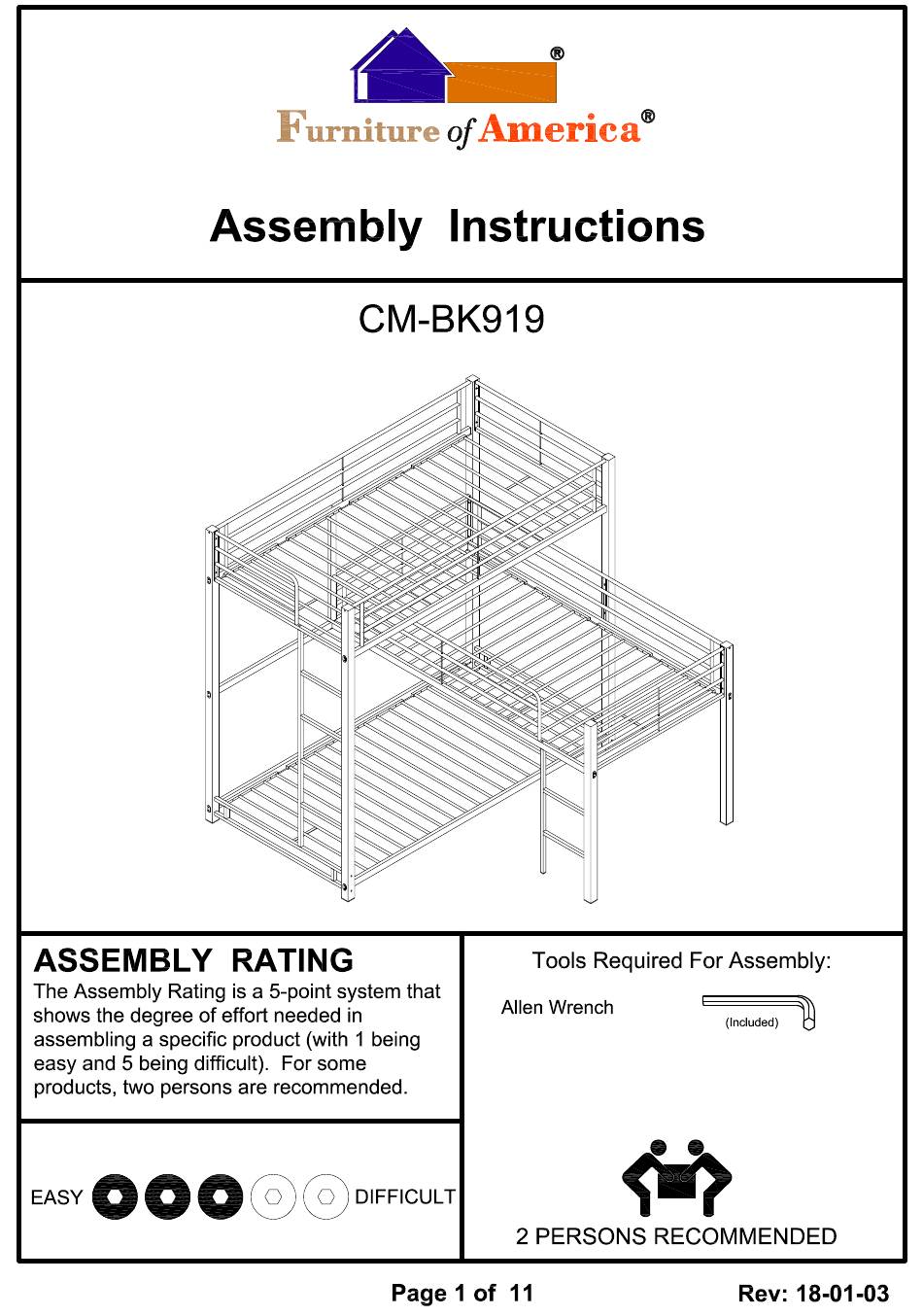

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 6 1,2) Align upper panel (#12) to the holes of the posts (#1,2). Secure by using bolts (#A). 5) Align long ladder (#19) to the holes of the post (#1), then 4) Align long ladder (#19) to the secure by using bolts (#B). holes of the upper panel (#12) and bottom frame (#14).
- Page 7 1) Align head panel (#13) to the holes of the posts (#3,4), then secure by using bolts (#A). 2) Align bottom frame (#15) to the holes of the posts (#3,4), then secure by using bolts (#G). 3) Align guardrail (#16) to the holes of the headboards.
- Page 8 1,2) Align rear vertical tube (#21) to the holes of the guardrails. Secure by using bolts (#A,F). Align headboard panel (#13) to the holes of the posts (#5,6). Secure by using bolts (#A).
- Page 9 3) Secure by using bolts (#C,E). 4) Secure by using bolts (#A). 2) Secure by using bolts (#C,D). 1) Align guardrails (#10,11) to the holes of the headboards. Secure by using bolts (#G,H). 1,2) Align ladder (#20) to the holes of the middle bunk.
- Page 10 Place slats (#17,18) to all bunks, then secure by using bolts (#B). ASSEMBLY COMPLETED...
