Franklin Electric SubDrive75 Installation Manual

Franklin Electric SubDrive75 Installation Manual

Constant pressure controller
Hide thumbs Also See for SubDrive75:

Advertisement

Status
État
Estado
SubDrive75/100/150/300/2W
MonoDrive, MonoDriveXT
Constant Pressure Controller
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SubDrive75 and is the answer not in the manual?

Questions and answers

Steve
February 3, 2025

Is it mandatory to use a Franklin submersible 4" motor with the Franklin Mono sub-drive? Thanks

1 comments:
Mr. Anderson
February 10, 2025

The Franklin Electric SubDrive/MonoDrive is designed to work with the specified Franklin Electric motor, as mentioned in the document. While it may technically function with other motors, using the specified Franklin Electric submersible 4" motor ensures compatibility and optimal performance.

This answer is automatically generated

Summary of Contents for Franklin Electric SubDrive75

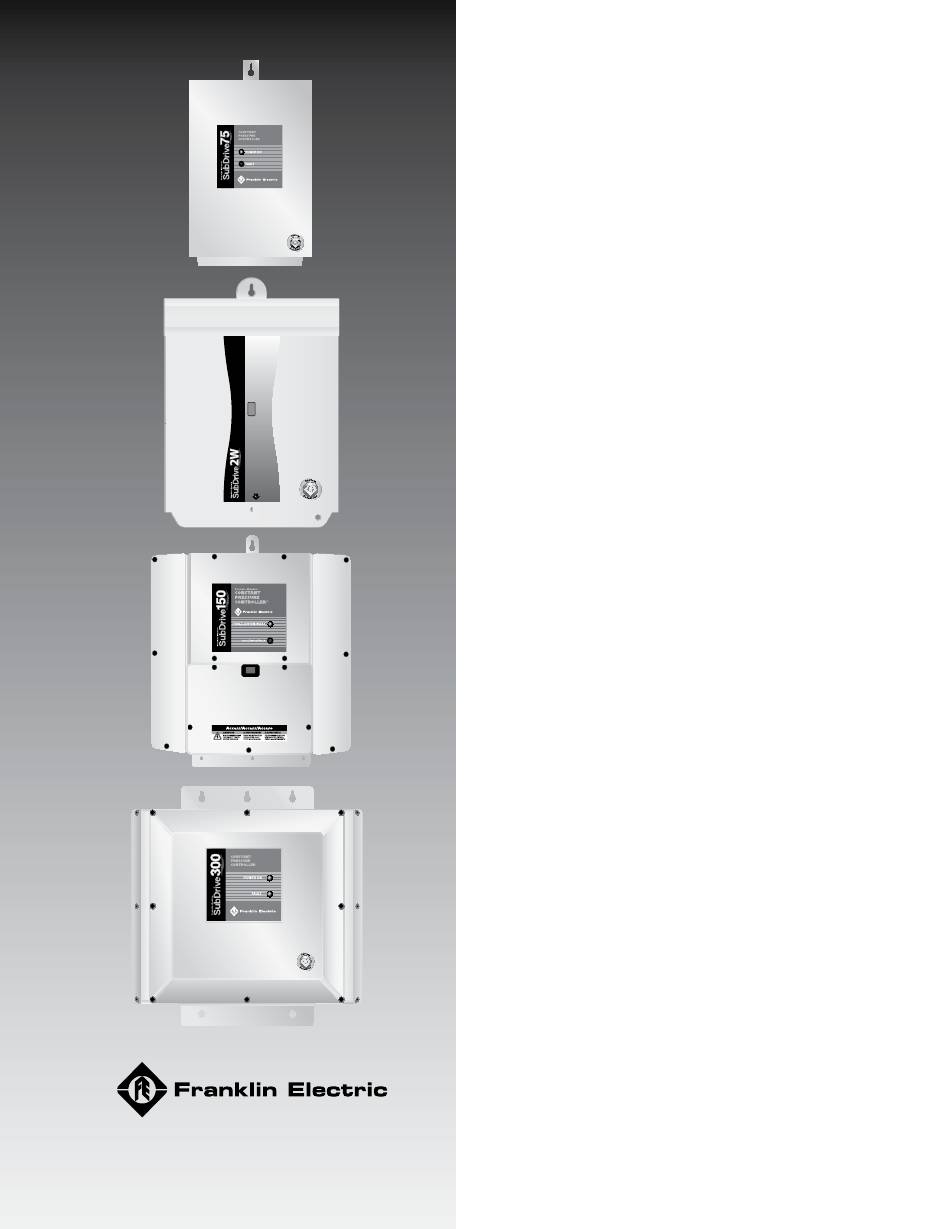

  • Page 1 Status État Estado SubDrive75/100/150/300/2W MonoDrive, MonoDriveXT Constant Pressure Controller Installation Manual...
  • Page 2 Use SubDrive/MonoDrive only with Franklin Electric 4-inch submersible motors as specified in this manual (see Table 1, pg. 4). Use of this unit with any other Franklin Electric motor or with motors from other manufacturers may result in damage to both motor and electronics.
  • Page 3: Table Of Contents

    • SubDrive75 . . . . . . . . . . . . . . . . . . . .
  • Page 4: Declaration Of Conformity

    224 301 xxxx (2.0 hp (1.5 kW)) Declaration of Conformity Franklin Electric declares under our sole responsibility, all SubDrive/MonoDrive series 587 020 3xx0 controllers are in conformity with the Council Directives on the approximation to the laws of the EEC member states relating to the following:...
  • Page 5: Description And Features

    The Franklin Electric SubDrive/MonoDrive is a dependable residential water system controller that uses advanced electronics to enhance the performance of standard submersible pumps. When used with the specified Franklin Electric motor (see Table 1, pg. 4), the SubDrive/ MonoDrive eliminates pressure cycling associated with conventional water well systems and owners of private water well systems can enjoy “city-like”...
  • Page 6: Included Items

    SubDrive/MonoDrive Included Items (NEMA 1) SubDrive75/100/150 MonoDrive/MonoDriveXT A. Controller Unit B. Strain Relief Fittings C. Pressure Sensor and Boot D. Sensor Adjustment Tool E. Sensor Cable F. Installation Guide Included Items (NEMA 4) SubDrive75/100/150 MonoDrive/MonoDriveXT INPUT OUTPUT FILTER FILTER A. Controller Unit...
  • Page 7: How It Works

    SubDrive/MonoDrive How it Works The Franklin Electric SubDrive/MonoDrive is designed to be part of a system that consists of only four components: A. Standard Pump and Franklin Electric Motor B. SubDrive/MonoDrive Controller C. Small Pressure Tank (see Table 4, pg. 29) D.
  • Page 8 MonoDrive and a pressure sensor. If the existing pump, motor and pressure tank are in good working order, no further changes are needed. MonoDrive controllers are ideal whenever the Franklin Electric single-phase 3-wire series motor is preferred. MonoDrives are especially suited for retrofit applications where a 3-wire pump system is already installed and in good operating condition.
  • Page 9: Subdrive75

    Flow GPM The SubDrive75 can also be set up to run a 1.0 hp (0.75 kW) or 1.5 hp (1.1 kW) pump if desired, but larger pumps will still produce to the 1.5 hp (1.1 kW) curve and may only be operated with a 1.5 hp (1.1 kW) motor.
  • Page 10: Subdrive100

    The SubDrive100 is configured at the factory for use with 1.0 hp (0.75 kW) pumps that are mounted to 2.0 hp (1.5 kW) Franklin Electric three-phase motors. In general, the SubDrive100 will enhance the performance of a 1.0 hp (0.75 kW) pump to a similar or better performance than a conventional 2.0 hp (1.5 kW) pump of the same flow rating (pump series).
  • Page 11: Subdrive150

    The SubDrive150 is configured at the factory for use with 1.5 hp (1.1 kW) pumps that are mounted to 3.0 hp (2.2 kW) Franklin Electric three-phase motors. In general, the SubDrive150 will enhance the performance of a 1.5 hp (1.1 kW) pump to a similar or better performance than a conventional 3.0 hp (2.2 kW) pump of the same flow rating (pump series).

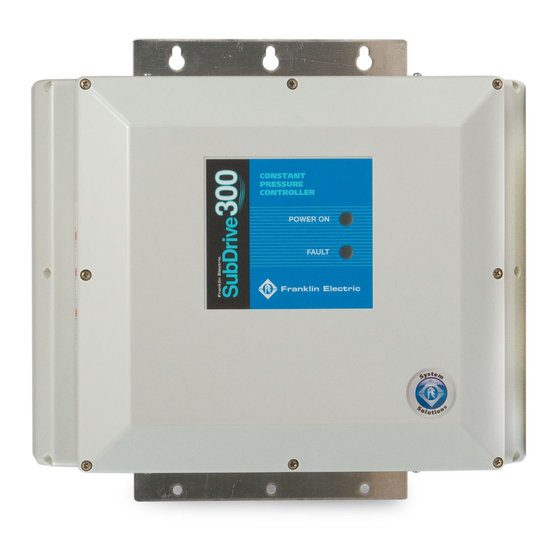

  • Page 12: Subdrive300

    The SubDrive300 is configured at the factory for use with 3.0 hp (2.2 kW) pumps that are mounted to 5.0 hp (3.7 kW) Franklin Electric three-phase motors. In general, the SubDrive300 will enhance the performance of a 3.0 hp (2.2 kW) pump to a similar or better performance than a conventional 5.0 hp (3.7 kW) pump of the same flow rating (pump series).
  • Page 13: Subdrive2W

    SubDrive/MonoDrive Pump Sizing – SubDrive2W The SubDrive2W is designed to convert a conventional 1/2 hp (0.37 kW), 3/4 hp (0.55 kW) or 1.0 hp (0.75 kW) pump system to a variable speed constant pressure system by simply replacing the pressure switch. Maximum pump output using the SubDrive2W is similar to the performance achieved using a pressure switch.
  • Page 14: Monodrive

    SubDrive/MonoDrive Pump Sizing – MonoDrive The MonoDrive is designed to convert a conventional 1/2 hp (0.37 kW), 3/4 hp (0.55 kW) or 1.0 hp (0.75 kW) pump system to a variable speed constant pressure system by simply replacing the 3-wire control box and pressure switch. Maximum pump output using the MonoDrive is similar to the performance achieved using a conventional control box.
  • Page 15: Monodrivext

    SubDrive/MonoDrive Pump Sizing – MonoDriveXT The MonoDriveXT is designed to convert a conventional 1.5 hp (1.1 kW) or 2.0 hp (1.5 kW) pump system to a variable speed constant pressure system by simply replacing the 3-wire control box and pressure switch. Maximum pump output using the MonoDriveXT is similar to the performance achieved using a conventional control box.
  • Page 16: Underload Sensitivity For Deep Wells

    SubDrive/MonoDrive Underload Sensitivity Selection (NEMA 1) – SubDrive75/100/150, MonoDrive, MonoDriveXT The SubDrive/MonoDrive controller is configured at the factory to ensure detection of Underload faults in a wide variety of pumping applications. In rare cases (as with certain pumps in shallow wells) this trip level may result in nuisance faults. If the pump is installed in a shallow well, activate the controller and observe system behavior.
  • Page 17 SubDrive/MonoDrive Underload Sensitivity Selection NEMA 4 and NEMA 3R The SubDrive/MonoDrive controller is configured at the factory to ensure detection of Underload faults in a wide variety of pumping applications. In rare cases (as with certain pumps in shallow wells) this trip level may result in nuisance faults. If the pump is installed in a shallow well, activate the controller and observe system behavior.
  • Page 18 SubDrive/MonoDrive Underload Sensitivity Selection SubDrive300 The SubDrive300 controller is configured at the factory to ensure detection of Underload faults in a wide variety of pumping applications. In rare cases (as with certain pumps in shallow wells) this trip level may result in nuisance faults. If the pump is installed in a shallow well, activate the controller and observe system behavior.
  • Page 19: Steady Flow Selection

    SubDrive/MonoDrive Steady Flow Selection SubDrive75/100/150/300, SubDrive2W/MonoDrive/MonoDriveXT The SubDrive/MonoDrive controller is configured at the factory to ensure quick response to maintain constant pressure. In rare cases (as with a water line tap before the pressure tank), the controller may need to be adjusted to offer better control.
  • Page 20: Sleep Mode

    SubDrive/MonoDrive Sleep Mode The SubDrive2W has been configured with a Sleep mode to disable the unit in the event the end-user requires it. The Sleep mode can be enabled by pressing the Sleep mode button found on the bottom of the unit for five (5) seconds. The Status indicator will display 3 horizontal segments.
  • Page 21: System Run Relay - Subdrive300/Subdrive2W

    SubDrive/MonoDrive System Run Relay – SubDrive300/SubDrive2W The SubDrive300/SubDrive2W is fitted with a relay output that activates (normally-open contact will close) whenever the system is actively pumping. This relay may be used to control other water system equipment such as water treatment systems that need to operate only when water is being used.
  • Page 22: Generator Sizing

    SubDrive/MonoDrive Generator Sizing for SubDrive/MonoDrive Basic generator sizing for the Franklin Electric SubDrive/MonoDrive system is 1.5 times maximum input Watts consumed by the drive, rounded up to the next normal sized generator. Recommended minimum generator sizes: MonoDrive SubDrive75 = 3500 Watts (3.5 kW) 1/2 hp (0.37 kW) = 2000 Watts (2 kW)
  • Page 23 SubDrive/MonoDrive CAUTION There should be at least 6 inches of clearance on each side and below the SubDrive/MonoDrive unit to allow room for air flow. 6" (15.24 cm) min. Clearance Pressure Pressure Tank Sensor Air Flow 6 Feet or Less (Pressure Tank to PressureSensor) PUMP (1.8 m)
  • Page 25 RV10...
  • Page 28: Circuit Breaker And Wire Sizing

    Listed fuse / Nominal Model Family Listed Circuit Input Breaker Amps Voltage 1290 1635 MonoDrive 1200 1580 2000 1160 1465 SubDrive75 1075 1415 1795 SubDrive2W 1295 1645 1135 MonoDriveXT 1095 1390 SubDrive100 1130 SubDrive150 SubDrive300 Highlighted Numbers denote wire with 194° F (90° C) insulation only...
  • Page 29: Pressure Tank

    MonoDrive can also use an existing tank with a much larger capacity. Table 4: Minimum Pressure Tank Size (Total Capacity) Pump Flow Rating Controller Model Minimum Tank Size SubDrive75 or MonoDrive 2 gallons (7.6 liters) Less than 12 gpm (45.4 lpm) SubDrive100 4 gallons (15.1 liters) SubDrive150 or MonoDriveXT 4 gallons (15.1 liters)
  • Page 30: Installation Procedure

    Lid Screw (Required) Lid Screws Bottom Mounting Screws (Included, Quantity 5) (User Supplied, Quantity 3) Bottom Mounting Screws Lid Screw (Required) (User Supplied, Quantity 3) NEMA 1 NEMA 4 NEMA 4 NEMA 3R SubDrive75/100/150 SubDrive75/100/150 SubDrive2W SubDrive300 MonoDrive MonoDrive MonoDriveXT MonoDriveXT...
  • Page 31: Wiring Connections

    5. Feed the motor leads through the opening on the bottom right side of the unit and connect them to the terminal block positions marked GND (Green Ground Wire), Red, Yellow and Black (Figure 3). Figure 3: Motor Lead Connections Output to Motor NEMA 1 SubDrive75/100/150 MonoDrive MonoDriveXT Red Yel (Output) Output to Motor...
  • Page 32: Power And Pressure Sensor Connections

    22 AWG wire for distances up to 100 feet (30 m) from the pressure sensor. A 100-foot (30 m) section of pressure sensor cable is available from your local Franklin Electric distributor. (See Accessories section for details pg. 44.) 8. Verify that the SubDrive/MonoDrive unit is properly configured for the horsepower rating of the motor and pump being used.
  • Page 33: Pressure Sensor / Pressure Shut-Off Sensor

    SubDrive/MonoDrive Non-Adjustable Remove Rubber End Cap To Adjust Pressure Set at 100PSI Set at 100PSI With 7/32" Allen Wrench Pressure Sensor Quick Connect Boot Quick Connect Lead Connect Figure 5B: Pressure Shut-off Switch Figure 5A: Pressure Sensor (NSF61 rated) (NSF61 rated) 10.
  • Page 34: Special Instructions For Outdoor Installation

    Use appropriate weather-tight conduit fittings to maintain NEMA 4 rating. When replacing the cover, tighten all cover screws for maximum weather resistance. NEMA 4 NEMA 4 SubDrive75/100/150 SubDrive300 MonoDrive/MonoDriveXT Tighten Cover Tighten Cover...
  • Page 35: Strain Relief Installation Guide

    Strain Relief Sealing Body SubDrive75/100/150 and MonoDrive/XT • Carefully punch out the outermost knockout hole on the bottom side of the drive. See FIGURE 8 below. • Install the strain relief body and locking nut as shown in FIGURE 9 below.
  • Page 36: Start-Up And Operation

    SubDrive/MonoDrive Start-Up and Operation Apply power to the controller. A steady green light indicates that the SubDrive/MonoDrive has power but the pump is not running. The green light will flash continuously when the pump is running. Leaky Systems Leaky water systems might keep the controller running due to the accurate pressure sensing capability of the pressure sensor.
  • Page 37: Monodrive

    SubDrive/MonoDrive Specifications – MonoDrive/MonoDriveXT MonoDrive MonoDriveXT NEMA 1 (indoor) 587 020 3110 587 020 4110 NEMA 3R Model No. Not Available Not Available (indoor/outdoor) NEMA 4 (outdoor) 587 020 3114 587 020 4114 Voltage 190-260 VAC 190-260 VAC Phase In Single-Phase Single-Phase Frequency...
  • Page 38: Subdrive75

    SubDrive/MonoDrive Specifications – SubDrive75/100 SubDrive75 SubDrive100 NEMA 1 (indoor) Model 5870203380 Model 5870204100 Model No. NEMA 3R (indoor/outdoor) Not Available Not Available NEMA 4 (outdoor) Model 5870203384 Model 5870204104 Voltage 190-260 VAC 190-260 VAC Phase In Single-Phase Single-Phase Frequency 60/50 Hz...
  • Page 39: Subdrive150

    SubDrive/MonoDrive Specifications – SubDrive150/300 SubDrive150 SubDrive300 NEMA 1 (indoor) Model 5870204150 Not Available Model No. NEMA 3R (indoor/outdoor) Not Available Not Available NEMA 4 (outdoor) Model 5870204154 Model 5870206300 Voltage 190-260 VAC 220-260 VAC Phase In Single-Phase Single-Phase Frequency 60/50 Hz 60/50 Hz Current (max) 23 Amps (RMS)
  • Page 40: Subdrive2W

    SubDrive/MonoDrive Specifications - SubDrive2W SubDrive2W NEMA 1 (indoor) Not Available Model No. NEMA 3R (indoor/outdoor) Model 5870203223 NEMA 4 (outdoor) Not Available Voltage 207-260 VAC Phase In Single-Phase Frequency 60/50 Hz 14 Amps (RMS) Current (max) Input from (For circuit breaker sizing) Power Source Power Factor 0.7 (approximate)
  • Page 41: Mounting Dimensions

    SubDrive/MonoDrive Mounting Dimensions SubDrive75/100/150/MonoDrive/MonoDriveXT Indoor Enclosure (NEMA 1): Dimensions in Inches and Centimeters (approximate) NEMA 1 Dimension 5.25 (13.34) 11.5 (29.21) 5.5 (13.97) 9.75 (24.77) 12.8 (32.51) 14.0 (35.56) 1.12 (2.85) 0.5 (1.27) Conduit Sizes ¾ (1.91) SubDrive75/100/150/MonoDrive/MonoDriveXT Outdoor Enclosure (NEMA 4):...
  • Page 42 SubDrive/MonoDrive Mounting Dimensions SubDrive300 Outdoor Enclosure (NEMA 4): Dimensions in Inches and Centimeters (approximate) NEMA 4 Dimension 8.75 12.00 15.34 14.00 14.75 1.37 0.885 1.71 4.75 (22.23) (30.48) (15.24) (38.96) (35.56) (37.47) (3.48) (2.25) (4.34) (12.07) Conduit Size 1 (2.54) ½...
  • Page 43 SubDrive/MonoDrive Mounting Dimensions SubDrive2W Outdoor Enclosure (NEMA 3R): Status État Estado Dimensions in Inches and Centimeters (approximate) NEMA 3R Dimension 9.91 14.27 5.25 11.87 0.44 0.88 (25.17) (36.25) (15.74) (13.33) (13.97) (30.15) (1.12) (1.13) Conduit Size * Use knock-outs as required.
  • Page 44: Accessories

    SubDrive/MonoDrive Accessories Accessory Detail Used with Part Number Assists in preventing insects from entering and damaging Air Screen Kit SD2W 225 835 901 the internal components of the drive Allows a water system to alternate between two parallel Duplex Alternator All Models 585 001 2000 pumps controlled by separate SubDrives...
  • Page 45 SubDrive/MonoDrive Notes...
  • Page 46 SubDrive/MonoDrive Notes...
