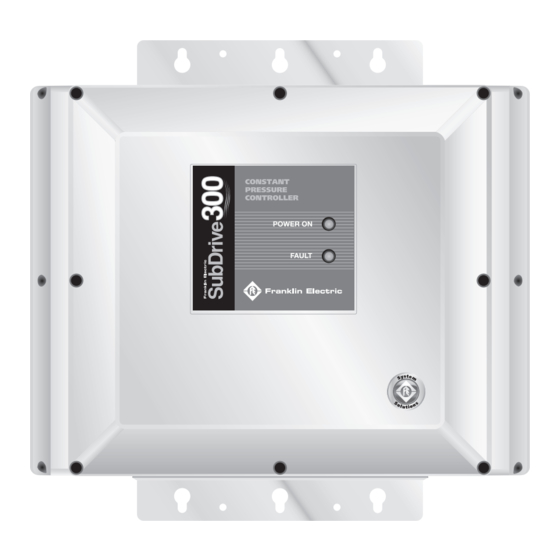

Franklin Electric SubDrive300 Installation Manual
Constant pressure water system
Hide thumbs
Also See for SubDrive300:
- Quick installation manual (35 pages) ,
- Installation manual (48 pages) ,
- Instruction manual (16 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Franklin Electric SubDrive300
Summary of Contents for Franklin Electric SubDrive300
- Page 1 Constant Pressure Water System SubDrive Installation Manual...
-
Page 2: Table Of Contents
Contents Description and Features ................4 Included Items ....................5 How It Works .....................6 Pump Sizing and Drive Confi guration ............8 Underload Sensitivity for Shallow Wells ............9 Before Getting Started ...................10 Controller Location Selection ..............11-12 Circuit Breaker and Wire Sizing ..............13 Quick Reference Guide ................ -
Page 3: Subdrive Models
Table 1: SubDrive Models Model Name Part Number Use with Motor Series SubDrive300 5870206300 (NEMA 4) 234 317 xxxx (5.0 Hp) -
Page 4: Description And Features
When used with the specifi ed Franklin Electric motor (see Table 1), the SubDrive eliminates pressure cycling associated with conventional water well systems and owners of private water well systems can enjoy “city-like”... -
Page 5: Included Items
Included Items A. Controller Unit E. Sensor Adjustment Tool B. Strain Relief Fittings F. Sensor Cable C. Pressure Shut-off G. Installation Manual Sensor and Boot H. Installation Guide D. Pressure Sensor and Boot I. Warranty Card... -
Page 6: How It Works
How It Works The Franklin Electric SubDrive300 is designed to be part of a system that consists of only four components: A. Standard Pump and Franklin Electric Motor. B. SubDrive Controller. C. Small Pressure Tank (for tank size, see Table 3). - Page 7 Motor Soft Start Normally, when there is a demand for water, the SubDrive300 will be operating to accurately maintain system pressure. Whenever the SubDrive300 detects that water is being used, the controller always “ramps up” the motor speed while gradually increasing voltage, resulting in a cooler motor and lower start-up current compared to conventional water systems.
-
Page 8: Pump Sizing And Drive Confi Guration
Flow GPM Drive Confi guration The SubDrive300 can also be set up to run a 5 Hp pump if desired, but the larger pump will still produce to the 5 Hp curve and may only be operated with a 5 Hp motor. To operate a different pump size, a DIP switch must be positioned to select the correct pump rating. -
Page 9: Underload Sensitivity For Shallow Wells
Underload Sensitivity for Shallow Wells The SubDrive300 controller is confi gured at the factory to ensure detection of Underload faults in a wide variety of pumping applications. In rare cases (as with certain pumps in shallow wells) this trip level may result in nuisance faults. -
Page 10: Before Getting Started
Use SubDrive300 only with Franklin Electric 4-inch submersible motors as specifi ed in this manual (see Table 1). Use of this unit with any other Franklin Electric motor or with motors from other manufacturers may result in dam- age to both motor and electronics. -
Page 11: Controller Location Selection
Controller Location Selection The SubDrive controller is intended for operation in ambient temperatures up to 125°F (51°C) at 230 VAC input. The following recommendations will help in selection of the proper location of the SubDrive unit: 1. A tank tee is recommended for mounting the tank, pressure sensor, pressure gauge, and pressure relief valve at one junction. - Page 12 CORRECT INCORRECT 4. For indoor or outdoor installations. 5. The SubDrive300 should only be mounted with the wiring end oriented downward. The controller should not be placed in direct sunlight or other locations subject to direct rain or snow. 6. The mounting location should have access to 230 VAC electrical supply and to the submersible motor wiring.
-
Page 13: Circuit Breaker And Wire Sizing
Circuit Breaker and Wire Sizing The minimum circuit breaker size and maximum allowable wire lengths for connection of motor to the SubDrive300 are given in the following table: Table 2: Minimum Breaker Size and Maximum Cable Length (in Feet) AWG Copper Wire Size... -
Page 14: Quick Reference Guide
Quick Reference Guide P/N 587 020 6300 Configura From Power Source Outpu PRESSURE SENSOR SHUT-OFF RELAY (Input) Sensor Connection PRESSURE PRESSURE SHUT-OFF SENSOR Power Supply From Circuit Breaker* NOTICE The Safety earth ground connections are marked at their terminals using the “... - Page 15 SubDrive300 (not to scale) Tank Precharge Sensor Cable Inflation Valve Supplied Pressure Tank ation Switch See Table 3 Pump Size (page 16) for 3.0 Hp recommened minimum tank size 5.0 Hp ut to Motor Pressure Pressure Shut-off Sensor Sensor...
-
Page 16: Pressure Tank
Table 3: Minimum Pressure Tank Size (Total Capacity) Pump Flow Rating Controller Model Minimum Tank Size Less than 12 gpm SubDrive300 8 gallon 12 gpm and higher SubDrive300 20 gallon The pressure tank pre-charge setting should be 70% of the system pressure sensor setting as indicated in the following table. -
Page 17: Installation Procedure
Installation Procedure 1. Disconnect electrical power at the main breaker. 2. Drain the system (if applicable). 3. Install the pressure sensor and pressure shut-off sensor at the pressure tank tee downstream of the pressure tank (the pressure tank should be between the pressure sensor and the pump). The sensors have a ¼-18 National Pipe Thread (NPT) connection. -
Page 18: Wiring Connections
WARNING Serious or fatal electrical shock may result from failure to connect the motor, the SubDrive300, metal plumbing and all other metal near the motor, or cable to the power supply ground terminal, using wire no smaller than motor cable wires. To reduce risk of electrical shock, disconnect power before working on or around the water system. -
Page 19: Power And Pressure Sensor Connections
SubDrive300 unit and press on the quick connect terminals. 8. Verify that the SubDrive300 unit is properly confi gured for the horsepower rating of the motor and pump being used. Please refer to the section on Pump Sizing for information on drive confi guration. -
Page 20: Pressure Sensor
12. The pressure sensor communicates the system pressure to the SubDrive300 controller. The sensor is preset at the factory to 50 psi, but can be adjusted by the installer using the following procedure: a. Remove the rubber end-cap (Figure 4A). -
Page 21: Start-Up And Operation
NOTE: Conventional private water systems intermittently fi ll a pressure tank as commanded by a standard pressure switch (e.g. 30 - 50 psi). The SubDrive300 maintains a constant pressure at the pressure sensor up to the maximum capability of the motor and pump. -
Page 22: Specifi Cations
Specifi cations Voltage 190-260 VAC Frequency 50/60 Hz Input from Current (max) 36 Amps (RMS) Power Source Power Factor 1.0 (constant) (single-phase) Power (idle) 65 Watts Power (max) 7200 Watts Voltage Adjusts with Frequency 30-80 Hz (3 Hp pump) Output to Motor Frequency Range 30-60 Hz (5 Hp pump) (three-phase) -
Page 23: Mounting Dimensions
Mounting Dimensions 15.34” 8.75” 14.75” 12.00” 4.75”... -
Page 24: Diagnostic Fault Codes
Diagnostic Fault Codes Should an application or system problem occur, built-in diagnostics will protect the system. The red “FAULT” light on the front of the SubDrive300 controller will fl ash a given number of times to indicate the nature of the fault. -
Page 25: System Troubleshooting Guide
System Troubleshooting Guide Symptom Possible Cause Corrective Action Verify motor connections. Motor is running backwards. See Figure 2 in the “Wiring Connections” section. Temperature in the controller Make sure there is at least 6” of room Water fl ow rate is too high. -
Page 26: Underload Smart Reset
Underload Smart Reset If a motor Underload fault condition occurs, the most likely cause is an overpumped or dry well. To allow the well to recover, the SubDrive300 controller will wait 30 seconds to 5 minutes, determined by duration of the previous run time, before restarting the motor. - Page 27 TOLL-FREE HELP FROM A FRIEND Franklin Electric Submersible Service Hotline 800-348-2420...
- Page 28 400 E. Spring Street Bluffton, IN 46714 Tel: 260-824-2900 Fax: 260-824-2909 www.franklin-electric.com 225286101 Rev. 1 M1491 11.05...
