Summary of Contents for Denver SCO-80100

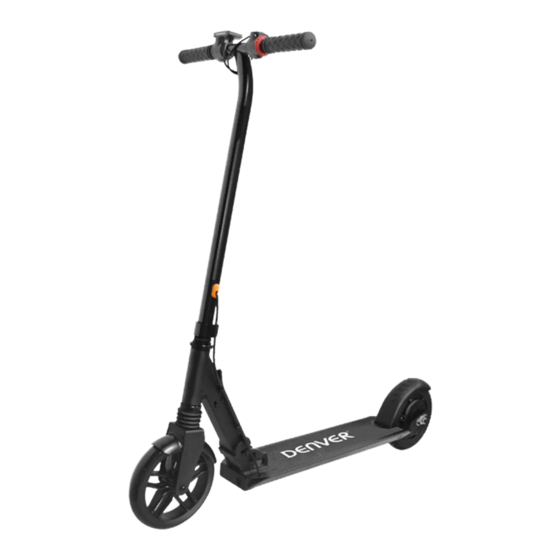

- Page 1 Original Instruction SCO-80100 facebook.com/denverelectronics...
- Page 2 Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of E-scooter. Before using this E-scooter, familiarize yourself with how to operate, so that you can keep the E-Scooter in the best condition possible. This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 3: Table Of Contents
Table of Contents Table of Contents…………………………………..…………………………………………..2 Product and Accessories…………………………………………………………………….3 Folding steps…………………………………………………………………………………..4-5 Handlebar assembly…………………………………………………………………………..5 Charger connection……………………………………………………………………………6 Intended Use………………………………………………………………………………..……7 Safety Instruction………………………………………………………………………..….7-8 Maintenance…………………………………………………………………………………9-10 Instrument menu…………………………………………………………………………11-12 Operation Guide……………………………………………………………………………..12 List of parameters……………………………………………………………………………..13 E-scooter safe parking……………………………………………………………………….14 Safe transportation……………………………………………………………………………14 Warnings……………………………………………………………………………………...14-16... -
Page 4: Product And Accessories
Product and Accessories Mechanical brake Left Clasp Electric brake Accelerator... -
Page 6: Folding Steps
Folding steps 1. Unfolding: 1) Stand the E-scooter on its wheels, press the unlock clasp. 2) Raise the handle slowly. 3) The E-scooter is unfolded as soon as you hear the rod click into place. 2. Folding Hold the clasp and pull it outward Press the front tube of E-scooter downward (Attention: The limit position must be put right.) The rod clicks audibly into place. - Page 7 4) Fold/Unfold Handle Fold-Unfold Position...
-
Page 8: Handlebar Assembly
Move handle down to fold the e-scooter Move handle up to unfold the e-scooter The knob must be set to RIDING when riding for safety issue to prevent unintended folding the e- scooter. Handlebar assembly Parts inside the packaging: two handlebars 2) Change display angle: Loosen screw on the handlebar, rotate the axle to make the... -
Page 10: Charger Connection
Figure (2) Figure (1) Charger connection Plug the adapter into the charging port... -
Page 12: Intended Use
Intended Use The e-scooter is neither a means of transport nor sports equipment, rather a device that the operator can ride relaxed. The E-scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 100 kg. - Page 13 Before riding the E-scooter, please check that all parts are working as supposed to. If any loose parts, abnormal noise, reduced battery life etc. are detected, please contact the place of purchase for product service and warranty. Do not repair the E-scooter yourself. Inspect the rear tire, rear brake, and brake pad according to Section 7 of the maintenance specification in this operating instructions.
-
Page 14: Maintenance
Maintenance Storage and cleaning • If your E-scooter gets dirty, please clean it with a damp cloth. (you can use a stiff brush first to get the worst dirt off and then use a cloth afterwards to clean it.). It is also possible to use a little toothpaste if the dirt is stuck. - Page 15 Please notice: Even fully charged batteries will run out of power if the E-Scooter is not used for a period of time. Expect between 90 and 120 days in off mode if batteries are fully charged. If only partially charged, this period of time is lower. Please make sure to charge the batteries before they are 100% out of power, to avoid damaging the battery cells.
-
Page 16: Instrument Menu
• All parts and materials' quality of escooter can not be changed, modifications are not allowed Instrument menu For better operation, please read the instructions carefully. Speed up Button Power Button... - Page 17 Speed down Button Electric Brake Button Accelerator Button 8.1 Button Power Button, ▲ Speed up Button and ▼ Speed down Button. There are three buttons in the display, 8.2 Operation Speed Battery...
- Page 18 Gear Time Single Mileage Power On: Long press the power button until the display lights up. Power Off: Long press the power button until the display goes out and the system is off. 1. Battery power display: it shows the current remaining battery capacity. 2.
-
Page 19: Operation Guide
▲ ▼ Important: Press and buttons at the same time,then press the power button and select P3 mode, when parameter value is 0, it will start with zero. When parameter value is 1, it will start with non-zero. (Zero start: When starting, the E-scooter in a stationary case, press the accelerator to start driving.) (Non-zero start: When starting, the scooter is static, press the accelerator and the E-scooter does not work, push the e-scooter manually to start driving , the E-scooter works. - Page 20 1：Press Speed up Button and Speed down Button to adjust speed level 2：Press the accelerator button to accelerate, so you can drive； 3：Press brake button to brake； 4：Press the accelerator and electric brake button at the same time, the scooter will automatically brake;...
-
Page 21: List Of Parameters
Motor Power (W) Emission sound pressure Emissions < 70 db (A). level (DB) Rated input voltage (V) 100‐240 Rated output voltage (v) 29.4 Battery Charger Rated current (A) Charging Time(h) E-scooter Model: SCO-80100 Input: 100V-240V~, 50/60Hz, 1.5A(Max) Output: 29.4V 1.5A... - Page 22 Max Speed: 20km/h Weight: 9.9 kg Year Of Construction: 2018 Max Load: 100kg Battery: 25.2V/4Ah Power Consumption: 300W ≤ Please charge the e-scooter with the original charger XHK-922-29415. DENVER ELECTRONICS A/S Omega 5A Soeften DK-8382 Hinnerup Denmark denver-electronics.com...
-
Page 23: E-Scooter Safe Parking
11. E-scooter safe parking Once you have stopped the E-scooter, get off it and press the side stand down with your right foot to support the E-scooter. The side stand is located on the left-hand side of the E-scooter below the foot board. - Page 24 Maximum capacity: 100kg. Do not try to make a turn too fast. If the E-scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. Use the device only at temperatures between -10 °C and +45 °C. •...
- Page 25 While riding, your feet must always be on the foot board. • The E-scooter can accommodate only one person. • Do not start or stop abruptly. • Avoid riding on steep slopes. • Stop riding the E-scooter if you hit against a solid object (such as a wall or other structure) with it. •...
- Page 26 Charge the device only at temperatures between 0 °C and +45 °C. • When charging at lower or higher temperatures, there is a risk that the battery performance will • be reduced; therefore, there is a potential risk of injuries and material damage. Store and charge the device in an open, dry area away from combustible materials.
- Page 27 If you open the E-scooter casing, the warranty will become null and void. • • Always keep the protective cap plugged onto the DC connector! • Only take off the cap when charging the balance scooter! • After charging finished take out the DC plug and put on the protective cap onto the DC connector again! •...
- Page 28 ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
- Page 29 DK‐8382 Hinnerup Denmark facebook.com/denverelectronics...
- Page 30 The engine in the front wheel will this way help to activate the charging function and it will charge normally. (fully charge takes 2-3 hours if using this way) For "MD DOC" document, please refer to a separated leaflet. Please enter: www.denver-electronics.com to obtain the electronic version of the manual.
