Original Instruction

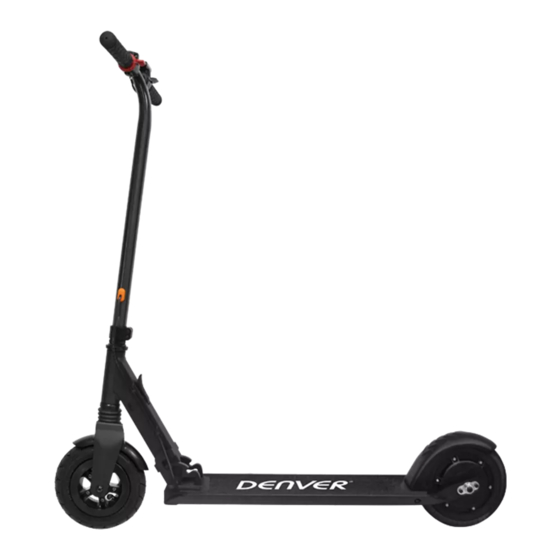

SCO-80110
facebook.com/denverelectronics
Before operating this vehicle, read all the instructions for safe assembly and operations. User's manual can guide
you through the functions and usage of E-scooter. Before using this E-scooter, familiarize yourself with how to
operate, so that you can keep the E-Scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons with reduced physical,
1
Advertisement
Table of Contents
Related Manuals for Denver SCO-80110
Summary of Contents for Denver SCO-80110

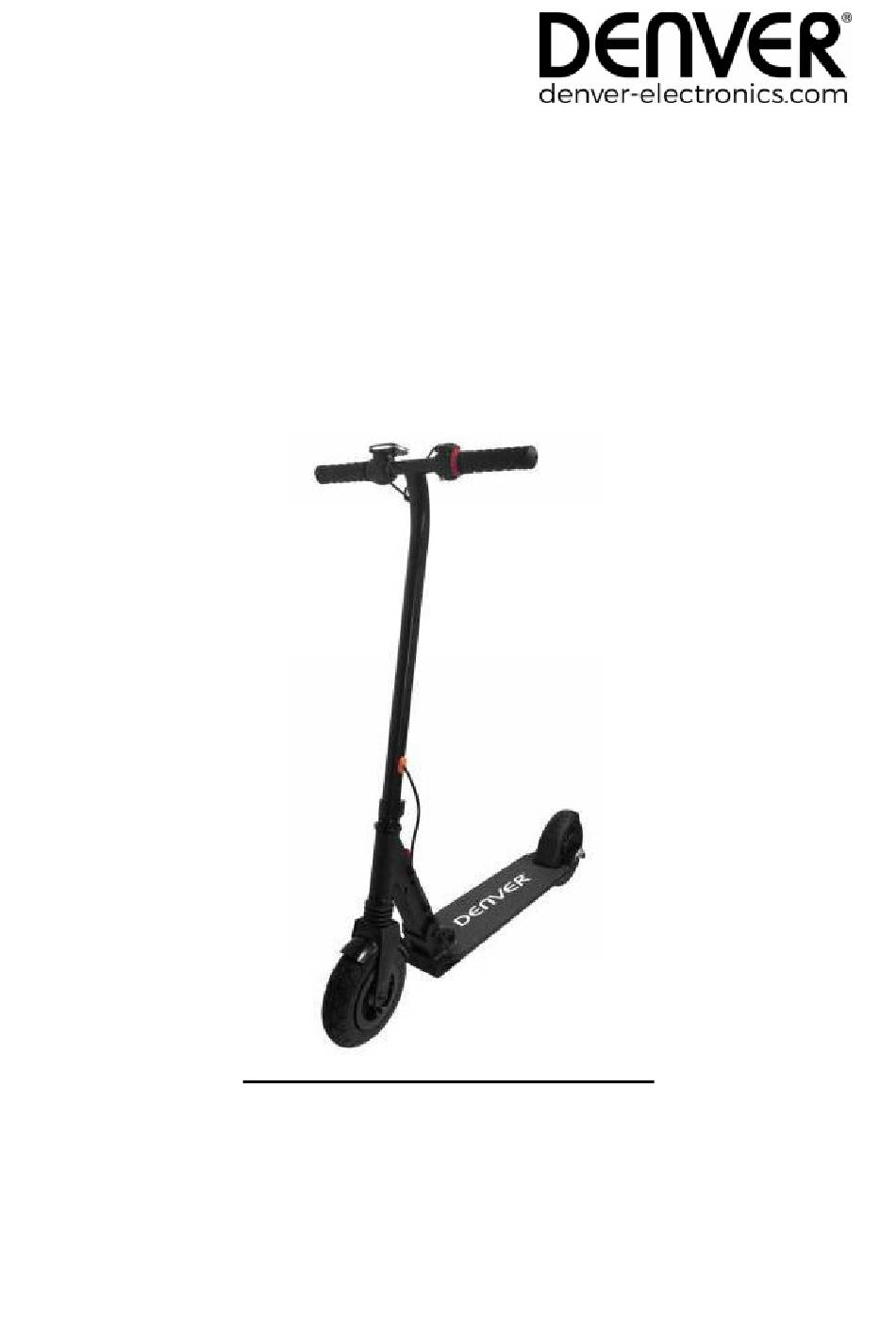

- Page 1 Original Instruction SCO-80110 facebook.com/denverelectronics Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of E-scooter. Before using this E-scooter, familiarize yourself with how to operate, so that you can keep the E-Scooter in the best condition possible.
- Page 2 sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Version 1.0...
-
Page 3: Table Of Contents
Table of Contents Table of Contents…………………………………..…………………………………………..2 Product and Accessories…………………………………………………………………….3 Folding steps…………………………………………………………………………………..4-5 Handlebar assembly…………………………………………………………………………..5 Charger connection……………………………………………………………………………6 Intended Use………………………………………………………………………………..……7 Safety Instruction………………………………………………………………………..….7-8 Maintenance…………………………………………………………………………………9-10 Instrument menu…………………………………………………………………………11-12 Operation Guide……………………………………………………………………………..12 List of parameters……………………………………………………………………………..13 E-scooter safe parking……………………………………………………………………….14 Safe transportation……………………………………………………………………………14 Warnings……………………………………………………………………………………...14-16... -
Page 4: Product And Accessories
Product and Accessories Accelerator Electric brake Clasp Mechanical brake Right Left... -
Page 5: Folding Steps
Folding steps 1. Unfolding: 1) Stand the E-scooter on its wheels, press the unlock clasp. 2) Raise the handle slowly. 3) The E-scooter is unfolded as soon as you hear the rod click into place. 2. Folding Hold the clasp and pull it outward Press the front tube of E-scooter downward (Attention: The limit position must be put right.) The rod clicks audibly into place. -
Page 6: Handlebar Assembly
4) Dual action safety knob Fold-Unfold Position Press the red button to fold or unfold the e-scooter. Rotate the safety knob to position “Folding” on left or right, you can press the red button to fold your e-scooter. Rotate the safety knob to “RIDING” position, you can start your driving. The knob must be set to RIDING when riding for safety issue to prevent unintended folding the e- scooter. - Page 7 Figure (1) Figure (2)
-
Page 8: Charger Connection
Charger connection Plug the adapter into the charging port... -
Page 9: Intended Use
Intended Use The e-scooter is neither a means of transport nor sports equipment, rather a device that the operator can ride relaxed. The E-scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 100 kg. - Page 10 loose. This is because the distance between the brake pad and the rear wheel becomes too small, possibly leading to a blocked rear wheel. Avoid applying too much force or stepping on the rear fender permanently. This may cause the fender to loosen or damage the spring holding the fender.
-
Page 11: Maintenance
Maintenance Storage and cleaning If your E-scooter gets dirty, please clean it with a damp cloth. (you can use a stiff brush first to get the worst dirt off and then use a cloth afterwards to clean it.). It is also possible to use a little toothpaste if the dirt is stuck. - Page 12 Please notice: Even fully charged batteries will run out of power if the E-Scooter is not used for a period of time. Expect between 90 and 120 days in off mode if batteries are fully charged. If only partially charged, this period of time is lower. Please make sure to charge the batteries before they are 100% out of power, to avoid damaging the battery cells.
-
Page 13: Instrument Menu
• When self-locking nuts and other self- locking fixings may lose their effctiveness • All parts and materials' quality of escooter can not be changed, modifications are not allowed Instrument menu For better operation, please read the instructions carefully. Speed up Button Power Button Speed down Button... - Page 14 Button. 8.2 Operation Speed Battery Gear Time Single Mileage Power On: Long press the power button until the display lights up. Power Off: Long press the power button until the display goes out and the system is off. 1. Battery power display: it shows the current remaining battery capacity.
-
Page 15: Operation Guide
deceleration (the deceleration is relevant to the formation of the press, and pushing too hard can not increase the braking force and may cause damage to the brake dial). Total mileage clearance: press ▲ and ▼ buttons at the same time , then press the power button to switch on the E-scooter, and the total mileage will be cleared. - Page 16 1：Press Speed up Button and Speed down Button to adjust speed level 2：Press the accelerator button to accelerate, so you can drive； 3：Press brake button to brake； 4：Press the accelerator and electric brake button at the same time, the scooter will automatically brake;...
-
Page 17: List Of Parameters
Battery capacity (mAH) 4000 Motor Motor Power (W) Emission sound pressure Emissions < 70 db (A). level (DB) Rated input voltage (V) 100‐240 Rated output voltage (v) 29.4 Battery Charger Rated current (A) Charging Time(h) E-scooter Model: SCO-80110 Input: 100V-240V~, 50/60Hz, 1.5A(Max) - Page 18 Output: 29.4V 1.5A Max Speed: 20km/h Weight: 9.9 kg Year Of Construction: 2018 Max Load: 100kg Battery: 25.2V/4Ah Power Consumption: ≤ 300W Please charge the e-scooter with the original charger XHK-922-29415. DENVER ELECTRONICS A/S Omega 5A Soeften DK-8382 Hinnerup Denmark denver-electronics.com...
-
Page 19: E-Scooter Safe Parking
11. E-scooter safe parking Once you have stopped the E-scooter, get off it and press the side stand down with your right foot to support the E-scooter. The side stand is located on the left-hand side of the E-scooter below the foot board. - Page 20 • Avoiding damage due to overload. Maximum capacity: 100kg. Do not try to make a turn too fast. If the E-scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. • Use the device only at temperatures between -10 °C and +45 °C. 13.4.
- Page 21 • Make sure you have a clear vision in front of you to ride the E-scooter safely. • While riding, your feet must always be on the foot board. • The E-scooter can accommodate only one person. • Do not start or stop abruptly. •...
- Page 22 • The product must not be charged over extended periods. • Always keep an eye on the device throughout the charging cycle. • Charge the device only at temperatures between 0 °C and +45 °C. • When charging at lower or higher temperatures, there is a risk that the battery performance will be reduced;...
- Page 23 otherwise, the electronics/batteries of the device could be permanently damaged. There is a risk of injury. • If you open the E-scooter casing, the warranty will become null and void. • Always keep the protective cap plugged onto the DC connector! •...
- Page 24 ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
- Page 25 DENVER ELECTRONICS A/S Omega 5A, Soeften DK‐8382 Hinnerup Denmark facebook.com/denverelectronics...
- Page 26 The engine in the front wheel will this way help to activate the charging function and it will charge normally. (fully charge takes 2-3 hours if using this way) For "MD DOC" document, please refer to a separated leaflet. Please enter: www.denver-electronics.com to obtain the electronic version of the manual.
