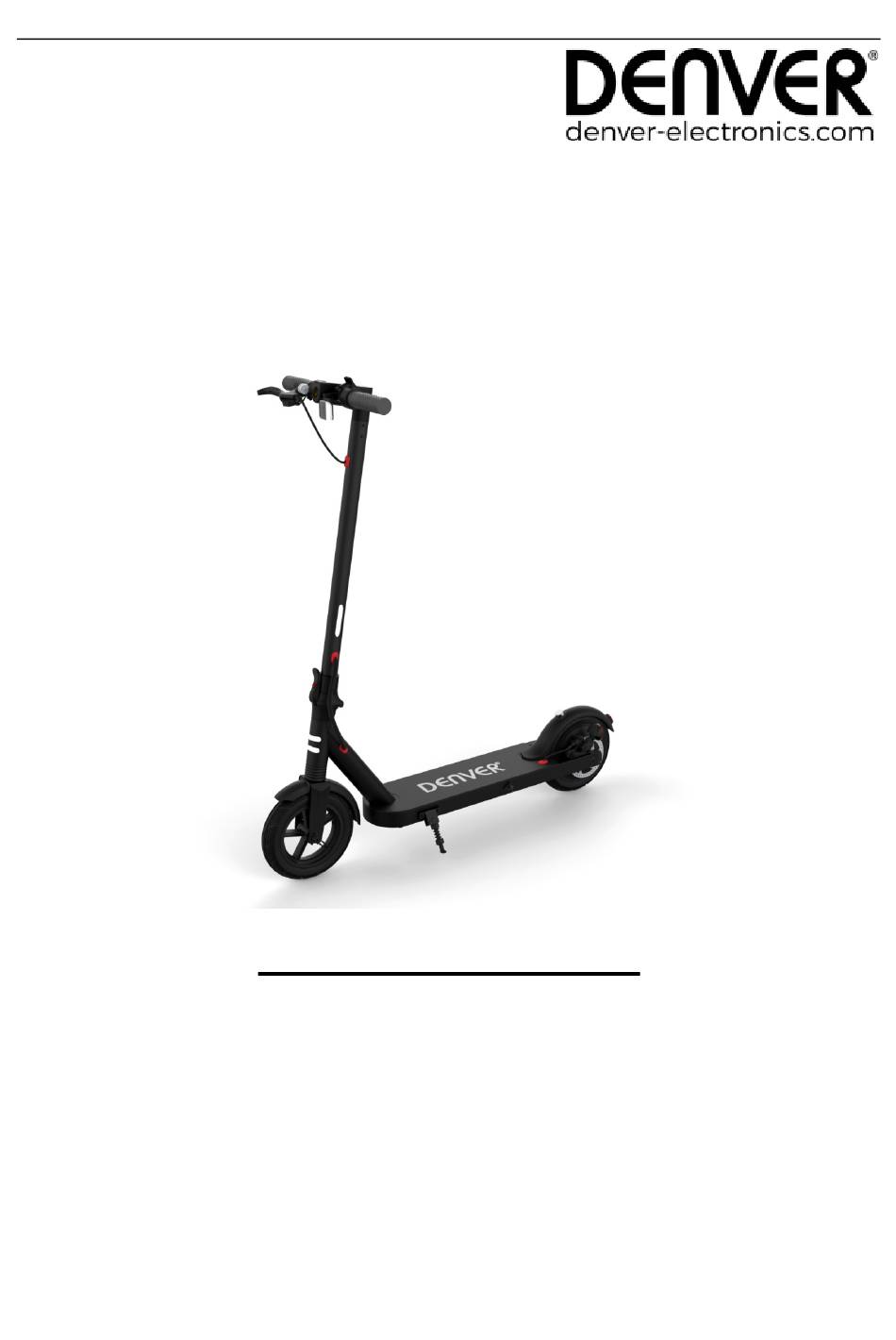

User manual
SCO-85350
facebook.com/denverelectronics
Before operating this vehicle, read all the instructions for safe assembly and operations. User's manual can guide you
through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to
operate, so that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Version 1.0
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Denver SCO-85350
Summary of Contents for Denver SCO-85350
- Page 1 User manual SCO-85350 facebook.com/denverelectronics Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.
- Page 2 Table of Contents...
-
Page 3: Product And Accessories
1 Product and Accessories Important! This electric scooter must be charged and stored in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged. Always use the supplied power adapter to charge the electric scooter. - Page 4 Screw for handlebar attachment x 4 Allen key x 2 charger...
- Page 5 2 Unfolding and folding the scooter Unfolding the scooter 1）Place the electric scooter on its wheels like below. Unlock the hook on the handlebar. Pull up the handle in a gentle way. Raise the handle slowly. Close the lock lever located on the lower part of the handlebar support tube. The electric scooter is unfolded as soon as you hear the rod clicks into place.
- Page 6 Folding the scooter 1. Release the release lever located on the lower part of the support tube of the handlebars. 2. Fully open the release lever. 3. Open the scooter by accompanying the handlebar tube downwards. 4. Hook the folded tube onto the appropriate support.
-
Page 7: Assembling The Device
Assembling the device Before using the scooter it is necessary to install the handlebar on the frame main vehicle. 1). Insert the handlebar into the vehicle frame. 2). After matching the holes in the handlebar with those of the frame, insert the screws and tighten them well;... -
Page 8: Charging The Scooter
4 Charging the scooter Connect the supplied power adapter to the charging port of the electric scooter. -
Page 9: Charging Port
Charging port... -
Page 10: Intended Use
5 Intended Use The Electric scooter is neither a means of transport nor sports equipment, but a device for personal entertainment. The Electric scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 120 kg. The other parameters for the permissible operation of the Electric scooter are defined in the section (“10. -
Page 11: Storage And Cleaning
Avoid constant braking. As a result, the tires will not only wear off, but also become hot. This will soften the rubber and it will no longer have the same grip on the road as usual. Do not touch the tire after braking. -
Page 12: Operational Control
Do not overcharge and discharge the battery. Make sure that the battery is charged at regular intervals, even if you do not use the electric scooter for a long time. This is to prevent damage to the battery caused by low voltage over an extended period. Please notice: Even fully charged batteries will run out of power if the electric scooter is not used for a period of time. - Page 13 8.1 8.1 Control and display Speed Gear level Front /Back LED Light Battery level...
- Page 14 8.2 Button and speed transfer Only power buttons in the display, press”Power” button with 5s, the scooter power on! Press one time to turn on /off the front LED light. Press “power” 2 times constantly to tranfer the speed with 3 gear, ECO: 6KM/H, D: 12KM/H, S: 20KM/H You have to manually move the Electric scooter with your foot before the accelerator button works.
- Page 15 Press the Electric brake or Disc brake to brake. When you press the accelerator and electric brake button at the same time, the Electric scooter will automatically brake For safety, the rear wheel brake system must be used when driving at high speed. When driving at night, press the headlight switch button to turn on the headlight.
-
Page 17: List Of Parameters
Power adapter Rated input voltage (V) 100‐240 Rated output voltage (v) Rated current (A) Charging Time(h) Electric scooter Model: SCO-85350 Input: 100V-240V~, 50/60Hz, 2.5A(Max) Output: 42V Max Speed: 20km/h Weight: 14.2kg Year Of manufacture: 2019 Max Load: 120kg Battery: 36V/6Ah Power Consumption: ≤... -
Page 18: Safe Transportation
11 Electric scooter safe parking Once you have stopped the Electric scooter, get off it and press the side stand down with your right foot to support the Electric scooter. The side stand is located on the left-hand side of the Electric scooter below the foot board. -
Page 19: Range Per Charge
Do not try to make a turn too fast. WARNING Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. Use the device only at temperatures between -10 °C and +45 °C. ●... - Page 20 Avoid riding on steep slopes. ● Stop riding the Electric scooter if you hit a solid object (such as a wall or other structure) with it. ● Do not ride in dimly lit or dark places. ● Ride the Electric scooter at your own risk, we assume no liability for accidents or damage. ●...
- Page 21 The Electric scooter may not be used by anyone under age of 14 years ● Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S...
- Page 22 All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city. DENVER ELECTRONICS A/S Omega 5A, Soeften DK‐8382 Hinnerup Denmark...
- Page 23 Use your legs to give speed, for around 100 m, and then connect the charger. The engine in the front wheel will this way help to activate the charging function and it will charge normally. (fully charge takes 3 hours if using this way) Please enter: www.denver-electronics.com to obtain the electronic version of the manual.
- Page 24 (20-50% charged). Not fully charged. • When shipped from the factory, the product has often been partially charged. Keep the product in a partially charged state, until it is going to be used. DENVER ELECTRONICS A/S Omega 5A, Soeften, 8382 Hinnerup, Denmark www.denver-electronics.com...
- Page 25 DENVER ELECTRONICS A/S EC Declaration of Conformity (Machinery Directive) The undersigned Company Name: DENVER ELECTRONICS A/S Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark certify that the design and manufacturing of this product Product Brand Name: DENVER Product Model No.: SCO-85350...
- Page 26 Inter Sales A/S • Omega 5A, Soeften • 8382 Hinnerup • Denmark • Tel: +45 86 22 61 00 • Fax: +45 86 22 81 00 Homepage: www.denver-electronics.com • A/S Reg. No. 223906 • Vat. No. DK18831678...
