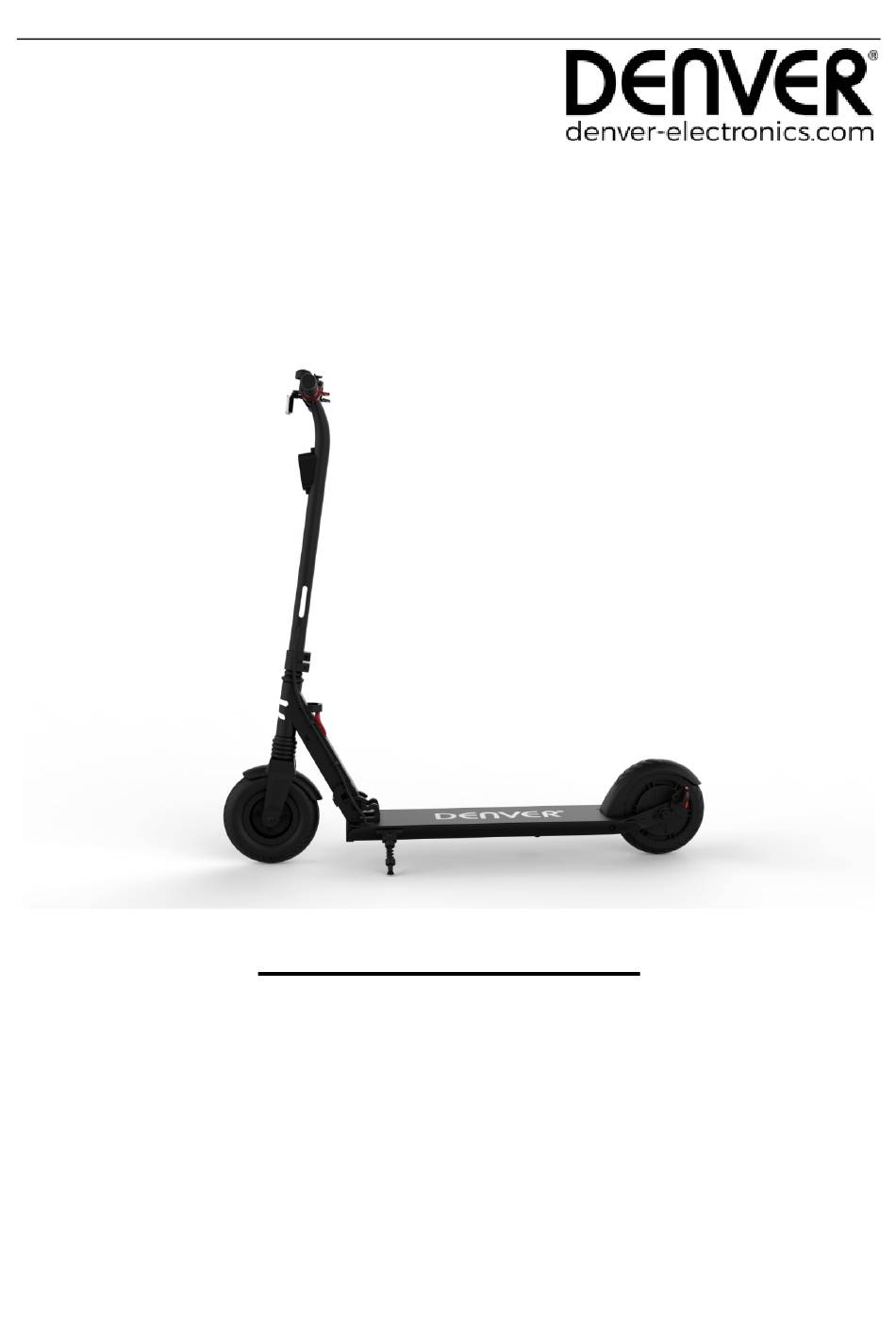

User manual
SCO-80130
facebook.com/denverelectronics
Before operating this vehicle, read all the instructions for safe assembly and operations. User's manual can guide you
through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to
operate, so that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Version 1.0
1
Advertisement
Table of Contents
Related Manuals for Denver SCO-80130LIME
Summary of Contents for Denver SCO-80130LIME
- Page 1 User manual SCO-80130 facebook.com/denverelectronics Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.
- Page 2 Table of Contents...
-
Page 3: Product And Accessories
1 Product and Accessories Important! This electric scooter must be charged and stored in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged. Always use the supplied power adapter to charge the electric scooter. - Page 5 2 Unfolding and folding the scooter Unfolding the scooter 1) Position the electric scooter on its wheels like below. 2) Push the security lock up, then pull the red unlock clasp as indicated in the arrow below. 3) Raise the handle slowly. 4) The electric scooter is unfolded as soon as you hear the rod clicks into place.
- Page 6 1) Push the security lock up, then pull the red unlock clasp as indicated in the arrow below. 2) Press the front tube of the electric scooter downward. 3) The rod clicks audibly into place.
-
Page 7: Handle Bar Assembly
3 Handle bar assembly Parts inside the packaging: two handlebars Change display angle: Loosen the screw on the handle bar, and rotate the axle to make the handlebar meter screen upwards while the and display screen turn inwards in a horizontal level. -
Page 8: Charging The Scooter
4 Charging the scooter Connect the supplied power adapter to the charging port of the electric scooter. Charging port... -
Page 9: Intended Use
5 Intended Use The Electric scooter is neither a means of transport nor sports equipment, but a device for personal entertainment. The Electric scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 100 kg. The other parameters for the permissible operation of the Electric scooter are defined in the section (“10. -
Page 10: Storage And Cleaning
Avoid constant braking. As a result, the tires will not only wear off, but also become hot. This will soften the rubber and it will no longer have the same grip on the road as usual. Do not touch the tire after braking. - Page 11 Do not overcharge and discharge the battery. Make sure that the battery is charged at regular intervals, even if you do not use the electric scooter for a long time. This is to prevent damage to the battery caused by low voltage over an extended period. Please notice: Even fully charged batteries will run out of power if the electric scooter is not used for a period of time.
-
Page 12: Control And Display
7.1 7.1 Button ▲ ▼ There are three buttons in the display, Power button, Speed up button and Speed down button. 7.2 7.2 Control and display Single mileage Speed Time Gear level Battery level Power On: Long press the power button until the display lights up. Power Off: Long press the power button until the display goes out and the system is off. - Page 13 ▲ ▼ Change the gear: Short press or button to change the gear level (Gear 3 is fast speed, Gear 2 is medium speed, and Gear 1 is slow speed). Acceleration: Gently press the accelerator button to speed up (The depth of the press is related to the gear level you have set).
- Page 14 Front LED light ▲ The scooter is equipped with a front LED light. Power on the scooter, then press and hold the button ▲ (speed up button) for 3 seconds to turn on the front LED light. Press and hold the button (speed up button) for 3 seconds again to turn off the front LED light.
- Page 15 3) After loading the batteries, attach the LED lamp back to the scooter. Press “PUSH” to turn the LED lamp on or off. Press “PUSH” a first time to make the LED lamp flash. Press “PUSH” a second time to make the LED lamp light up constantly. Press “PUSH”...
-
Page 16: List Of Parameters
Max Speed: 20km/h Weight: 10.58 kg Year Of manufacture: 2019 Max Load: 100kg Battery: 36V/4Ah Power Consumption: ≤ 300W Always charge the electric scooter with the supplied power adapter: XHK-970-42020 DENVER ELECTRONICS A/S Omega 5A Soeften DK-8382 Hinnerup Denmark www.denver-electronics.com... -
Page 17: Safe Transportation
10 Electric scooter safe parking Once you have stopped the Electric scooter, get off it and press the side stand down with your right foot to support the Electric scooter. The side stand is located on the left-hand side of the Electric scooter below the foot board. -
Page 18: Range Per Charge
Do not try to make a turn too fast. WARNING Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. Use the device only at temperatures between -10 °C and +45 °C. ●... - Page 19 Avoid riding on steep slopes. ● Stop riding the Electric scooter if you hit a solid object (such as a wall or other structure) with it. ● Do not ride in dimly lit or dark places. ● Ride the Electric scooter at your own risk, we assume no liability for accidents or damage. ●...
- Page 20 The Electric scooter may not be used by anyone under age of 14 years ● Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S...
- Page 21 All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city. DENVER ELECTRONICS A/S Omega 5A, Soeften DK‐8382 Hinnerup Denmark...
- Page 22 Use your legs to give speed, for around 100 m, and then connect the charger. The engine in the front wheel will this way help to activate the charging function and it will charge normally. (fully charge takes 3 hours if using this way) Please enter: www.denver-electronics.com to obtain the electronic version of the manual.
- Page 23 (20-50% charged). Not fully charged. • When shipped from the factory, the product has often been partially charged. Keep the product in a partially charged state, until it is going to be used. DENVER ELECTRONICS A/S Omega 5A, Soeften, 8382 Hinnerup, Denmark www.denver-electronics.com...
- Page 24 DENVER ELECTRONICS A/S EC Declaration of Conformity (Machinery Directive) The undersigned Company Name: DENVER ELECTRONICS A/S Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark certify that the design and manufacturing of this product Product Brand Name: DENVER Product Model No.: SCO-80130...
- Page 25 Inter Sales A/S • Omega 5A, Soeften • 8382 Hinnerup • Denmark • Tel: +45 86 22 61 00 • Fax: +45 86 22 81 00 Homepage: www.denver-electronics.com • A/S Reg. No. 223906 • Vat. No. DK18831678...
