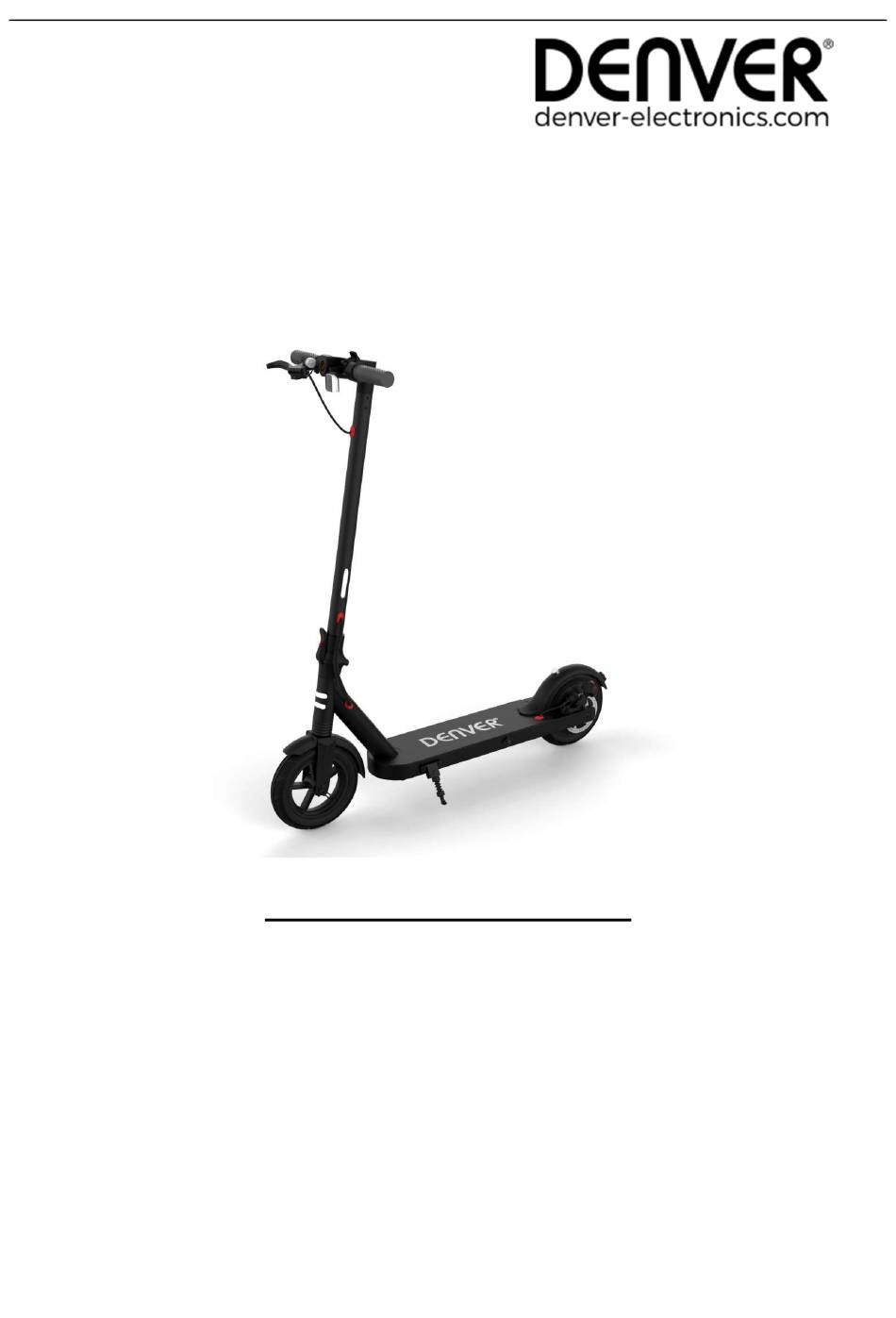

User manual
SCO-85350
facebook.com/denverelectronics
Before operating this vehicle, read all the instructions for safe assembly and operations. User's manual can guide you
through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to
operate, so that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Version 1.0
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Denver SCO-85350LIME
Summary of Contents for Denver SCO-85350LIME
- Page 1 User manual SCO-85350 facebook.com/denverelectronics Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter. Before using this Electric scooter, familiarize yourself with how to operate, so that you can keep the Electric scooter in the best condition possible.
-
Page 2: Table Of Contents
Table of Contents Product and Accessories ........................3 Unfolding and folding the scooter ......................5 Assembling the device ..........................6 Charging the scooter ..........................7 Intended Use ............................8 Safety Instruction ............................ 8 Maintenance ............................9 Operational control ........................... 11 Electric scooter riding ........................... -
Page 3: Product And Accessories
1 Product and Accessories Important! This electric scooter must be charged and stored in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged. Always use the supplied power adapter to charge the electric scooter. - Page 4 Screw for handlebar Allen key x 2 Valve extension for air attachment x 4 charger tube...
-
Page 5: Unfolding And Folding The Scooter
2 Unfolding and folding the scooter Unfolding the scooter 1）Place the electric scooter on its wheels like below. Unlock the hook on the handlebar. 2) Pull up the handle in a gentle way. Raise the handle slowly. Close the lock lever located on the lower part of the handlebar support tube. 3) The electric scooter is unfolded as soon as you hear the rod clicks into place. -
Page 6: Assembling The Device
3 Assembling the device Before using the scooter it is necessary to install the handlebar on the frame main vehicle. 1). Insert the handlebar into the vehicle frame. 2). After matching the holes in the handlebar with those of the frame, insert the screws and tighten them well;... -
Page 7: Charging The Scooter
4 Charging the scooter Connect the supplied power adapter to the charging port of the electric scooter. Charging port... -
Page 8: Intended Use
5 Intended Use The Electric scooter is neither a means of transport nor sports equipment, but a device for personal entertainment. The Electric scooter for domestic use only and only by a person aged at least 14 with a maximum weight of 120 kg. The other parameters for the permissible operation of the Electric scooter are defined in the section (“10. -
Page 9: Maintenance
Avoid applying too much force or stepping on the rear fender permanently. This may cause the fender to loosen or damage the spring holding the fender. As a result, the brake pad constantly touches the wheel and the motor temperature increases due to the additional resistance. - Page 10 Keep the Electric scooter away from open flame or other sources of heat to prevent the battery from getting too hot. Also make sure not to leave the electric scooter at freezing temperatures. Both heat and excessive cold can cause the battery to discharge. Please avoid draining the batteries 100%.
-
Page 11: Operational Control
8 Operational control For better operation, please read the instructions carefully. 8.1 Control and display Speed Gear level Front /Back LED Light Battery level 8.2 Button and speed transfer Only power buttons in the display, press”Power” button with 5s, the scooter power on! Press one time to turn on /off the front LED light. -
Page 12: Electric Scooter Riding
9 Electric scooter riding Press “Power” buttons to adjust speed level. You have to manually move the Electric scooter with your foot before the accelerator handle are working. Press the accelerator button to accelerate, so you can drive. Press the Electric brake or Disc brake to brake. When you press the accelerator and electric brake button at the same time, the Electric scooter will automatically brake For safety, the rear wheel brake system must be used when driving at high speed. -
Page 13: List Of Parameters
Output: 42V Max Speed: 20km/h Weight: 14.2kg Year Of manufacture: 2019 Max Load: 120kg Battery: 36V/6Ah Power Consumption: ≤ 350W Always charge the electric scooter with the supplied power adapter: XHK-970-42020 DENVER ELECTRONICS A/S Omega 5A Soeften DK-8382 Hinnerup Denmark www.denver-electronics.com... -
Page 14: Electric Scooter Safe Parking
11 Electric scooter safe parking Once you have stopped the Electric scooter, get off it and press the side stand down with your right foot to support the Electric scooter. The side stand is located on the left-hand side of the Electric scooter below the foot board. - Page 15 WARNING Do not try to make a turn too fast. WARNING Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. Use the device only at temperatures between -10 °C and +45 °C. ●...
- Page 16 While riding, your feet must always be on the foot board. ● The Electric scooter can accommodate only one person. ● Do not start or stop abruptly. ● Avoid riding on steep slopes. ● Stop riding the Electric scooter if you hit a solid object (such as a wall or other structure) with it. ●...
- Page 17 When charging at lower or higher temperatures, there is a risk that the battery performance will be ● reduced. Therefore, there is a potential risk of injuries and material damage. Store and charge the device in an open, dry area away from combustible materials. ●...
- Page 18 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.
- Page 19 Use your legs to give speed, for around 100 m, and then connect the charger. The engine in the front wheel will this way help to activate the charging function and it will charge normally. (fully charge takes 3 hours if using this way) Please enter: www.denver-electronics.com to obtain the electronic version of the manual.
- Page 20 (20-50% charged). Not fully charged. • When shipped from the factory, the product has often been partially charged. Keep the product in a partially charged state, until it is going to be used. DENVER ELECTRONICS A/S Omega 5A, Soeften, 8382 Hinnerup, Denmark www.denver-electronics.com...
- Page 21 18 Jan, 2020 Inter Sales A/S • Omega 5A, Soeften • 8382 Hinnerup • Denmark • Tel: +45 86 22 61 00 • Fax: +45 86 22 81 00 Homepage: www.denver-electronics.com • A/S Reg. No. 223906 • Vat. No. DK18831678...
