- Page 1 Operating manual Spare parts list Stone cutoff saw TME1000P Index «001» 10997855 EN I 25.04.2019...
- Page 2 Fax +41 44 952 18 00 e-mail: info@tyrolit.com www.hydrostress.com TYROLIT Hydrostress AG reserves the right to make technical changes without prior notice. Copyright© 2014 TYROLIT Hydrostress AG, CH-8330 Pfäffikon ZH, Switzerland All rights reserved, in particular copyrighting and translating rights.
-
Page 3: Table Of Contents
Preface to the operating manual This operating manual makes it easier to become familiar with the machine and to use it properly. The operating manual contains important information on how to operate the machine safely, properly and efficiently. Following the operating manual helps avoid danger, avoid repair costs and downtime, and increase the machine's reliability and life. -
Page 4: Basic Safety Instructions
1. Basic safety instructions Warnings and symbols in this manual Danger! Points out that serious or even fatal injuries may result if not followed. Caution! Points out that injuries may result if not followed. Notice! Points out that damage to the machine or other equipment may result if not followed. - Page 5 1.3.4 Check at least from time to time whether personnel are performing the work in compliance with the operating manual and paying attention to risks and safety factors! Caution! 1.3.5 Use personal protective equipment where necessary or if required by regulations. Danger! 1.3.6.
- Page 6 Safety instructions during specific operating phases 1.5.1 Normal operation 1.5.1.1 Avoid all actions and working methods which may compromise safety. Danger! 1.5.1.2 Take steps to ensure that the machine is operated only in a safe and proper condition! 1.5.1.3 Check the machine for visible external damage and defects at least once per shift. lmmediately report any changes (including in operational performance) to the appropriate office/individual! lf necessary, stop the machine immediately and make it secure.
- Page 7 Note 1.5.2.4 Before cleaning the machine with water or other cleaning agents, cover/seal all openings that, for reasons of safety and/or functioning, water/steam/cleaning agents must not be allowed to enter. Particularly endangered are electrical motors, switches and plug connections. Cleaning with a steam jet is not permitted.
- Page 8 1.7 Transport Danger! 1.7.1 Use a four ring suspension gear of sufficient carrying force when dislocating the machine. Danger! 1.7.2 Determine an expert to give the appropriate handling instructions for the lifting procedure! Danger! 1.7.3 Lift machine according to the instructions as provided in the operation manual (stop points for load carrying devices etc.) by means of the lifting gear in a workmanlike manner! Danger! 1.7.4 Use only suitable transport vehicles with sufficient lifting capacities!
-
Page 9: Machine Description

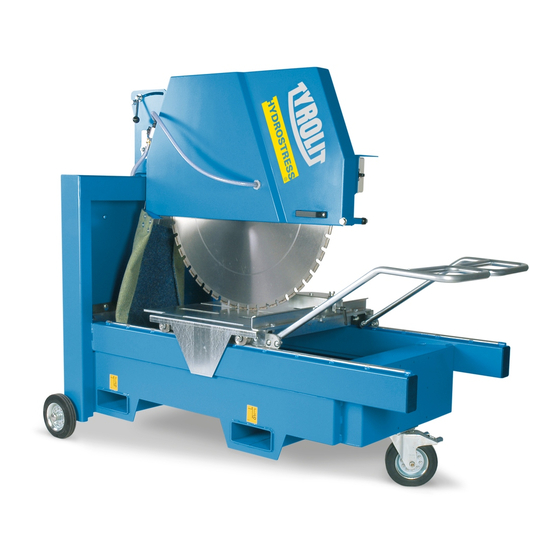

2. Machine description Overview of components ltem 1 Star- delta switch Button start ltem 2 ltem 3 Emergency / main switch ltem 4 Saw hood ltem 5 Hexagonal cut for saw hood fixing ltem 6 Motor ltem 7 Lever for sawing height adjustment ltem 8 Connection plug ltem 9 Frame ltem 10 Locking device for saw table... - Page 10 Noise emission values The measurements were made in accordance to the standards 3744, EN ISO 11201 and EN 12418. Therefore it was used a standard saw blade, 900 mm, (not a silent blade) Parameter Value continuous sound 91 dB (A) pressure level at work LoA Sound power level LwA...
-
Page 11: Assembly And Initial Preparation For Operation
Assembly and initial preparation for operation Assembly tools • Combination wrench size 13/46 Setup Danger! • Put the saw on a clean and horizontal ground • Press the parking brake (ltem 15) Installation of the saw blade (or checkinq the installation) Notice! •... - Page 12 Change direction of rotation • Turn star delta switch (item 1) to 0. • Remove power cord from the socket (item 8) • Change phase of the power supply plug (item 8) with a screwdriver. Press and turn the black disc inside Test run •...
-
Page 13: Transport
Transport Preparation for transport • Remove the power cord from the saw. • Empty the water from the pan. • Saw blade height adjustment (item 7) is tightened. • Put the saw table on the back wall and lock the device (item 10) Displace with the crane •... - Page 14 Height adjustment The saw blade height adjustment is needed for • cutting through blocks with height over 380 mm in the reversing tool. Performing the height adjustment. Attention! Position the saw arm locking (Pos. 16) horizontal. • Motor is turned off.
-
Page 15: Disassembly
Disassem bly • Turn star delta switch (item 1) to “0”. • Switch main switch (item 10) to “O OFF” • Remove the connecting cable. • lf there is danger of freezing, take the water pump out of the water and run it until empty ATTENTION! Frozen pumps have to be thawed out before switching them on. -
Page 16: Malfunctions
Malfunctions Malfunction Possible cause Remedv Motor does not run - Power cord is defective New power cord - Motor is defective - Switch is defective May only be repaired by an electrician lncorrect saw blade rotation direction - Motor incorrectly polarised Reverse the phase inverter Motor shuts down during sawing, Cut with slower feed...
