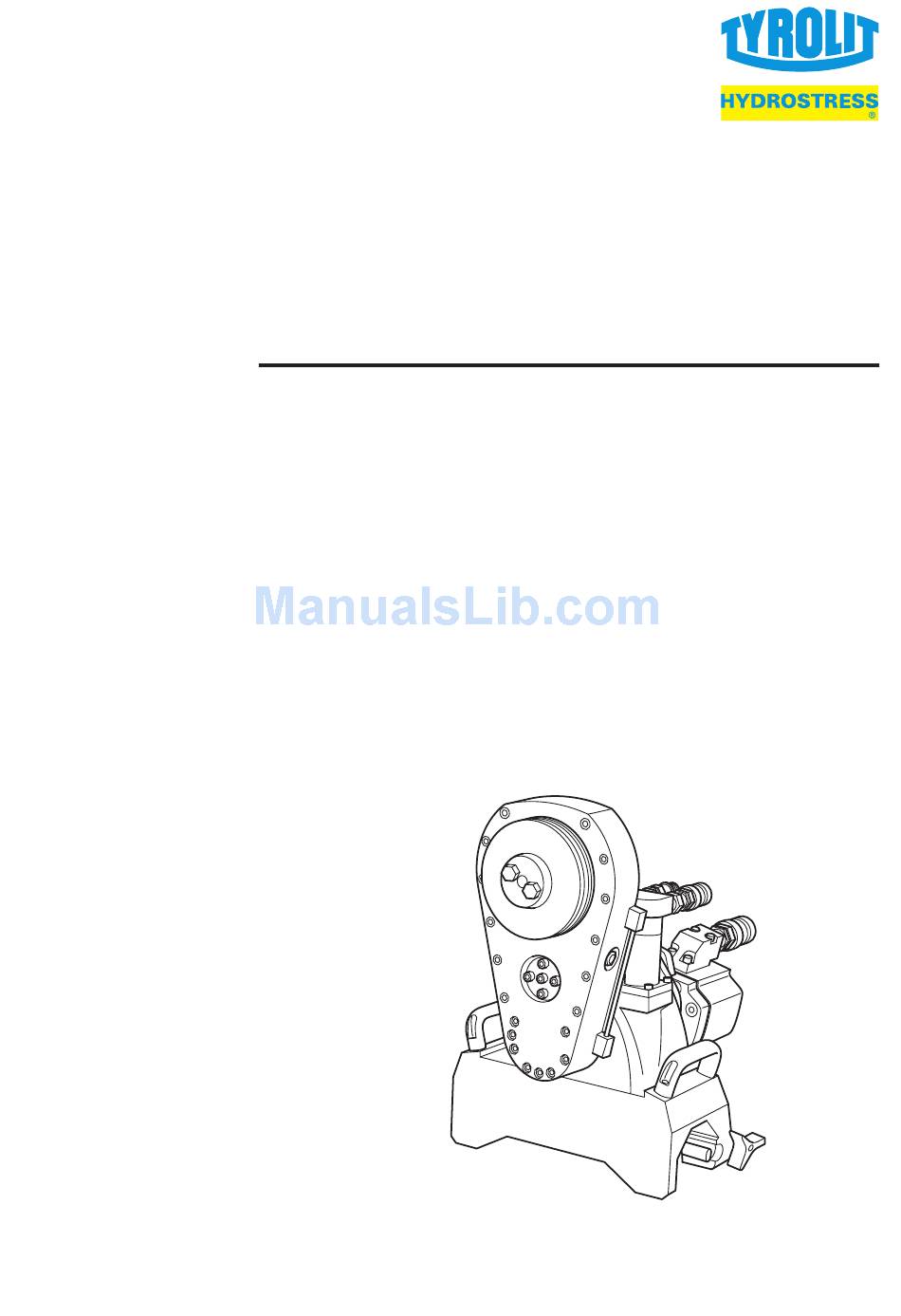

Page 1: Operating Instructions
Operating Instructions Wall saw FZ-4S Index 002 10987111 EN /16.11.2016... - Page 2 Any repair work must be carried out by trained personnel only. Our aftersales service is available to help ensure that your TYROLIT Hydrostress units remain in perfect working order.
- Page 3 X Always use the blade guard when operating the wall saw. DANGER Serious injury or material damage as a result of uncontrolled movements of the wall saw. X Never connect or disconnect hoses while the drive unit is running. Wall saw FZ-4S Page 3...
-
Page 4: Wall Saw System

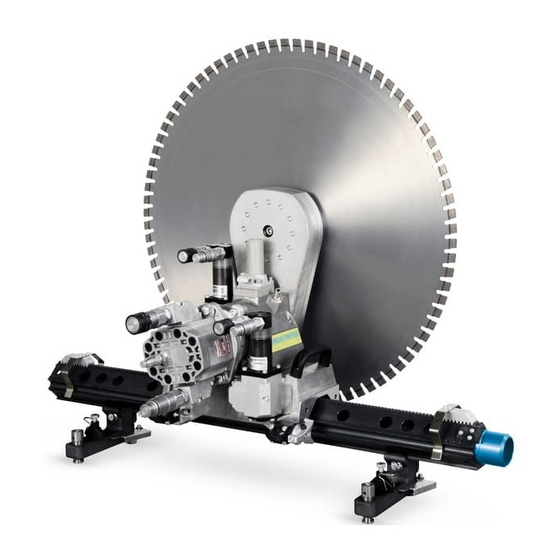

Made in Switzerland Components 1 Feed motor, swivel Blade drive motor 2 Blade guard holder Saw blade holder 3 Water connection Name plate 4 Feed motor, travel Chassis 5 Lock unit 10 Geared swivel arm Page 4 Wall saw FZ-4S... - Page 5 TYROLIT Hydrostress AG Assembly / disassembly Place the wall saw on the guide rail Wall saw FZ-4S Page 5...
- Page 6 TYROLIT Hydrostress AG Adjustment of the closure click click A: Rotate as far as the stop. B: Rotate back two notch positions. Release the closure 2. Perform the remaining assembly steps in reverse order. Page 6 Wall saw FZ-4S...
-
Page 7: Mount The Drive Motor
Mount the saw blade DANGER It can cause death or serious injury if the saw blade flies away. X Only use original screws and bolts from TYROLIT Hydrostress AG. DANGER Serious injury can be caused by sudden start-up of the saw blade. - Page 8 Correct alignment: Countersinking of the fastening bores against the blade cover. For normal cuts with saw blades up to Ø 1000 mm 40 Nm For normal cuts with saw blades larger than Ø 1000 mm 15 Nm 40 Nm Page 8 Wall saw FZ-4S...
- Page 9 It can cause death or serious injury if the saw blade flies away. X Check whether the sleeve and central screw are countersunk. X Tighten the central screw to a torque of 60 Nm. 60 Nm Wall saw FZ-4S Page 9...
- Page 10 X Lift out the saw blade unit to the top when removing it. 2. Disassemble the saw blade unit in the reverse order to the installation/assembly process. Mount the blade guard X Mount the blade guard according to the instruction leaflet. Page 10 Wall saw FZ-4S...
- Page 11 TYROLIT Hydrostress AG Connecting the wall saw to the drive unit 9 The drive unit is isolated from the power supply. 9 Couplings are clean. 9 Hoses are undamaged. Wall saw FZ-4S Page 11...
-
Page 12: Servicing And Maintenance
X Check for wear Service X To be performed by TYROLIT Hydros- After 100 / 300 / 500 / 700 hours tress AG or an authorised workshop Lubrication of the lock unit 1 Grease nipple Page 12 Wall saw FZ-4S... -
Page 13: Change Gear Oil
TYROLIT Hydrostress AG Change gear oil The use of unsuitable oil can damage the wall saw. X Use only TYROLIT Hydrostress AG oil containers (no. 10981362, 10 cl). Wall saw FZ-4S Page 13... -
Page 14: Technical Data
Locking and securing function at the prism guide Blade drive motor Mounted via quick-release device (size 3) Feed motor Gerotor Flush cutting Quick-release flange ST without blade cover Normal cutting: Quick-release flange ST with blade cover Water Water connection on chassis Page 14 Wall saw FZ-4S... - Page 15 3250 2600 2097 1625 1300 l/min 3500 2800 2258 1750 1400 l/min 3750 3000 2419 1875 1500 l/min 4000 3200 2581 2000 1600 l/min 4500 3600 2903 2250 1800 Operation possible Operation not possible Wall saw FZ-4S Page 15...
-
Page 16: Feed Motor, Travel
Blade flange mounting at wall saw Quick-release flange ST Saw blade fixing on blade flange 6 countersunk head screws reference circle 130 mm Blade cover mounting on blade flange 2x 19 mm hexagon head screws Blade flange Ø 60 mm Page 16 Wall saw FZ-4S... - Page 17 Lubricating grease (lock unit) Penetration 265 to 295 NLGI Connectable drive units The wall saw must only be operated with the coordinated drive units from TYROLIT Hydrostress. Drive unit power requirements: Parameter Value Minimum output: 29 kW (max. operating pressure 260 bar) Maximum performance 40 kW (max.
-
Page 18: Ec Declaration Of Conformity
Type designation FZ-4S We declare under our own liability that this product complies with the following directives and standards: Directive applied 2006/42/EC Standards applied EN 12100 : 2010 EN 15027 : 2007 + A1 : 2009 Page 18 Wall saw FZ-4S... - Page 19 TYROLIT Hydrostress AG Wall saw FZ-4S Page 19...
