Page 1: Spare Parts List

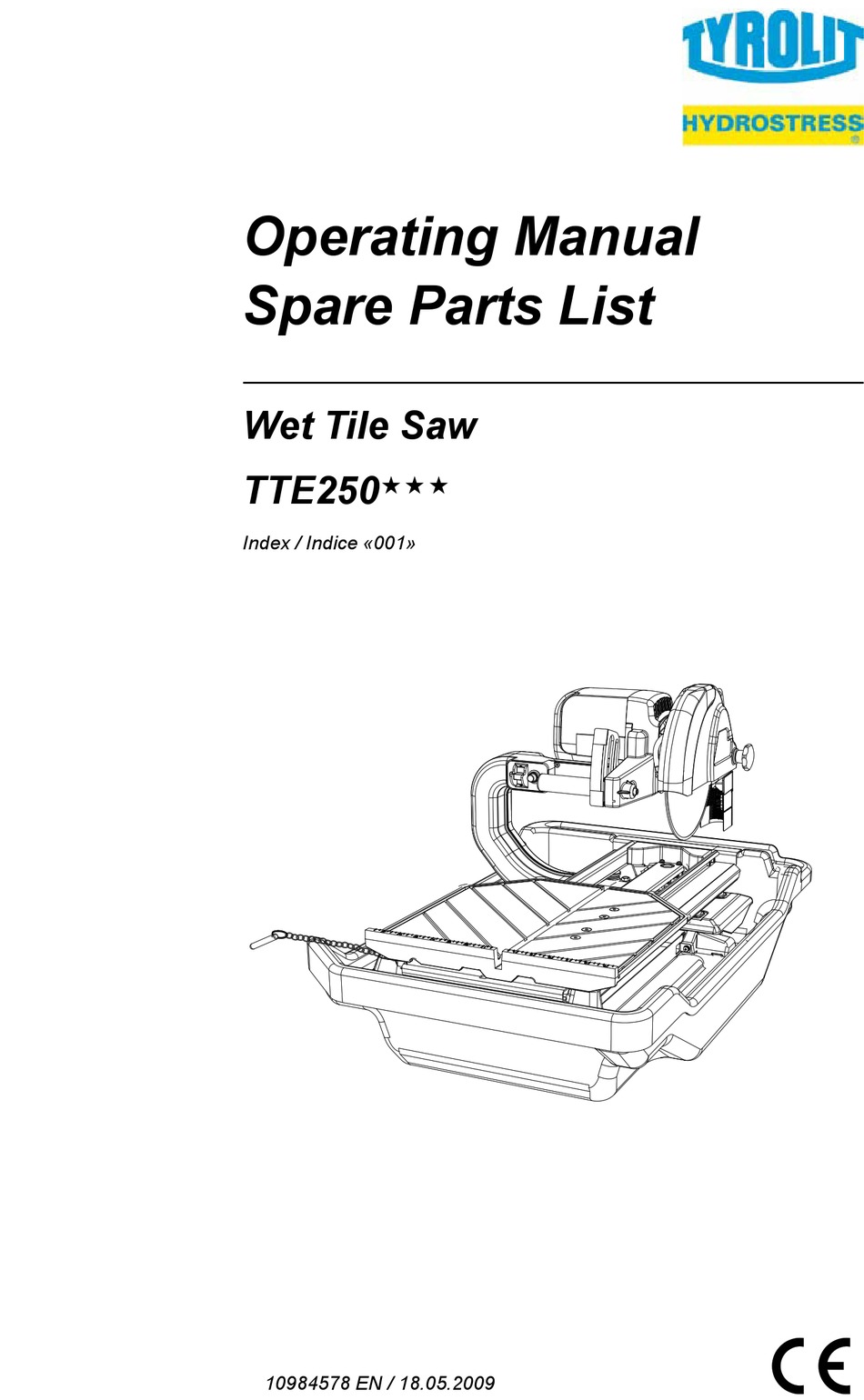

Operating Manual Spare Parts List Wet Tile Saw TTE250 Index / Indice «001» 10984578 EN / 18.05.2009... - Page 2 Tel. +41 (0)44 952 18 18 Fax +41 (0)44 952 18 00 www.tyrolit.com TYROLIT Hydrostress AG reserves the right to make technical changes without prior notice. Copyright © 2005 TYROLIT Hydrostress AG, CH-8330 Pfäffikon ZH, Switzerland All rights reserved, in particular copyrighting and translating rights.
-
Page 3: Table Of Contents
TABLE OF CONTENTS PaGe i. General Safety ruleS for all Power toolS ........3 ii. SyMBolS . -
Page 4: General Safety Rules For All Power Tools
i. GENERAL SAFETY RULES FOR ALL POWER TOOLS WARNING! Read all instructions. As with all machinery there are certain hazards involved with operation and use of the machine. The following basic safety precautions should be followed at all times to reduce the risk of fire, electric shock and serious personal injury to you or others. Keep these important operating instructions with this product. 1 . Know your power tool - read owner’s/operator’s manual carefully. learn its applications and limitations as well as the specific potential hazards unique to this tool. 2 . Keep guards in place - and in working order. 3 . Ground all tools - if tools are equipped with three prong plug, it should be plugged into a three-hole electrical receptacle. if an adapter is used to accommodate a two-prong receptacle, the adapter lug must be attached to a known ground. never remove the third prong. -
Page 5: Symbols
2 1. extension cords. Make sure your extension cord is in good condition. when using an extension cord, be sure to use one heavy enough to carry the current your product will draw. an undersized cord will cause a drop in line voltage resulting in loss of power and overheating. extension cord tables (refer to page 21) show the correct size to use depending on cord length and nameplate ampere rating. if in doubt, use the next heavier gage. the smaller the gage numbers the heavier the cord. 2 2. do not abuse cord. never carry tool by cord or pull it to disconnect from receptacle, Keep cord from heat, oil, and sharp edges. 2 3. Guard against electric shock. Prevent body contact with grounded surfaces. for example, pipes, radiators, ranges and refrigerator enclosures. 2 4. outdoor use extension cords. when tool is used outdoors, use only extension cords intended for use outdoors and so marked. 2 5. Stay alert. watch what you are doing. use common sense. do not operate tool when you are tired. 2 6. drugs, alcohol, medication. do not operate tool while under the influence of drugs, alcohol or any medication. 2 7. Store idle tool. when not in use, tool should be stored in a dry and locked place, out of reach of children. WARNING! Sawing generates dust. Excessive airborne particles may cause irritation to eyes, skin and respiratory tract. To avoid breathing impairment always employ dust controls and protection suitable to the material being saw. Diamond blades improperly used are dangerous. Comply with safety regulations covering speed, safety guards, flanges, mounting procedures, general operating rules, handling, storage and general machine condition. ii. SYMBOLS KeeP Guard in rePairS to Be done wear hearinG Place... -
Page 6: Features

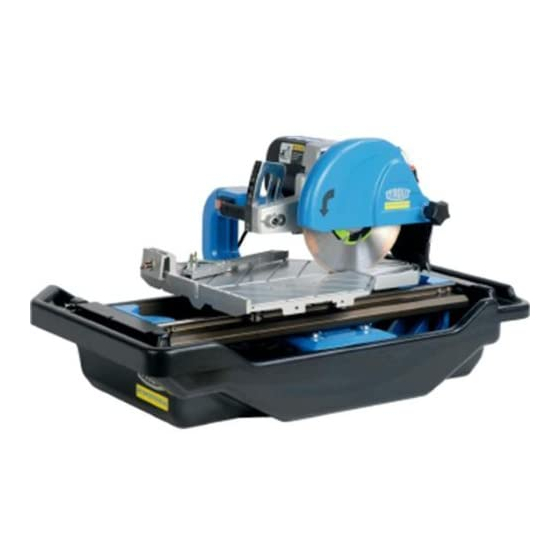

iii. FEATURES The TYROLIT TTE250 is a portable professional tile saw. Lightweight and compact it has innovative built in features that enable it to cut larger format tiles. The unique coaction movement of the cutting head and main table allow the saw to increase its cutting capacity whenever needed. The main table and extension carriage are supported by low friction, self cleaning, adjustable guide wheels. -
Page 7: Getting To Know Your Saw
v. GETTING TO KNOW YOUR SAW Motor Blade Guard Cutting Head Assembly Assembly Adjustment Handle Blade Guard Power Switch Adjustment Knob Splash Guard Vertical Arm Assembly Diamond Blade Rail Platform Assembly Water Tray Main Table Assembly Blade Wrench Miter Block Side Extension Table MasterGuide... -
Page 8: Blade Installation
vi. BLADE INSTALLATION 1. carefully raise the cutting head to its highest WARNING: Setting the blade too high may cause position and secure it into place by tightening the the blade to grap the material being cut, causing cutting head adjustment knob located in the front damage and possibly injury. of the saw, to the right of the power switch. 2. raise the blade guard to the highest position and tighten the blade guard adjustment knob. 3. remove the blade shaft nut and outer flange. 4. Place the blade onto the shaft making sure that the directional arrows are pointing in the direction of rotation. - Page 9 saw blade capacity. 14. Before using the saw fill the water tub enough to submerge the water pump with clean water only. 8. Before mounting a blade on the saw clean and replenish as necessary and clean the water tub inspect the arbor shaft, blade flanges and the frequently. do not operate a wet cutting blade diamond blade for uneven wear or damage. if it without adequate water flow to both sides of the appears to be damaged, Do not operate the tool.
- Page 10 cover of grounded Grounding outlet box Means (lug) Metal Screw Grounding pin Grounding pin Figure 2 Grounding Methods 19. Grounding instructions NOTE - Use of a Temporary Adapter is not permitted • in the event of a malfunction or breakdown, in certain countries. Please check local regulations grounding provides a path of least resistance before using a Temporary Adapter. for electric current to reduce the risk of electric shock. this tool is equipped with an additionally, water pump requires the use of a Ground fault electric cord having an equipment-grounding...
-
Page 11: Using The Cutting Table
21. extension cords • Ground fault circuit interrupter (Gfci) protection should be provided on the circuit(s) • use only extension cords that are intended or outlet(s) to be used for the tile saw. for outdoor use. these extension cords are receptacles are available having built-in indentified by a marking "Acceptable for use Gfci protection and may be used for this with outdoor appliances;... -
Page 12: Care And Maintenance
xix. CARE AND MAINTENANCE WARNING! For your safety before performing any maintenance on the saw turn off the power switch and unplug the power cord. tyrolit tte250 requires very little maintenance. c. tighten nyloc nut when finished to secure however, keeping your saw clean and properly adjusted will rollers in place. Be sure not to overtighten. ensure optimum performance. take great care not to get water into the motor. do no use pressure washer to clean Figure Set screw to adjust Assembly Roller Adjustment motor area. - Page 13 resistance encountered while turning the 5. Unlinking Coaction Wire pivot adjuster indicates that rollers are being a. remove the wire shield located between the forced against the rail. lower roller tension rails by removing the screws at both ends. before proceeding. B. loosen the nyloc nuts on the wire anchor Figure underneath the table so that the wire can pass Blade Alignment freely through the bolt. Be sure to use an allen key to prevent the bolt from turning.
- Page 14 fit over the recessed portions of the tub wall. e. remove the water pump underneath the rails and install a new one in its place. remove the See Figure 10. water tube and adapter from the failed pump. Figure 10 Positioning the Saw f. insert power cable from the new pump through the cable gland and shield sleeve and route it up the vertical arm. the gland must be oriented such that it can attach to the sleeve. G. connect wiring from the water pump power cable to the same wires made available when disconnecting the failed pump. h. install shield onto vertical arm using screws. Bracket i. Gently extract excess cable stored within vertical arm; some slack is ideal. Tugging the cable may dislodge or disconnect critical electrical components. attach cable gland...
-
Page 15: Cutting Depth
x. CUTTING DEPTH the recommended cutting depth is 6mm below the cutting BLADE DIAMETER CUTTING DEPTH table surface. to adjust the cutting depth, loosen the cutting 250mm 60mm head adjustment handle and set it to the lowest position, so that the blade is 6mm below the top of the table surface. WARNING: Setting the blade too high may cause the blade to grab the material being cut, possibly causing injury to the operator and the saw. - Page 16 cuttinG head aSSeMBly 11 24 28 29 Art. No. Description Art. No. Description 10985690 eoSM-420027 cuttinG head 10985704 eoSM-420042 M5 SPrinG waSher 10985691 eoSM-420028 Gear caP 10985705 eoSM-420043 M5x0.8x25l croSS Screw 10985692 eoSM-420029 Blade Guard Shaft 10985706 eoSM-420044 M4 narrow waSher 10985693 eoSM-420030 Blade Shaft 10985707 eoSM-420045 M4 SPrinG waSher 10985694 eoSM-420031 helical Gear 10985708 eoSM-420046 M4x0.7x20l croSS Screw 10985794 eoSM-420158...
- Page 17 vertical arM aSSeMBly 230v/50hz 32 36 33 110v/50hz Art. No. Description Art. No. Description 10985797 eoSM-420161 PoSt 10985735 eoSM-420077 1/4”-20x1-1/4”x3/4” Bolt 10985798 eoSM-420162 PoSt electr. acceSS Plate 10985736 eoSM-420078 1/4” - 20 nylon nut 10985720 eoSM-420060 ruBBer GaSKet 10985737 eoSM-420079 M8 x 1.25 nylon nut 10985799 eoSM-420163 Plate 10985738 eoSM-420080 dia 8MM caBle Gland 10985721 eoSM-420062 cuttinG head BracKet 10985739 eoSM-420081 M8x1.25x20l croSS Screw 10985800...
- Page 18 18 17 taBle aSSeMBly Art. No. Description 10985750 eoSM-420092 Main taBle 10985751 eoSM-420093 wire anchor Plate 10985917 eoSM-v31014-Ma roller MountinG Plate 10985918 eoSM-v31015-Ma nut Plate, taBle 10985752 eoSM-420094 wire Bolt anchor 10985746 eoSM-420088 M6 x 1.0 nylon nut 10985729 eoSM-420071 M6 narrow waSher 10985753 eoSM-420095 uPPer roller SPacer 10985916 eoSM-v31005-Ma water Shield 10985915 eoSM-v31004-Ma ByPaSS SPacer 10985754 eoSM-420096 roller 10985731 eoSM-420073 lower roller SPacer 10985755...
- Page 19 rail PlatforM aSSeMBly Art. No. Description Art. No. Description 10985805 eoSM-420169 rail PlatforM 10985776 eoSM-420120 ruBBer feet 10985764 eoSM-420108 Pulley Mount and caP 10985777 eoSM-420121 M5x0.8x10l croSS Screw 10985765 eoSM-420109 front PlatforM anchor 10985778 eoSM-420122 chain 10985766 eoSM-420110 rear PlatforM anchor 10985779 eoSM-420123 d21 rinG 10985767 eoSM-420111 rail 10985780 eoSM-420124 d8 x 45l QuicKreleaSe Pin 10985768 eoSM-420112 SKid Plate 10985706 eoSM-420044 M4 narrow waSher...
-
Page 20: Accessories
xii. ACCESSORIES Name (Qty.) Name (Qty.) Side extenSion Jolly-tiSch (1) taBle (1) Art. No. Art. No. 10978736 10985921 Part Number Part Number eoSM-S700-34 eoSM-v38008 Optional Name (Qty.) Name (Qty.) KnoB riP GuideMiter MaSterGuide (1) BlocK (1) Art. No. Art. No. 10980453 10985920 Part Number Part Number eoSM-S1000-MG eoSM-v35016 Name (Qty.) aBlaufStoPfen (1) -
Page 21: How To Order Parts
1,1 kW Voltage 230V/50Hz Weight 26 kg Year 2007 to avoid incorrect deliveries you should check the order details above for correctness and completeness prior to shipment. you should ensure that the delivery address is given in full. for orders, questions and information please contact your responsible branch office below: TYROLIT Hydrostress AG witzbergstrasse 18 ch-8330 Pfäffikon Switzerland tel. 0041 (0)44 952 18 18 fax 0041 (0)44 952 18 00 www.tyrolit.com disclaimer: tyrolit hydrostress aG reserves the right to make changes or improvements on its products without incurring an additional obligation including any obligation to make corresponding changes or improvements to products previously manufactured or sold. tyrolit reserves the right to discontinue products at any time without notice. -
Page 22: Electrical Motor Specification
xiv. ELECTRICAL MOTOR SPECIFICATION Recommendations: TTE250 1.1 kw Power • Before connecting the saw to a power source, ensure that the voltages match. 110 v 230v Volts* 13 amps 7.5 amps • it is recommended that a 1 amp circuit Amps be used while operating this saw if equipped 22,000 rpm Motor RPM with a 110v motor. if the saw is equipped with... -
Page 23: Troubleshooting
xv. TROUBLESHOOTING For your safety and the safety of others, turn the power switch off and always remove the plug WARNING! from power source before troubleshooting. Repairs performed by unauthorized personnel could cause serious hazard. We recommend that service to this tool be performed by a qualified service technician with original equipment replacement parts. NOT CUTTING SQUARE. check the main table and EXCESSIVE NOISE. lack of lubrication to the gearbox and or possible bearing wear. have tool serviced. carriage adjustment as well as the blade alignment procedure located in the care and maintenance section. BLADE WILL NOT CUT. check for worn out diamond edge. Be sure that the arrow on the blade is rotating the same MAIN TABLE DOES NOT MOVE FREELY. inspect direction as the motor arbor and/or arrow on the blade guard. - Page 24 DISPOSAL GENERAL the operator can recycle or dispose of the table saw himself provided he observes the statutory provisions. in order to dismantle the table saw correctly and to properly remove the materials some knowledge in the area of mechanics and knowledge about differentiation of waste materials is necessary. if during correct disposal doubts arise that represent a hazard for persons or the environment, the after-sales service of tyrolit hydrostress aG will be happy to provide information. DANGER voltage warning Before working in an area identified in this way, the installation or device must be fully disconnected from the power (voltage) and secured against being accidentally powered up again. failure to head this warning may lead to death or serious injury. PERSONNEL QUALIFICATIONS only personnel with basic technical training and who are in a position to identify the various material groups should be involved in disposal. DISPOSAL REGULATIONS the normal local and regional rules and guidelines must be observed when disposing of the machines making up the table saw. DISPOSAL REGULATIONS the dismantled parts of the table saw are sorted by material and sent separately to the appropriate collection points. ensure that the following parts in particular are properly disposed of.
-
Page 25: Declaration Of Conformity
10984480 (110V) Serial number: 25000001 – 2500_ _ _ Index Year of construction: 2009 The TYROLIT Hydrostress AG certifies that the inspected above machine against the following guidelines and that we confirm compliance with these standards: Guidelines: Machine Directive 98/37/CE, 2006/42/CE...
