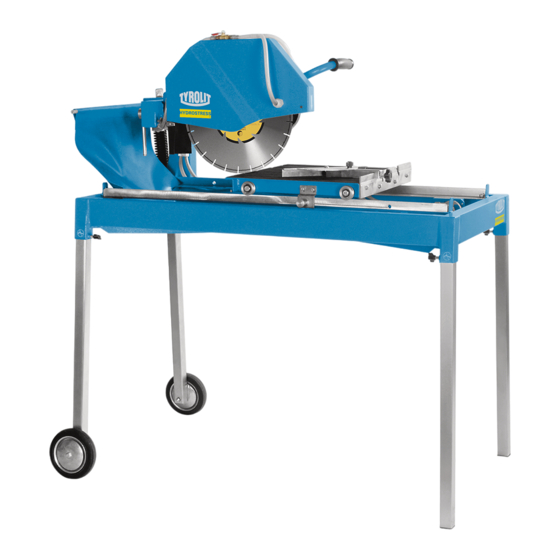

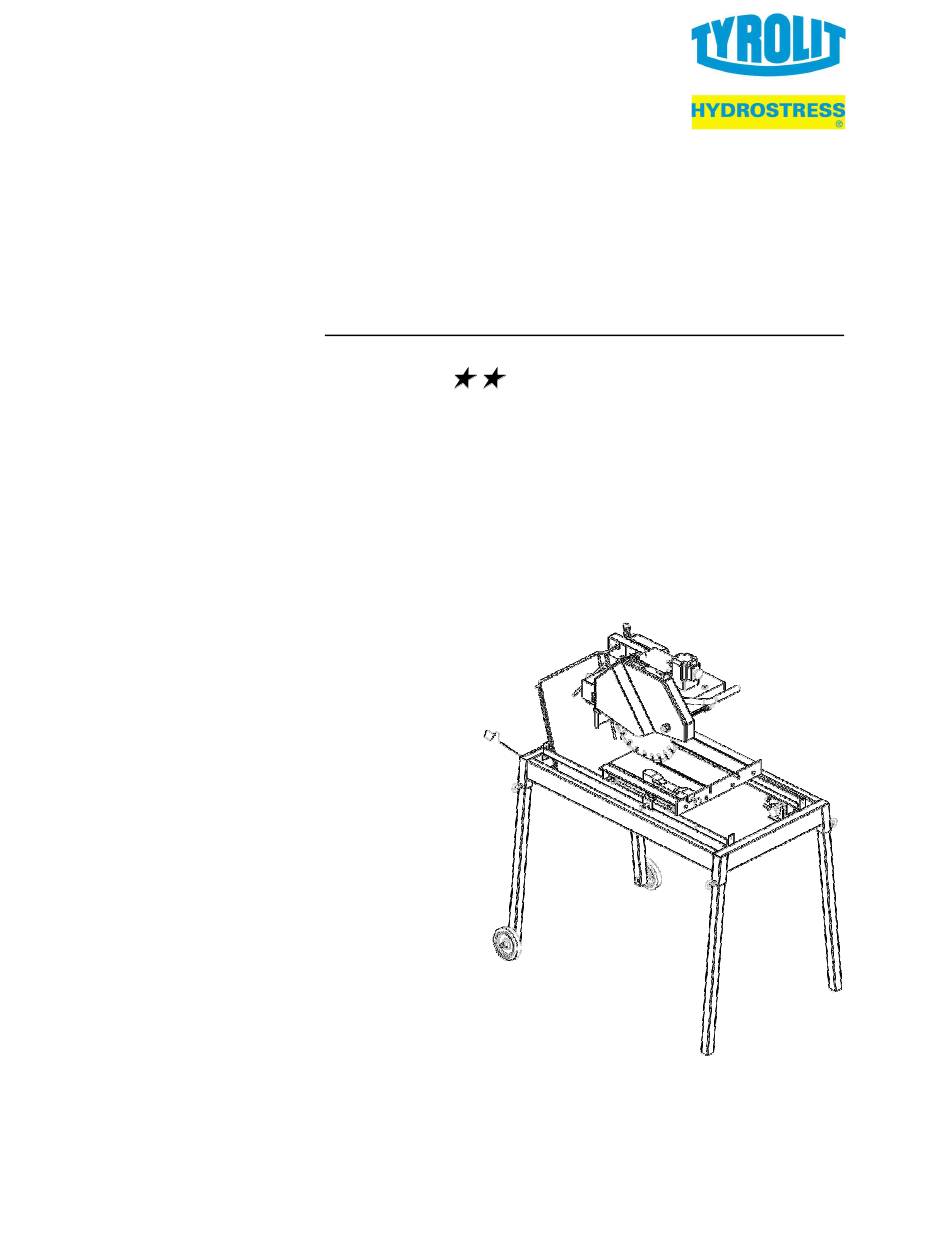

- Page 1 Operating Instructions TBE350 Table Saw Index / Indice «001» 10996400 en / 28.09.2016...
- Page 2 Tel. +41 (0)44 952 18 18 Fax +41 (0)44 952 18 00 www.hydrostress.com TYROLIT Hydrostress AG reserves the right to make technical changes without prior notice. Copyright © 2003 TYROLIT Hydrostress AG, CH-8330 Pfäffikon ZH, Switzerland All rights reserved, in particular copyrighting and translating rights.
-
Page 3: Table Of Contents
TBE350** Owner manual text TABLE OF CONTENTS Contents……………………………... Safety precautions……………………….. General safety rules……………………. Health warnings…………………………. Unpack, assembly & set-up……………. Diamond blade installation……………... Inspection & specification………………. Features…………………………………… Cutting table assembly…………………. The rip guide……………………………. Cutting depth……………………………... Water pump installation…………………. Slide-In legs……………………………… Electric motor specifications……………. Do’s &... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Saw blade should be inspected daily for excessive wear, core cracks, and arbor damage. Replace any blade that shows signs of damage. • To mount blade, clean arbor and outer flanges, tightening nut securely. • DO NOT place any portion of body in line with blade while it is rotating. •... -
Page 5: General Safety Rules
GENERAL SAFETY RULES • Never use the machine improperly or work in an unsafe manner. • Always wear safety goggles, dust mask, and ear protection while operating the saw (to comply with ANSI-Z87.1). • Always remain alert when the saw is in use. Failure to pay attention on the operator’s part may lead to serious injury. -
Page 6: Unpack, Assembly & Set-Up
UNPACKING, ASSEMBLY & SET-UP Open the container, carefully lift the saw frame handles and place it on a flat, level working area. Be certain that you have the following items before you discard the container: • Saw • 45° / 90° rip guide •... -
Page 7: Inspection & Specification
INSPECTIONS & SPECIFICATION The compact TBE350** table saws are shipped completely assembled and ready for use except for the diamond blade. Inspect the saw for shipping damage. If any damage is found, contact the shipper immediately and file a freight claim. We are not responsible for any freight related damages. -
Page 8: Features
FEATURES The TBE350** table saw is designed for the professional contractor in mind. It enhances performance with a multitude of features facilitating operation. -
Page 9: Cutting Table Assembly
CUTTING TABLE ASSEMBLY To install the cutting table to the machine: 1. Set the cutting table on the rails 2. Install the screw and brackets to the cutting table 3. To remove the cutting table do the reverse of the above two steps. -
Page 10: The Rip Guide
THE RIP GUIDE Steps to use the 45º / 90º rip guide 1. Set the rip guide by positioning it on the desired dimension and tighten the threaded knob. Make sure that the rip guide is firmly tightened to avoid slippage. -
Page 11: Water Pump Installation
WATER PUMP INSTALLATION 1. Remove the water pump from the box and check that it is not damaged. 2. Place the pump into the middle of the water tray along its side so that the water outlet is positioned horizontally. Connect the water hose from the blade guard to the pump and plug the power cord into the 3-prong receptacle. -
Page 12: Slide-In Legs
SLIDE-IN LEGS 1. Slide each of the four legs into the housing at the four corners of the saw frame. 2. After sliding the leg as far as possible, lock the leg in place with the ring bolt located on the leg housing. -
Page 13: Electric Motor Specifications
ELECTRICAL MOTOR SPECIFICATIONS Features: Power 2,2 kW Volts 230 V (110 V) Amps 15 Amps (30A) otor RPM 2800 RPM Cycle 50 Hz (60 Hz) Recommendations: It is recommended that a 15 A (30 A) CIRCUIT be used while operating this saw. This will prevent any loss of power or interruption. -
Page 14: Do's & Don'ts For Blades
DO’S AND DON’TS FOR BLADES WET CUT BLADES DO'S • Inspect blades daily for cracks or uneven wear. • Always use appropriate blade for material being cut. • Inspect arbor shaft for uneven wear before mounting blade. • Always use blades with the correct arbor shaft size. •... -
Page 15: Saw Maintenance
SAW MAINTENANCE Maintenance interval Wath to do for maintenance and care After ecery use ot the Remove dirty water from container. machine Remove dirt and mud from the bottom of the container Rinse teh immersion pump with fresh water to prevent water pump dogging from residual dirt. -
Page 16: Troubleshooting
TROUBLESHOOTING Problem Possible cause Solution Machine does not run Power cord not properly Check that the machine is properly when switched on fixed / plugged in connected to the power supply. Power cord defective Have the power cord checked, replace if necessary. - Page 17 TROUBLESHOOTING Problem Possible Cause Solution Irregular run of the Poor tension in the blade Return the saw blade to the saw blade material manufacture Saw blade wobbles Saw blade is damaged or Have the saw blade when running bent aligned/flattened Clean the receiving flange Solder the diamond segments of the old blade onto another swa...
- Page 18 TROUBLESHOOTING Problem Possible cause Solution Saw blade is blunt Saw blade type is Use appropriate type of saw blade unsuitable for the meterial being cut Saw blade type is unsuitable for the machine performance Saw blade too hard Diamond segments are Sharpen the diamond saw blade blunt Appearance of cut is...
-
Page 19: Customer Service
CUSTOMER SERVICE AFTER SALE SERVICE All customer service (technical questions, re-order of parts, etc.) will be provided by us. CLAIMS FOR LOST OR DAMAGED GOODS If merchandise is delivered in damaged condition or cartons are missing, a notation must be placed on all papers signed by the receiver. If unreported or concealed damages are noticed after delivery, the carrier should be contacted by telephone and if carrier fails to send an inspector within five days, a request should be made in writing to the carrier, confirming the telephone request for an... -
Page 20: Warranty
This warranty does not cover normal wear or damage resulting from operator abuse. TYROLIT Hydrostress AG obligations under this warranty shall be limited to the repair and/or replacement of the product. TYROLIT Hydrostress AG shall not be liable for consequential damages resulting from the improper use of the product. -
Page 21: Spare Parts List
If during correct disposal doubts arise that represent a hazard for persons or the environment, the after-sales service of TYROLIT Hydrostress AG will be happy to provide information. DANGER Voltage warning... -
Page 22: Explode View
DISPOSAL OF TABLE SAW DISPOSAL REGULATIONS The dismantled parts of the table saw are sorted by material and sent separately to the appropriate collection points. Ensure that the following parts in particular are properly disposed of. The Table saw consists of the following materials: Cast aluminium Rolled aluminium products Bronze... - Page 23 TBE350** Spare Parts List Pos. Art. No. Descriptions Bezeichnung 10985467 Cord Grip(PG13.5) Kabelverschraubung (PG13.5) 10981926 Outer Blade Guard Blattschutz aussen 10988403 Hose 350mm Schlauch 350mm 10988404 Hose 320mm Schlauch 320mm 10981928 Water Flow "Y" Adapter Y-Schlauchnippel 10988405 Hose 100mm Schlauch 100mm 10981929 Water Valve Wasserventil...
- Page 24 Pos. Art. No. Descriptions Bezeichnung 10985483 Lock Handle Arretiergriff 10985633 Wrench Storage Werkzeughalter 10995471 Hex. screw M5x10 6kt-Schraube M5x10 979340 Hex. screw M12x60 6kt-Schraube M12x60 10981945 Cutting Height Lock Bar Schnitthöhenarretierung 10985483 Lock Handle Arretiergriff 10985633 Wrench Storage Werkzeughalter 10995471 Hex.
- Page 25 Pos. Art. No. Descriptions Bezeichnung 10981961 Motor Complete 2.2KW Elektromotor kompl. 2.2KW 977631 Hex. nut M20x0.8d left Mutter 6kt.M20x0.8d links 10985472 Outer Flange Aussenflansch 10986226 Inner Flange Innenflansch 10995558 Key 5x10 Federkeil 5x10 10997701 Shaft Seal Ф47xФ25x12 Wellendichtring Ø47xØ25x12 10995540 Screw M5x25 Schraube M5x25 971627...
