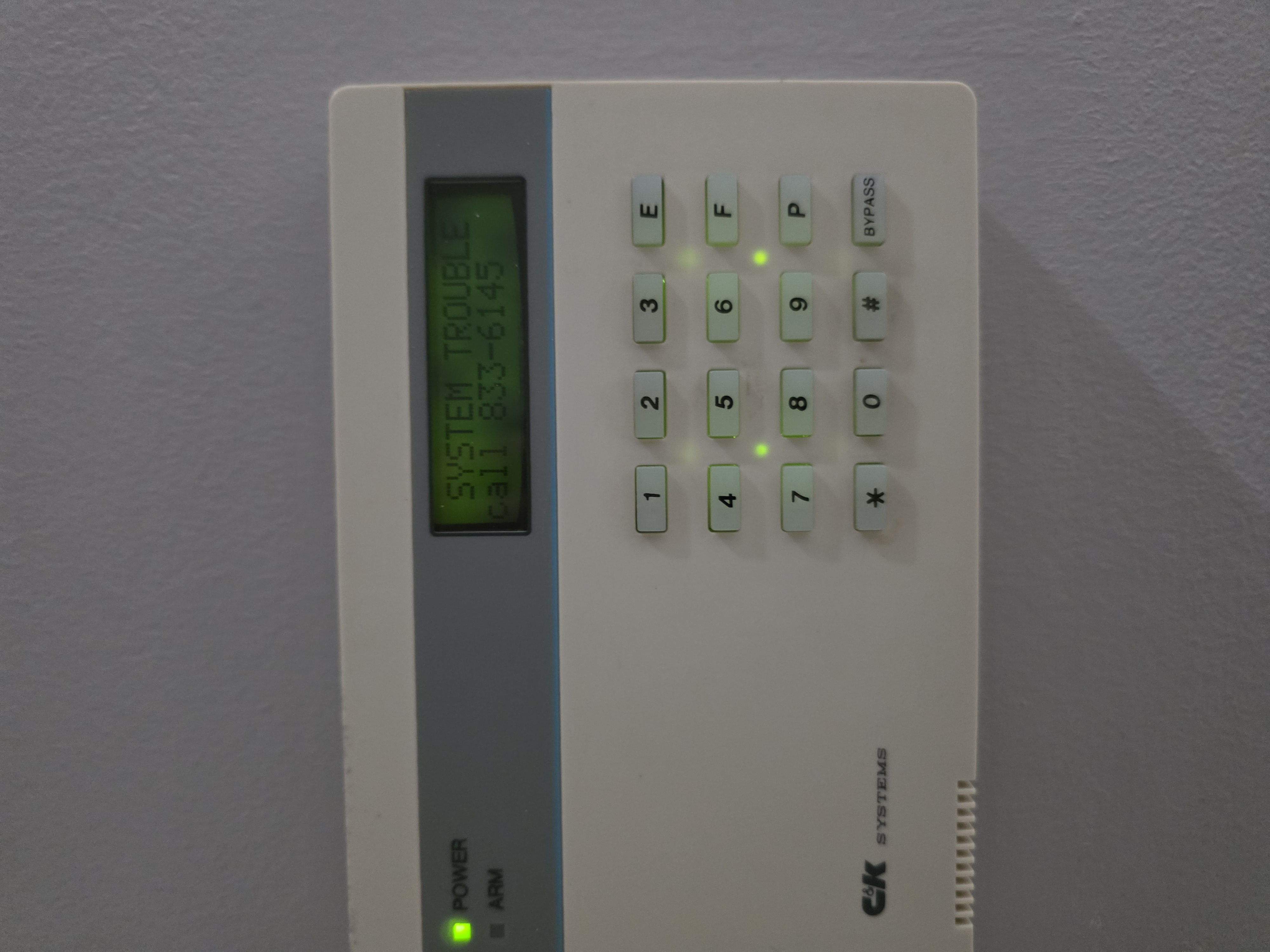

- Page 1 Using your Alpha Plus keypad With your System 236 System 236i System 238 System 238i System 2316 System 2316i Part Number 5-051-373-00 Rev C...
- Page 2 Thank you for purchasing this C&K alarm system. Your system is one of the most powerful and advanced alarm systems on the market today designed to provide you with years of reliable operation. This manual explains how to operate your alarm system. Basic operating instructions are also printed on the small label attached to the inside of your keypad(s) door.
-
Page 3: Table Of Contents
Deleting a User PIN - System 238 ......Test procedures index ......... 45 Changing a User PIN - 29-30 System 236, 2316 ....Zone description list ..........46-48 Deleting a User PIN - 31-32 System 236, 2316 ....CC Notice / Industry Canada ......50-51 Resetting smoke detectors ...... -
Page 4: Getting Acquainted
What your alarm system is... Your alarm system is made up of a control panel and several detection devices like motion sensors, magnetic contacts, and so on. Specific areas of detection are called zones. Zones can be programmed to have different characteristics. Some zones may be 24-hour zones, that is, they remain armed even when the alarm system is off. - Page 5 Each alarm system in the 2300 family is designed to meet the specific needs of a variety of applications. System 236 is specifically designed for smaller, six zone applications. Systems 238 and 2316 are designed for applications requiring protection of eight and sixteen zones, respectively.
-
Page 6: What The Lights Mean
POWER ARMED REMARKS LIGHT LIGHT AC POWER .AILURE Power .ailure. System is operating on battery. Battery is low; Call your service department. LCD LOW BATTERY Slow .lash display will show system trouble. SYSTEM ARMED Protection is on. SYSTEM DISARMED Protection is off. SYSTEM IS ARMED WITH DELAY ZONES System armed using * 7 #. -
Page 7: What The Sounds Mean
(trouble on supervised loops only) pulsed tone (2 seconds on, 2 seconds off) alarm signal for zone programmed for pulsed bell or siren *Not available on System 236/236i... -
Page 8: Arming The System
TO ARM THE SYSTEM: Make sure the display reads READY TO ARM. .aulted zones must be cleared or bypassed before the system can be armed. If the display reads NOT READY TO ARM, followed by .AULTED ZONE, push the # key. The display will then indicate which zone(s) are faulted. - Page 9 Make sure the red ARM light comes on. The keypad will beep twice to confirm that the system is armed. The display will read EXIT NOW. Exit through any TIME DELAY DOOR within seconds. The exit delay time can be programmed from 10 seconds to 150 seconds. If the EXIT PRE-ALARM option is installed, the keypad will beep slowly until 10 seconds OPTION INSTALLED...
- Page 10 System: 236/236i ONLY AUTO HOME ARMING OPTION INSTALLED This option enables the system to automatically bypass interior zones if you arm the system but do not leave the premises. The perimeter zones will be armed, and the entry delay will remain intact. Make sure the display reads READY TO ARM.
- Page 11 INSTANT ARMING Instant Arming converts all time delayed zones to INSTANT zones. Make sure that the display reads READY TO ARM. Enter your PIN (if required), REQUIRED push the key, enter the digit "7", then push the # key. The keypad will beep twice to confirm that the system is armed, and the display will read ARMED - INSTANT.
- Page 12 HOME ARMING Home Arming arms perimeter zones, while bypassing interior zones. Make sure that the display reads READY TO ARM. Enter your PIN (if required), REQUIRED push the key, enter the digit "4", then push the # key. The keypad will beep twice to confirm that the system is armed, and the display will read ARMED.
- Page 13 INSTANT HOME ARMING Instant Home Arming arms perimeter zones, and bypasses interior zones. Entry time delays are converted to INSTANT. Make sure that the display reads READY TO ARM. Enter your PIN (if required), REQUIRED push the key, enter the digit "7", the digit "4", then push the # key.
- Page 14 System: 238, 238i, 2316, 2316i ONLY BYPASSING ZONES This procedure allows you to bypass one or more zones while your system is DISARMED. NOTE: System programming determines which PINs can bypass zones, also which zones can be bypassed. To learn if a zone can be bypassed, see the Zone description list on pages 46-48.
- Page 15 System: 238, 238i, 2316, 2316i ONLY To bypass more than one zone: enter your REQUIRED PIN (if required), push the key, enter the first zone to be bypassed, push the key again, enter the next zone to be bypassed, ZONE # ZONE # and so on.
- Page 16 System: 236 and 236i ONLY BYPASSING ZONES This procedure allows you to bypass one or more zones while your system is (See NOTE page 17 ). DISARMED NOTE: System programming determines which PINs can bypass zones, also which zones can be bypassed. To learn if a zone can be bypassed, see the Zone description list on page 46.
- Page 17 System: 236 and 236i ONLY To indicate that zones are bypassed, the display will read BYPASSED ZONE. To see which zones are bypassed, push the # key. NOTE: Zones can also be bypassed by remote programming. The system can either be armed or disarmed for remote programming.
-
Page 18: Arming Options
Your alarm system has been programmed for one of the following arming types: GOO.-PROO. ARMING OPTION INSTALLED If any zone other than a 24-hour zone is faulted (open window, malfunctioning sensor, etc.), your system will not arm. You will not be able to arm the system until the faulted zone is cleared or manually bypassed. - Page 19 ENTRY DELAY time. You must re-enter the premises and disarm the system before the ENTRY DELAY time expires or an alarm will occur. EXIT DELAY DISABLE (Available on System 236 and 236i ONLY) OPTION INSTALLED If this option is installed, the exit delay will be eliminated when arming your system using Instant Arming (page 11), Home Arming (page 12), or Instant Home Arming (page 13).
-
Page 20: Disarming The System
TO DISARM THE SYSTEM: Enter only through a TIME DELAY door. If the ENTRY PRE-ALARM option is installed, the keypad will sound constantly until 10 OPTION INSTALLED seconds before the delay time expires (or the panel is disarmed), then beep rapidly for the last 10 seconds. -
Page 21: After An Alarm
A.TER AN ALARM OCCURS: Enter your PIN and push the # key. REQUIRED This will silence the bell/siren and disarm the system. The display will read ALARM ZONE. To see which zones are in alarm, push the # key. If this is a false alarm and no emergency response is needed, call our central station IMMEDIATELY at cancel the alarm. -
Page 22: Options
Systems 238, and 2316 have not been investigated by Underwriters Laboratories for compli- ance with UL 1637, Home Health Care Signalling Equipment. NOTE: When used with System 236 or 236i, this key functions as POLICE/PANIC. .IRE KEY OPTION... -
Page 23: Duress (Systems 238, 238I, 2316, 2316I ,236I Only)
POLICE/PANIC KEY OPTION INSTALLED When this option is installed, holding down the POLICE key for three seconds will trigger an alarm. The keypad will beep twice to confirm the alarm condition. DURESS ALARM (Available on Systems 238 and 2316 ONLY) OPTION INSTALLED Should an intruder force you to turn your security system off or on, you can... - Page 24 DURESS ALARM (Available on Systems 236i ONLY) OPTION INSTALLED Should an intruder force you to turn your security system off or on, you can send a silent DURESS signal to our central station by entering User Code 6 - a code designated exclusively for a DURESS signal. Your system will appear to be operating normally.
-
Page 25: Guest Combination (Systems 238, 2316 Only)
GUEST COMBINATION (Not Available on System 236/236i) OPTION INSTALLED The SYSTEM 238 and 238i can store up to 8 PINs and the SYSTEM 2316 and 2316i up to 32 PINs. In these systems, PIN #8 can be programmed as a GUEST COMBINATION that will only be valid for a specified number of successive days. -
Page 26: Changing A User Pin - System 238
System: 238 and 238i ONLY CHANGING A USER PIN - SYSTEM 238 and 238i User 1 can use his Master PIN to change the PINs of Users 1 - 8. Enter your Master PIN, push MASTER PIN REQUIRED key, enter the digit "0", then push the # key. - Page 27 System: 238 and 238i ONLY Exit the programming mode by pushing the key, then the # key. Make sure the new PIN works. After leaving the programming mode, Arm and Disarm your system to ensure that the new PIN functions properly.
-
Page 28: Deleting A User Pin - System 238
System: 238 and 238i ONLY DELETING A USER PIN - SYSTEM 238 and 238i OPTION INSTALLED User 1 can use his Master PIN to delete the PINs of Users 2 - 8. Enter your Master PIN, push MASTER PIN REQUIRED key, enter the digit "0", then push the # key. -
Page 29: Changing A User Pin - System 236, 2316
System: 236, 236i ,2316, 2316i ONLY CHANGING A USER PIN - SYSTEM 236, 236i, 2316, & 2316i User 1 can use his Master PIN to change the PINs of Users 1 - 6 (on System 236 and 236i) or Users 1 - 32 (on System 2316 and 2316i). - Page 30 Enter the new PIN and push the # key. The new PIN must be four digits long for System 236/236i. The new PIN can be from two to five digits long for System 2316/2316i. NOTE: On System 2316i, User Code #32 is reserved for special functions using the Optional Relay Output Module.
-
Page 31: Deleting A User Pin - System 236, 2316
System: 236, 236i, 2316 and 2316i DELETING A USER PIN - SYSTEM 236, 236i, 2316 & 2316i User 1 can use his Master PIN to delete the PINs of Users 2 - 6 (on System 236 and 236i) or Users 2 - 32 (on System 2316 and 2316i) (See note pg. - Page 32 System: 236, 236i, 2316 and 2316i ONLY Enter zero and push the # key. System: 2316/2316i Enter zero (again) and push the # key. Exit the programming mode by pushing the key, then the # key.
-
Page 33: Resetting Smoke Detectors
RESETTING SMOKE DETECTORS OPTION INSTALLED When a smoke detector is triggered, the keypad display will read ALARM ZONE, and the bell/siren will sound. Before you do anything else, evacuate the building. Don't go back inside until you're sure it's safe. When it's safe to do so, you can reset the smoke detectors by doing the following: Push the... - Page 34 DOOR CHIME OPTION INSTALLED When this option is installed, all keypads on the premises will beep for two seconds each time a designated zone is faulted. To turn the door chime (on all keypads) on and off: Push the key, enter the digit "5", then push the # key.
-
Page 35: Testing Your System
LOCAL SYSTEM TEST This option allows on-site testing of each zone in your system. To initiate the SYSTEM TEST: Enter your PIN (if required), REQUIRED push the key, enter the digit "6", the digit "0", then push the # key. The display will read WALK TEST. -
Page 36: Standby Battery Test
STANDBY BATTERY TEST OPTION INSTALLED Your alarm system can be programmed to automatically test its standby battery every 24 hours. During the test, AC power is turned off in order to monitor the battery under load. To manually test the standby battery, push the key, enter the digit "6", the digit "4", then push the # key. -
Page 37: Central Station Test
CENTRAL STATION TEST OPTION INSTALLED This option tests the reporting capability of your system by sending a test message to the central station. Weekends are the best time for the CENTRAL STATION TEST. To schedule one, call our central station at: CENTRAL STATION To initiate the CENTRAL STATION TEST: Enter your PIN (if required),... -
Page 38: Telephone Trouble
I. YOU HAVE TELEPHONE TROUBLE: .irst, unplug the control panel from its telephone jack to determine if the alarm system is causing the trouble. The phone jack is located If the trouble goes away when you unplug the control, call us for service. If you still have telephone trouble after unplugging the alarm system, plug the system back in, then call your telephone company. -
Page 39: Customizing Your Keypads
You can customize the characteristics of ALPHA Plus keypads by using the combinations shown below. .or example, if you have two keypads on site, you can turn the backlight of one keypad off, while leaving the backlight of the other on. To turn the backlight on or off, push the enter the digit "8", then push the # key. -
Page 40: Language Versions
The ALPHA Plus keypad is programmed to display messages in several different languages. Use the combination shown in the left column to access your language. The column checked indicates the languages available on your system. Key Combinations Alpha Plus I Alpha Plus II ENGLISH ENGLISH... -
Page 41: Smoke Detector Placement
We subscribe to the recommendations for the number and placement of smoke and/or heat detectors found in the National .ire Protection Association's Standard #72, Chapter 2 (N...P.A. Batterymarch Park, Quincy, MA 02269). .or the best early warning, fire detection devices should be installed in all rooms and areas of the premises. -
Page 42: Emergency Evacuation
Every household should establish and regularly practice an escape plan in the event of a fire. The following steps, recommended by the National .ire Protection Association, can be used as a guide in developing your own emergency plan. Plan on your detector or alarm system sounders waking all Establish a meeting place outdoors, away from the house, where occupants. -
Page 43: Definitions
Signals sent to the central station contain information about the access any of the special functions that require a combination. nature of the alarm condition, allowing the dispatcher on duty to (With System 236/236i, the PIN number must be four digits long.) appropriately respond. ZONE ENTRY DELAY One of the protected areas in your premises. -
Page 44: Limitations Of Your Alarm System
THE LIMITATIONS O. YOUR ALARM SYSTEM While your alarm system is reliable and sophisticated, it does not offer guaranteed protection against burglary or fire. Any alarm system, whether commercial or residential, is subject to compromise or failure-to-warn for a variety of reasons. These include: Intruders may gain access through unprotected openings or have the technical sophistication to bypass an alarm sensor or disconnect an alarm warning device. -
Page 45: Test Procedures Index
As required by UL Standard 1023, your alarm system is a Grade "A" system (see definition on page 43). Alarm system malfunctions and failures are caused most often by INADEQUATE MAINTENANCE. Your alarm system should be tested weekly to make sure that all detection devices are working properly. -
Page 46: Zone Description List
ZONE LOCATION BYPASS... - Page 47 ZONE LOCATION BYPASS...
- Page 48 ZONE LOCATION BYPASS...
- Page 49 Notes...
-
Page 50: Cc Notice / Industry Canada
.CC NOTICE WARNING: This device is intended to be installed by a professional alarm installer. The user shall be cautioned that changes or modifications not expressly approved by C&K SYSTEMS could void the user’s authority to operate the equipment. .CC Rules PART 15 This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the .CC Rules. - Page 51 Industry Canada NOTICE: The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. Industry Canada does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.
- Page 52 http://www.cksys.com C&K is a registered trademark of C&K Copyright 1997 C&K SYSTEMS, Inc. Components, Inc. All Rights Reserved 5-051-373-00 Rev C...
