MadgeTech RFC1000 Product User Manual
Wireless transceiver for the rfot, therm-a-lert and
rf2000a data loggers
Hide thumbs
Also See for RFC1000:
- User manual (7 pages) ,
- Product information card (4 pages) ,
- Product user manual (16 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MadgeTech RFC1000
Summary of Contents for MadgeTech RFC1000

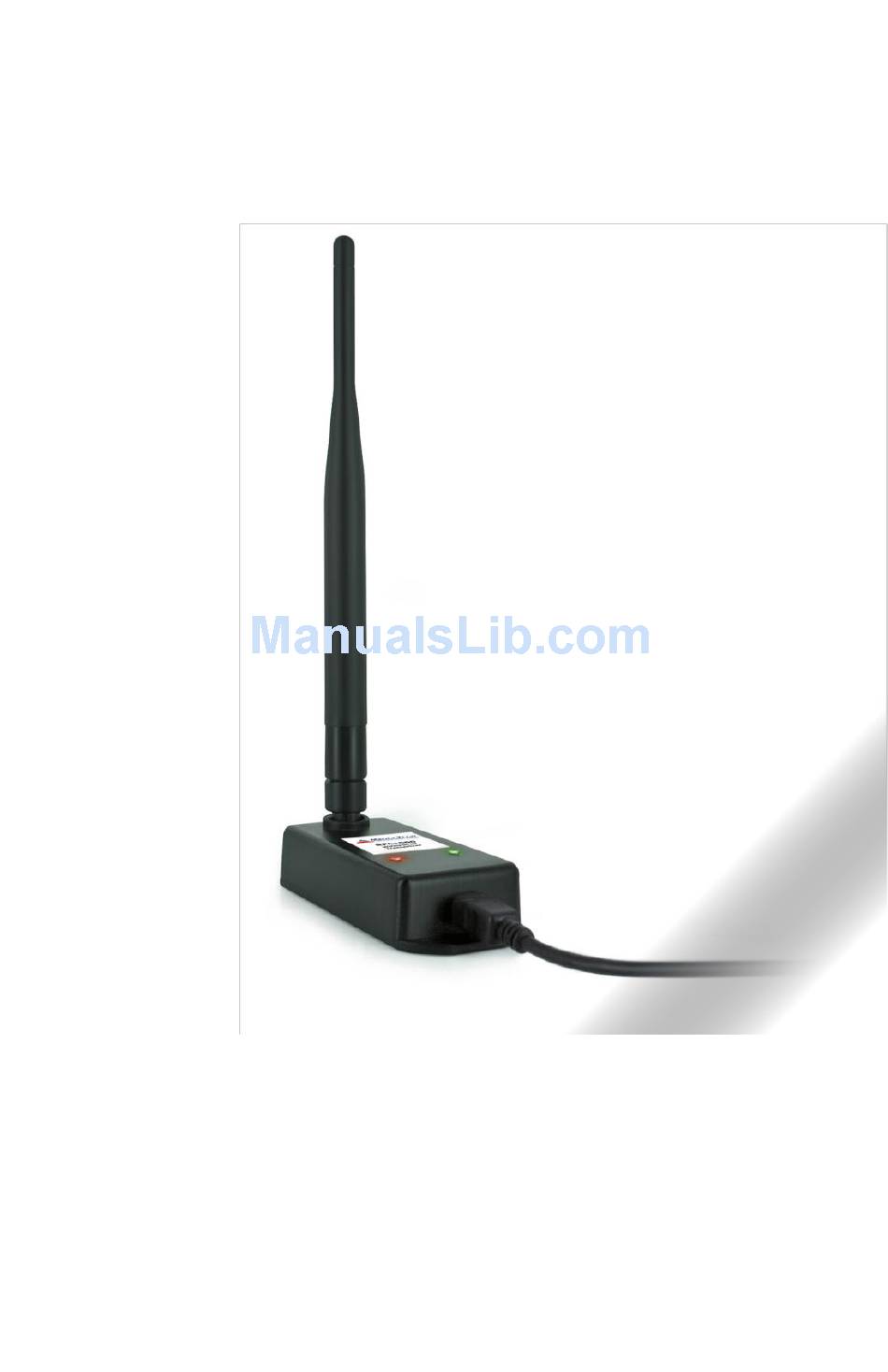

- Page 1 RFC1000 Wireless Transceiver for the RFOT, Therm•A•lert and RF2000A data loggers...
-
Page 2: Table Of Contents
Operating Environment The RFC1000 is rated for use in an environment with temperatures from -20 °C to 85 °C (-4 °F to 185 °F) and a humidity range of 0 %RH to 95 %RH non-condensing. The RFC1000 is rated IP40 and is protected against solids that are greater than 1 mm in size. -
Page 3: Software Installation
If transmitting over a distance greater than 1,000 feet indoors, 4,000 feet outdoors or there are walls, obstacles or corners that need to be maneuvered around, set up additional RFC1000’s as needed. Plug each one into an electrical outlet in the desired locations. Software Installation... -
Page 4: Activating & Deploying The Data Logger
Activating & Deploying the Data Logger Connect the RFC1000 wireless transceiver to the Windows PC with the provided USB cable. Additional RFC1000’s can be used as repeaters to transmit over greater distances. Plug each one into an electrical outlet in the desired locations. -
Page 5: Channel Programming
If all of the devices are not on the same channel, the devices will not communicate with one another. The RFC1000 is programmed by default on channel 25. - Page 6 Channel DIP Switch Orientation The images below show the orientations available of the switches for each channel.
-
Page 7: Troubleshooting
Troubleshooting Wireless Transceiver Problems Check that the software properly recognizes the connected RFC1000 wireless transceiver. If the wireless data logger is not appearing in the Connected Devices list, it may be that the RFC1000 is not properly connected. In the MadgeTech 4 Software, click the File button, then click Options. -
Page 8: Compliance Information
Still Need Help? For additional troubleshooting information, contact the MadgeTech Customer Support Team at (603) 456-2011 or support@madgetech.com. Compliance Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 9: General Specifications
General Specifications Interface Type USB (to PC), Wireless (to Data Logger) RFC1000: -20 °C to +85 °C (-4 °F to +185 °F), 0 %RH to 95 %RH non- condensing Operating Environment Power Supply: 0 °C to +40 °C (+32 °F to +104 °F), 20 %RH to 85 %RH non-...
