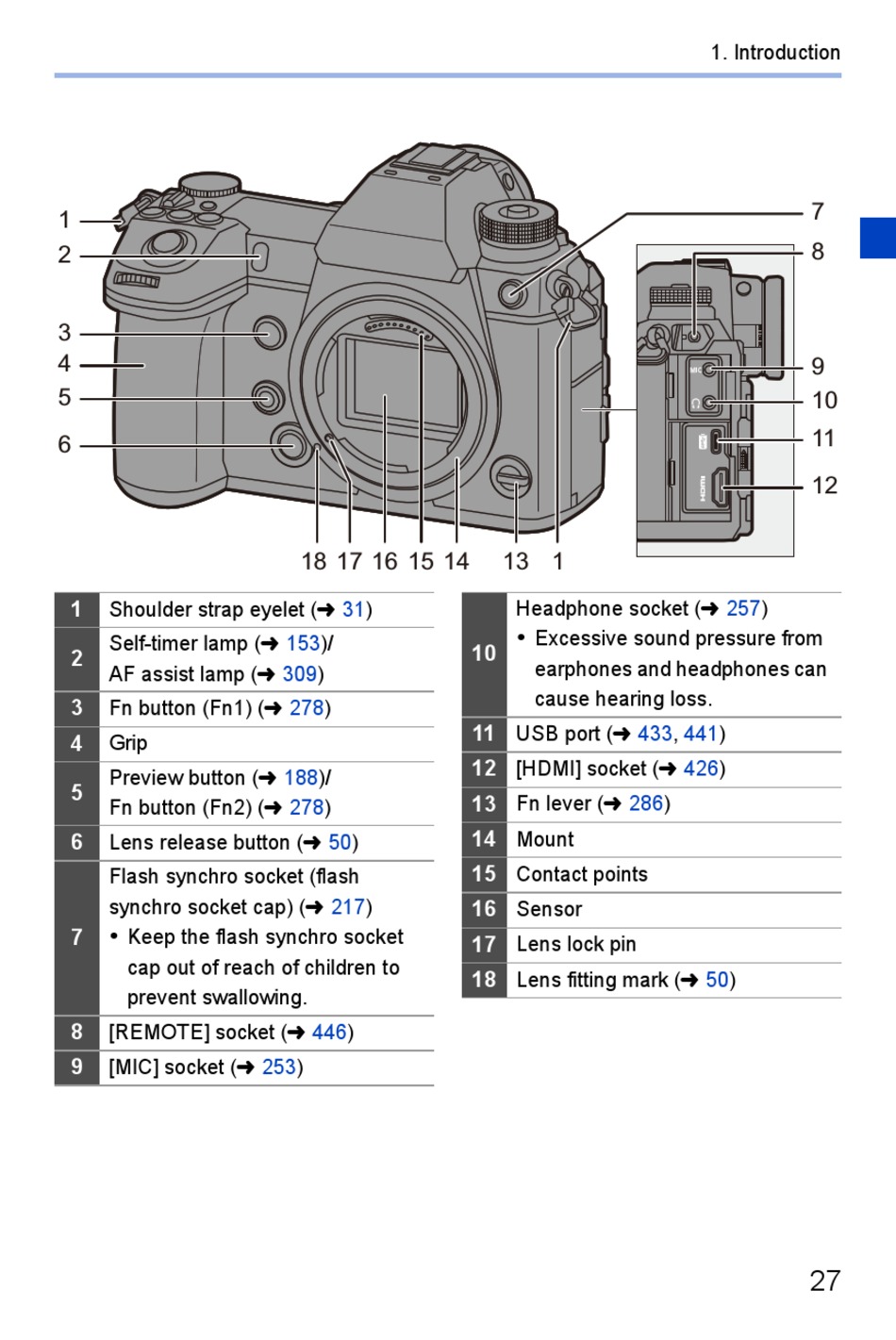

Panasonic Lumix S1R Operating Instructions Manual page 27

1
2
3
4
5
6
1
Shoulder strap eyelet (l 31)
Self-timer lamp (l 153)/
2
AF assist lamp (l 309)
3
Fn button (Fn1) (l 278)
4
Grip
Preview button (l 188)/
5
Fn button (Fn2) (l 278)
6
Lens release button (l 50)
Flash synchro socket (flash
synchro socket cap) (l 217)
7
Keep the flash synchro socket
0
cap out of reach of children to
prevent swallowing.
8
[REMOTE] socket (l 446)
9
[MIC] socket (l 253)
18 17 16 15 14 13 1
Headphone socket (l 257)
Excessive sound pressure from
0
10
earphones and headphones can
cause hearing loss.
11
USB port (l 433, 441)
12
[HDMI] socket (l 426)
13
Fn lever (l 286)
14
Mount
15
Contact points
16
Sensor
17
Lens lock pin
18
Lens fitting mark (l 50)
1. Introduction
7
8
9
10
11
12
27
