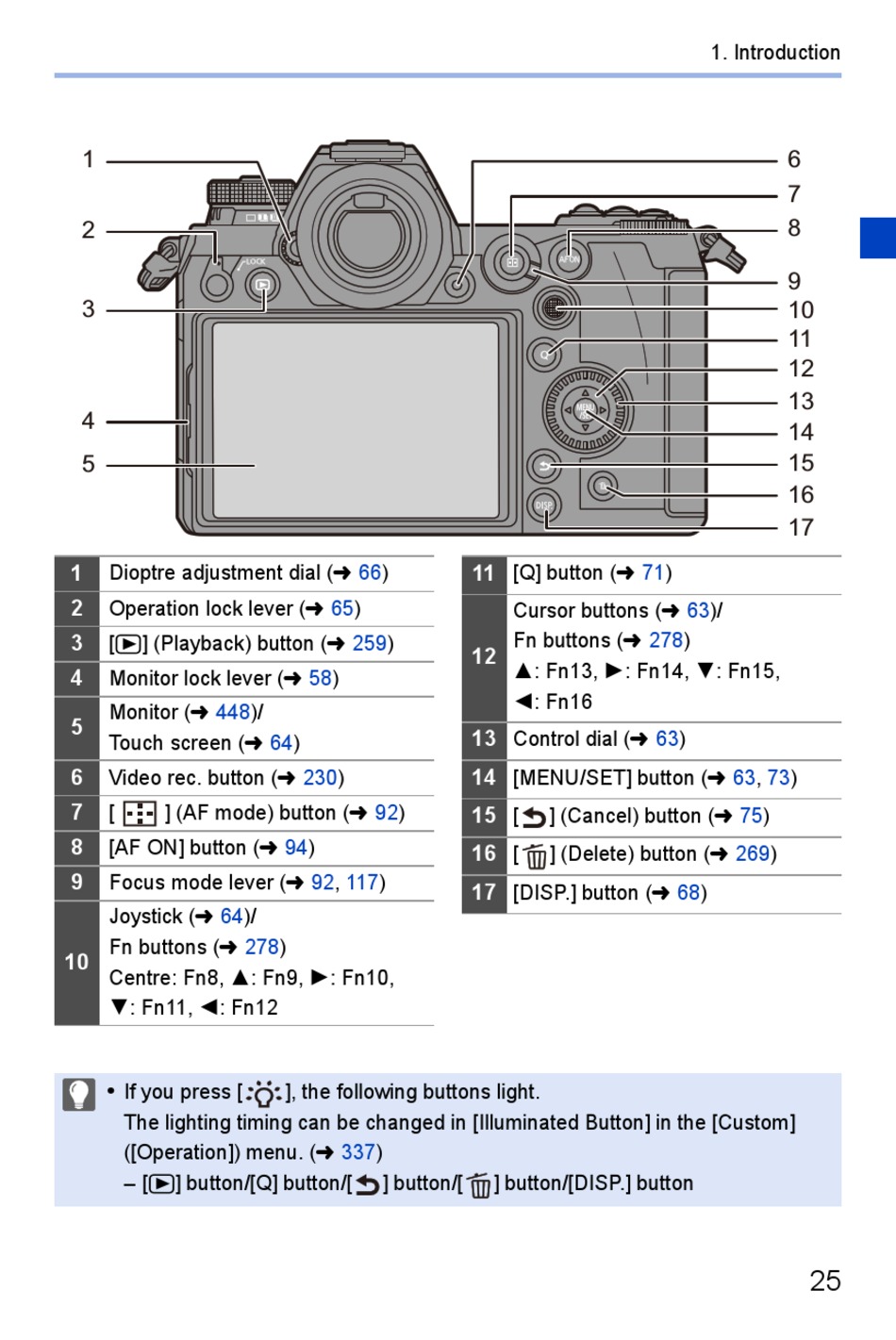

Panasonic Lumix S1R Operating Instructions Manual page 25

1
2
3
4
5
1
Dioptre adjustment dial (l 66)
2
Operation lock lever (l 65)
3
[(] (Playback) button (l 259)
4
Monitor lock lever (l 58)
Monitor (l 448)/
5
Touch screen (l 64)
6
Video rec. button (l 230)
7
[ ] (AF mode) button (l 92)
8
[AF ON] button (l 94)
9
Focus mode lever (l 92, 117)
Joystick (l 64)/
Fn buttons (l 278)
10
Centre: Fn8, 3: Fn9, 1: Fn10,
4: Fn11, 2: Fn12
If you press [
0
The lighting timing can be changed in [Illuminated Button] in the [Custom]
([Operation]) menu. (l 337)
– [(] button/[Q] button/[
], the following buttons light.
] button/[
11
[Q] button (l 71)
Cursor buttons (l 63)/
Fn buttons (l 278)
12
3: Fn13, 1: Fn14, 4: Fn15,
2: Fn16
13
Control dial (l 63)
14
[MENU/SET] button (l 63, 73)
15
[ ] (Cancel) button (l 75)
16
[ ] (Delete) button (l 269)
17
[DISP.] button (l 68)
] button/[DISP.] button
1. Introduction
6
7
8
9
10
11
12
13
14
15
16
17
25
