Edco GMS-14A Operator's Instruction Manual

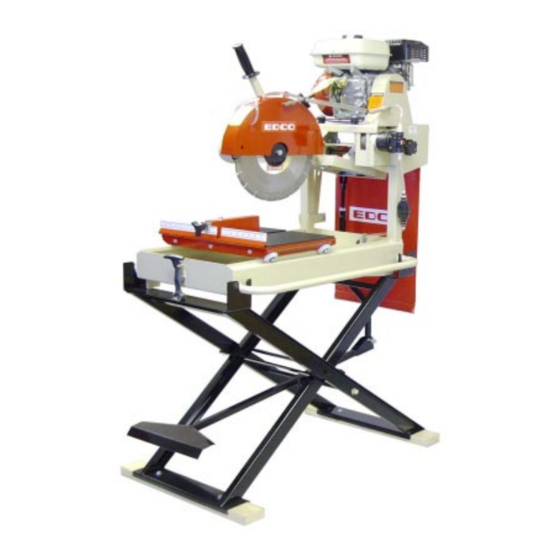

14” gasoline powered masonry saw with controlled dust operation
Hide thumbs

Advertisement

Quick Links

Download this manual

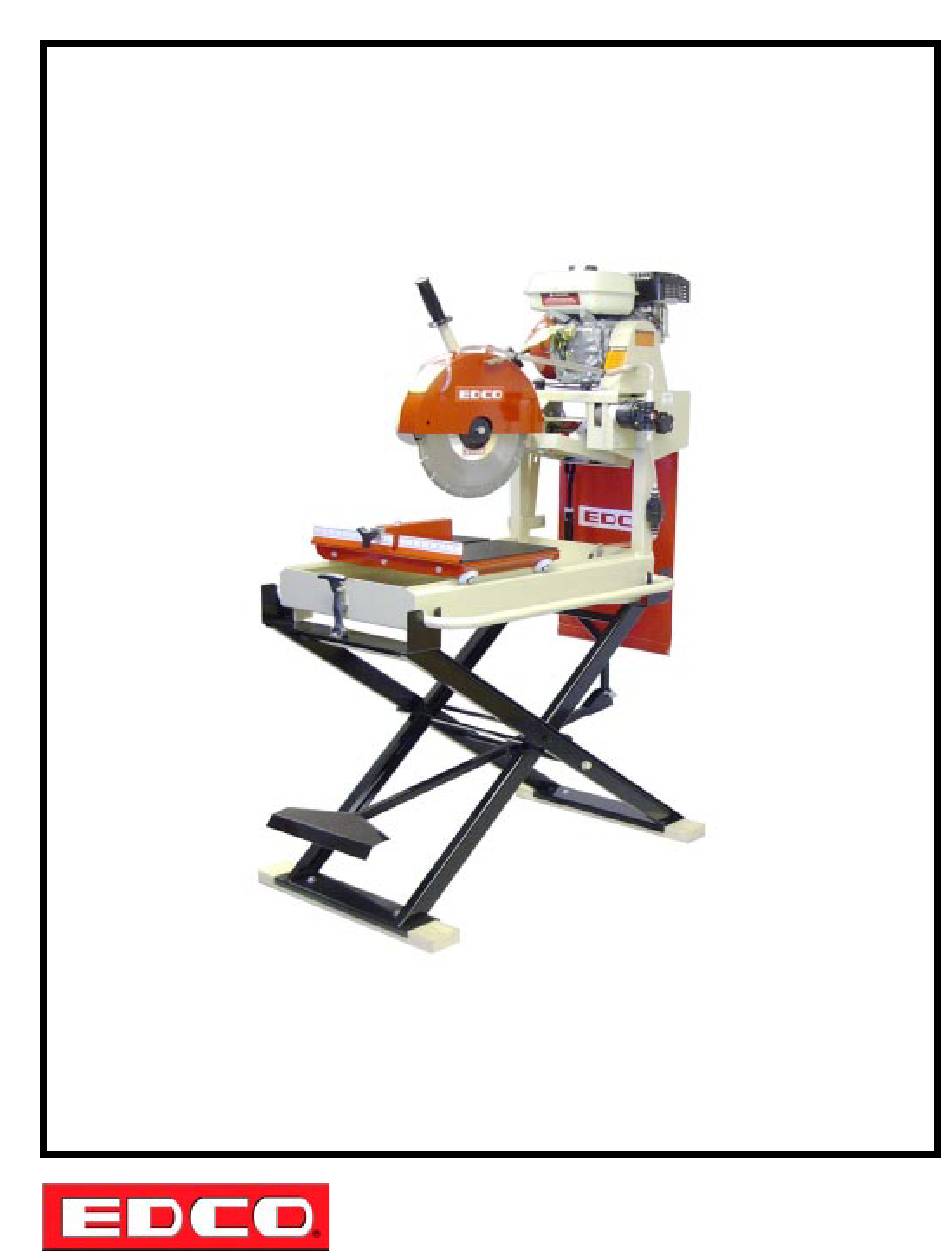

E-GMS14A-I-0402
Operator's Instruction Manual
GMS-14A
Shown with optional
Stand
14" Gasoline Powered Masonry Saw
with Controlled Dust Operation
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone (301) 663-1600 • 1-800-638-3326
Printed in USA
Fax (301) 663-1607 • 1-800-447-3326
© 2002
Page 1
Website: www.edcoinc.com • Email: sales@edcoinc.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the GMS-14A and is the answer not in the manual?

Questions and answers

Related Manuals for Edco GMS-14A

Summary of Contents for Edco GMS-14A

  • Page 1 E-GMS14A-I-0402 Operator’s Instruction Manual GMS-14A Shown with optional Stand 14” Gasoline Powered Masonry Saw with Controlled Dust Operation 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 © 2002 Page 1 Website: www.edcoinc.com •...
  • Page 2 (GFI) outlet, and is undamaged. Failure to do so could result in dismemberment or death. • Do not modify the machine. Use only genuine EDCO parts and • Check all electrical cables - be sure connections are tight and accessories. Repairs and service should be performed by EDCO or cable is continuous and in good condition.

  • Page 3: Table Of Contents

    Figure 1 HOW TO ORDER REPAIR PARTS Overall Dimensions without optional stand To insure product safety and reliability, always use genuine EDCO replace- ment parts when making repairs to the equipment. Height 36” 91.5cm When ordering parts, please specify the MODEL and SERIAL NUMBER of the machine as given on the NAMEPLATE.

  • Page 4: Safety Guidlines

    Death of serious injury can result if this machine is used improperly. Safety Guidelines Eye and ear protection must be worn at all times while the GMS-14A is in use. During normal opera- tion, sound pressure levels exceed 92dBA. Use only ANSI approved safety glasses to help prevent eye injury.

  • Page 5: Operating Instructions

    E-GMS14A-I-0402 Operating Instructions Diagrams shown with Honda Cyclone Dual-Filter Element Engine as an example. Consult the Engine Manufacturer’s Owner’s Manual for information on specific models. A. Air Filter B. Fuel Tank C. On/Off Switch D. Recoil Starter E. Cyclone Housing F.
  • Page 6 If dry cutting, attach a vacuum to the end of the optional dust lood. (Figure 7) Note: While the GMS-14A was designed to be used with a standard shop vac, EDCO recommends using a heavy duty vacuum such as the VAC-150. The VAC-150 has the advantage of a Self-Purging System to help keep concrete dust from building up on the filter and a larger filter area to maintain performance during use, thus reducing time wasted on frequently cleaning a standard shop vac and filter media.
  • Page 7 E-GMS14A-I-0402 Starting the Engine: • Be sure blade is clear of item to be cut. • Determine that the recoil starter assembly turns freely, starter rope pulls easily, and the rope retracts properly. • Follow the instructions supplied in the engine manufacturer’s Owner’s Manual for starting engine. •...

  • Page 8: Maintenance

    Be sure the blade is appropriate for the job and matches the arbor speed and mounting configuration on this saw. (See page 9) The GMS-14A was designed to be used with diamond saw blades Step One: Remove spark plug lead from spark plug.
  • Page 9 E-GMS14A-I-0402 Belt Adjustment and Replacement: • Periodically check to be sure the belts are undamaged and that they are at the proper tension. Slipping belts will overheat causing the cutting speed to be limited, shortening the life of the belts. Over-tensioned belts will shorten the life of the belts &...
  • Page 10 E-GMS14A-I-0402 Change Engine Oil: • Check Engine Oil before each operation. Open the filler cap and look at the dip stick. (Figure 17) Oil should be clearly visable both on the stick and in the cavity and should look fairly clean. Running the machine on dirty oil or when the oil is low will result in damage to the equipment.

  • Page 11: Maintenance Schedule

    Repairs are to be Read and follow instructions done by authorized in the Engine Manufacturer’s EDCO DEALERS only. Manual Maintenance Schedule This is for a quick reference to the information supplied in the Maintenance portion of this manual. Follow the Engine Manufacturer’s...

  • Page 12: Limited Equipement Warranty

    EDCO will not in any event be liable to the user, any successors in interest or any beneficiary or assignee This warranty, does not apply to failure occurring as a...
