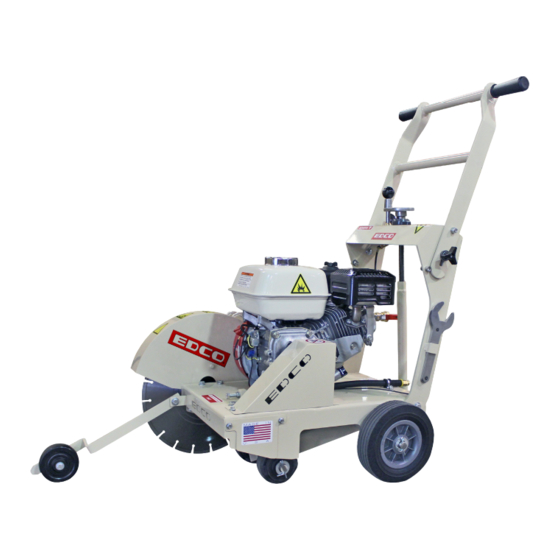

Edco KL-14 Operating Instructions Manual
14” walk behind saw
Hide thumbs
Also See for KL-14:
- Operator's instruction manual (28 pages) ,
- Operator's instruction manual (18 pages)
Subscribe to Our Youtube Channel
Related Manuals for Edco KL-14
Summary of Contents for Edco KL-14
- Page 1 Tool Rental Center MANUAL EDCO KL-14 Revised Starting Serial #: 171110122 39200HD-0917 Page 1 Reorder Part # HDTR-SEC-TM Class # 2985...
-
Page 2: Safety Messages And General Instructions
READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY SAFETY MESSAGES • Do not disconnect power by pulling cord. To disconnect, grasp MESSAGES the plug, not the cord. -
Page 3: Table Of Contents
HOW TO ORDER REPLACEMENT PARTS FILL IN INFORMATION BELOW To insure product safety and reliability, always use genuine EDCO replacement parts when making Date of Purchase ______________________________ repairs to the equipment. When calling for parts, specify the MODEL and ... -
Page 4: Operation Controls
OPERATING CONTROLS MODEL KL-14 / 14” WALK BEHIND SAW Collapsable Handle Handle Lock Choke Water Valve Rope Pull Guide Bar Depth Control On/Off Switch Throttle Please Note: Controls shown are for the model indicated. The location of these controls may vary on the different models. -
Page 5: Operating Instructions
IMPORTANT NOTES Operating Instructions • Read and understand all operating instructions before operating this equipment. Death or serious injury can result if this machine is used improperly. • Concrete saws are designed to be used to cut flat horizontal concrete or asphalt slabs using diamond saw blades. - Page 6 Operating Instructions • FOR WET CUTTING: Attach the water supply. A flow rate of approximately 2 gallons per minute (minimum) is required. Attach the water hose to the coolant valve. Use the valve to control the flow of water. FOR DRY CUTTING: Provide a respirator and dust control system. •...
-
Page 7: Maintenance Instructions
Do not use warped, twisted, or out-of-balance blades. Unbalanced blades will wear excessively, vibrate and damage both arbor shaft and bearings. Do not use a blade without a drive pinhole (Figure 5) . For safety reasons, EDCO does not recommend the use of any abrasive blades. Abrasive blades can •... -
Page 8: Changing Blade
Never exceed the maximum operating speed of the blade. Be sure to match the blade speed rating with the arbor shaft speed on the machine. The standard models of the KL-14, SK-14, SB-14, DS-18 have an arbor shaft speed (uploaded) of 3600 RPM and 3000 RPM under load. -
Page 9: Lubrication Points
Grease Bearings Every 4 Hours of Use NOTE: Wipe grease fittings clean before servicing. Grease Fittings Page 9... -
Page 10: Maintenance Schedule
Maintenance Schedule Repairs are to be Read and follow instructions done by authorized in the Engine Manufacturer’s EDCO DEALERS only. Manual Follow Engine Manufacturer’s Maintenance Schedule Visual Inspection of Entire Machine Check Engine Oil Change Engine Oil* (Refer to Engine manual) -
Page 11: Notes
NOTES This page intentionally left blank. Page 11... -
Page 12: Illustration 1: Main Grouping
ILLUSTRATION 1: MAIN GROUPING Page 12... - Page 13 SCREW, SKT HD. CAP 1/2-13 X 4” ZINC 14023 KNOB, BALL 1-3/8 W/ 1/2-13 THD BLK 55010 SPACER, HANDWHEEL 5/8”ID X 3/4”L 10046 NUT, HEX 5/8-11 ZINC 54005 LINKAGE, CUT-CONTROL, KL-14 54006 FORK, KL-14 10202 SCREW, CAP 1/2-20 X 3 54022 FORK LINKAGE SPACER 10205...
-
Page 14: Illustration 2: Arbor & Blade Guard Grouping
ILLUSTRATION 2: ARBOR & BLADE GUARD GROUPING Page 14... - Page 15 PARTS LISTING - ILLUSTRATION 2 :ARBOR & BLADE GUARD GROUPING ITEM # PART # DESCRIPTION QTY. 54011A ARBOR, ASSY. COMPLETE (ITEMS 2-10) 54011 ARBOR SHAFT, 18.5” L, KL-14 50222 BEARING, BALL 1” TPB 40317 KEY 1/4SQ X 1-5/8 55009 WASHER, LOCK, INT. TOOTH 1” 50019...
-
Page 16: Illustration 3: Engine & Belt Drive Grouping
ILLUSTRATION 3: ENGINE & BELT DRIVE GROUPING Page 16... - Page 17 CLAMP, LOOM, 5/8” (SAE SIZE 10) 10846 SCREW, CAP STSHW 1/4-20 X 1/2 10038 WASHER, LOCK 1/4 ZINC 54019H LEVER, THROTTLE, KL-14, 11-1/2” 10830 SCREW, MACHINE PPH 10-32 X 1/2 10832 NUT, KEPS LOCK 10-32 ZINC 54004 SWITCH, POWER FOR SUBARU SP210...
-
Page 18: Illustration 4: Wiring Diagram
WIRING DIAGRAM Page 18... -
Page 19: Decals
Page 19... - Page 20 Page 20 SEC.TM.4.04 39100HD-0217...
