E-SDE14-I-0808
Operator's Instruction Manual
EDCO SDE-14
Manual - Portable

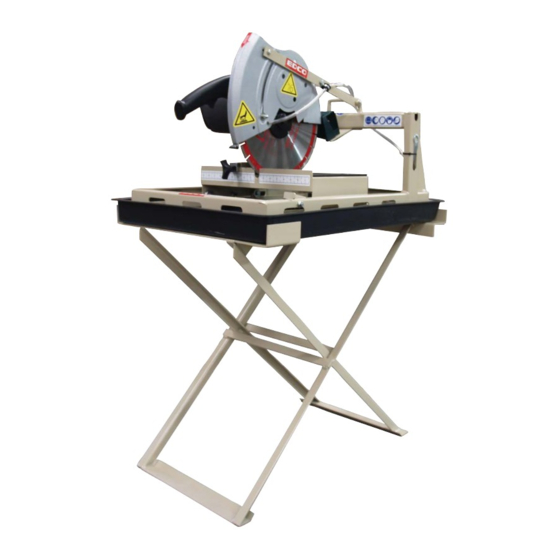

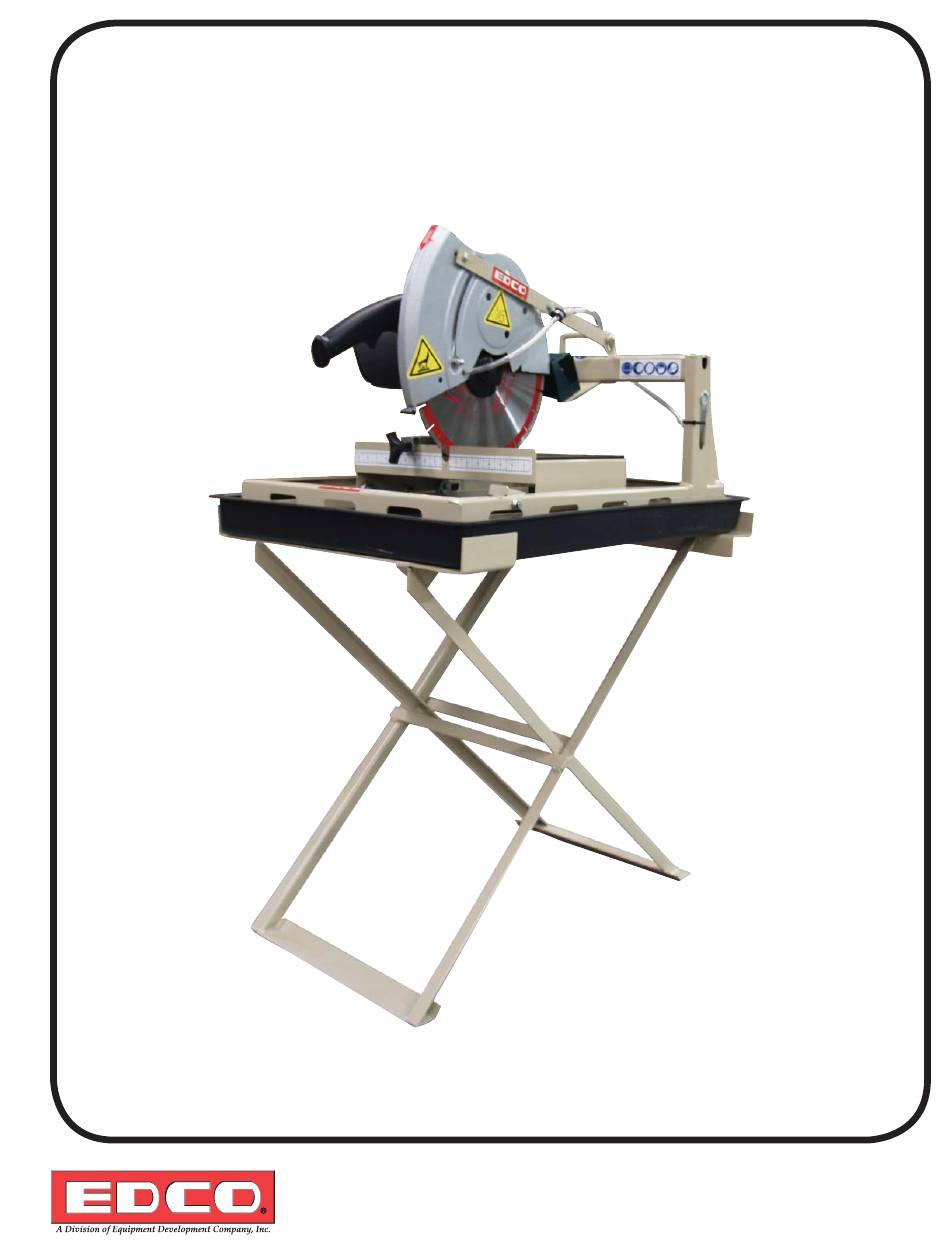

Note: Shown on optional stand.
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone (301) 663-1600 • 1-800-638-3326
Printed in USA
Fax (301) 663-1607 • 1-800-447-3326
©2008
Website: www.edcoinc.com
TVW
Email: sales@edcoinc.com
Page 1
Advertisement
Table of Contents
Related Manuals for Edco SDE-14
Summary of Contents for Edco SDE-14
- Page 1 E-SDE14-I-0808 Operator’s Instruction Manual EDCO SDE-14 Manual - Portable Note: Shown on optional stand. 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2008 Website: www.edcoinc.com Email: sales@edcoinc.com...
- Page 2 E-SDE14-I-0808 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. • Do not disconnect power by pulling cord. To disconnect, grasp SAFETY SAFETY MESSAGES the plug, not the cord.
- Page 3 Figure 1 HOW TO ORDER REPAIR PARTS EDCO SDE-14 To insure product safety and reliability, always use genuine EDCO replacement parts when making repairs to the equip- “A” 21.5” (54.6mm) ment. 26” (66.4mm) “B”...
- Page 4 E-SDE14-I-0808 Read and understand this Operator’s Instruction Manual, and the Engine Manufacturer’s Owner’s Manual before operating this equipment. Death of serious injury can result if this machine is used improperly. Safety Guidelines Eye and ear protection must be worn at all times while the saw is in use. During normal operation, sound pressure levels exceed 92dBA.
- Page 5 E-SDE14-I-0808 Operating Instructions Before Starting: • Read and understand the instructions supplied by the engine manufacturer. • Familiarize yourself with all saw controls. • Visually inspect the entire machine for damage or wear. Remove excess dirt or debris. Check that all nuts, bolts and screws are tight.
- Page 6 E-SDE14-I-0808 Starting the Electric Motor: • Be sure blade is clear of the item to be cut. • Turn on the motor. • Listen for motor to reach operating speed. Do not use if motor hums or does not reach operating speed within a few seconds.
- Page 7 E-SDE14-I-0808 Maintenance Inspect and Clean Air Filter: (Picture above shows fi lter element). • Check air fi lter at least once daily. • Dirt build up on the fi lter will cause excessive motor wear and overheating. • To clean fi lter loosen the screw holding the band in place, remove the band and fi...
- Page 8 *Seller reserves the right to alter payment terms. EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been 3.
