USE AND INSTALLATION GUIDE
EN
INSERT

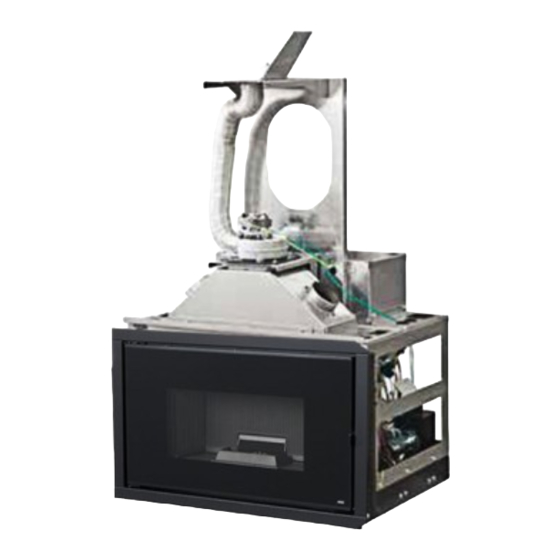

VIVO 90 COMFORT AIR 9 M1
SLIM/BASIC version
VIVO 90 COMFORT AIR 11 M1
SLIM/BASIC version
PART 1 - REGULATIONS AND ASSEMBLY
Instructions in English
