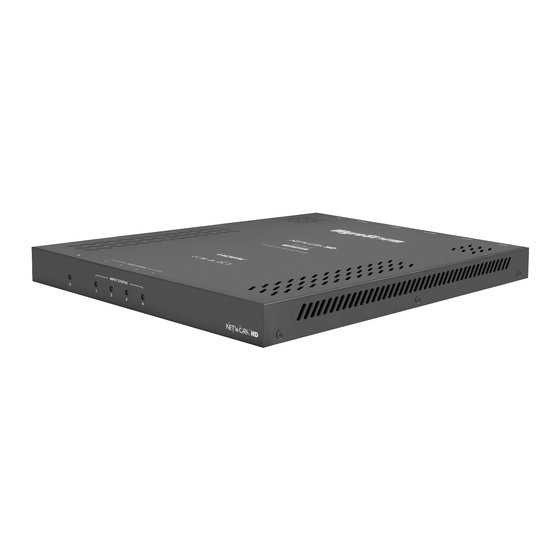

Wyrestorm NETWORKHD 100 Series Installation Manual

Wyrestorm NETWORKHD 100 Series Installation Manual

Hide thumbs Also See for NETWORKHD 100 Series:

Advertisement

Quick Links

NetworkHD™ Installation Guide
100 | 200 | 400 | 600 Series
Document Revision:
v3.0
Document Date:
May 7
Supported Firmware: v3.1 or higher
Copyright © 2018 WyreStorm Technologies | Product specifications or appearance subject to change without notice.
2018
th

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NETWORKHD 100 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Wyrestorm NETWORKHD 100 Series

  • Page 1 NetworkHD™ Installation Guide 100 | 200 | 400 | 600 Series Document Revision: v3.0 Document Date: May 7 2018 Supported Firmware: v3.1 or higher Copyright © 2018 WyreStorm Technologies | Product specifications or appearance subject to change without notice.
  • Page 2: Important! Safety Information

    SWITCHED OFF. Power is passed along transmissions so connecting and disconnecting cables while powered can result in damage to circuitry or possible injury. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 3: Table Of Contents

    Troubleshooting ........................... 26 Contacting Technical Support ...................... 27 Revision History ........................... 27 Publication Disclaimer ......................... 27 © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343 3 of 28 NetworkHD Installation Guide | 180507...
  • Page 4: Overview

    Refer to the NetworkHD Technical Reference Guide for details on Network guidelines and requirements. PC with the WyreStorm Management Suite v3.1 or higher installed ...................... All required cables and connectors ................................Latest Configuration Software, Firmware, and Documentation for NetworkHD ...................
  • Page 5: Installation

    Rack Mounting For AV and IT racks, WyreStorm offers rack mount kits to allow for quick and easy installation that provides a clean properly ventilated installation. All rack mount kits provide a steel housing that can be used in a central and secure location for the components.
  • Page 6: Nhd-200-Tx Dipswitch Settings

    PC with a DVI output, to an encoder. If a passive converter/cable is used a color space issue may occur. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 7: System Configuration

    From the Management Suite Menu select the Maintenance Tool. When prompted, select Network and the connection method. Firmware updates for NetworkHD can always be found at WyreStorm.com in the Downloads tab of any NetworkHD product. Once any applicable firmware updates have been downloaded perform the following.
  • Page 8 Note: Be vigilant in choosing the correct .bin file for the currently selected device type. Installing the wrong firmware file for a NetworkHD component could break the product. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 9 For quicker reference to the Maintenance Tool or the firmware update process refer to the NetworkHD 100 & 200 Series Firmware Update Application Note available for download at WyreStorm.com. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343 9 of 28 NetworkHD Installation Guide | 180507 Support@WyreStorm.com...
  • Page 10: Networkhd 000 Console Software

    • Ensure that your PCs IP address is in the same range as the NetworkHD components Reboot your PC © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343 10 of 28 NetworkHD Installation Guide | 180507 Support@WyreStorm.com...
  • Page 11: Configuring Ip Addresses

    Note that both ports cannot be on the same subnet and must be on independent subnets. If there is only one subnet, then only one port connection is needed. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 12: Creating Aliases

    Creating Aliases Aliases can be set to encoders and decoders. If using a third-party control system driver from WyreStorm alias names should start with “INX” or “OUTX” where X is a number 1 or higher. The alias names can also include a “ - “ followed by display or source information.
  • Page 13: Creating Video Walls

    PC’s CTRL button and select 4 displays. Right click one of the selected displays and choose the option to Combine. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 14 However, if parts of the video image are being cut off, display measurements should be made to compensate appropriately © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 15 11. Select a decoder and enter a value in the appropriate field. All values entered will be multiplied by 8 12. To populate the displays, drag and drop decoders and an encoder to the layout to build the video wall. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 16: Configuring The Nhd-600Tx/Rx Video/Audio Switching

    Play audio from a transmitter’s analog audio connector or to down mix from a transmitter’s HDMI source. • After making any changes in the Audio Tab a transmitter or receiver reboot is required. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 17: Configuring The Nhd-220-Rx Multiview

    • • All Mic Volume Mute for Line Level or Mic Volume • © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343 17 of 28 NetworkHD Installation Guide | 180507 Support@WyreStorm.com...
  • Page 18 • • Local HDMI Output Resolution HDCP Enable/Disable • • VGA Output Resolution © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343 18 of 28 NetworkHD Installation Guide | 180507 Support@WyreStorm.com...
  • Page 19: Configuring Cec & Rs-232 Control

    Bulk encoder and decoder video and latency settings can be adjusted by selecting the Video tab. Ensure the proper device format is selected prior to adjusting settings. NHD-IP products use the JPEG 2000 options and the NHD-100 or 200 series products use H.264. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 20: Uploading Configurations To The Nhd-000-Ctl

    Once the configuration file has been uploaded to the CTL you can then open the NetworkHD Touch application or begin to configure a third-party control system. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 21: Video Adjustments

    Low Delay mode will decrease the source to display latency to 60ms-90ms. This mode is typically configured in a presentation scenario where a computer mouse is being used. Image quality will be decreased in order to achieve a lower latency. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 22 Click the Video tab and select H.264 for 100 & 200 series or JPEG 2000 for 400 series. From the device list check any appropriate devices. Adjust any suitable settings and click Apply. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 23: Audio Adjustments

    Delay can be adjusted by the millisecond with a value between 0-500. Note that the NHD-600 has separate audio adjustments. Refer to Configuring the NHD-600TX/RX Video/Audio Switching for details. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343 23 of 28 NetworkHD Installation Guide | 180507 Support@WyreStorm.com...
  • Page 24: Preview Streams

    NetworkHD encoders appear at the right of the Console in the Other Devices section. Note: The WyreStorm Management Suite is only available on Windows OS. If using a Mac computer, network scanning software can be used to find encoders and their IP addresses. The NetworkHD Console is required if adjusting IP addresses.
  • Page 25 The preview stream is a unicast signal. This means every device that accesses the stream will add to the encoder’s processor load. Stress testing should be performed to ensure the main H.264 stream is not adversely affected. WyreStorm recommends no more than 5 receivers/preview panels per encoder stream.
  • Page 26: Troubleshooting

    If a device Alias cannot be set, another device may have been previously connected with the same Alias - ensure that the old device is offline and use the X in the CTL matrix to remove its record from the CTL. © Copyright 2018 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 27: Contacting Technical Support

    WyreStorm reserves the right to change software, control codes and specifications without notice. WyreStorm will not be liable for any use of this information or any changes it may make to those products. The use of this information constitutes an agreement by the user to these limitations and exclusions.
  • Page 28 Tel: +1 518-289-1293 UK/EMEA: Unit 22, Ergo Business Park, Swindon, Wiltshire, SN3 3JW, UK Tel: +44 (0) 1793 230 343 WyreStorm Technologies reserves the right to change the physical appearance or technical specification of this product at any time. Visit wyrestorm.com...
