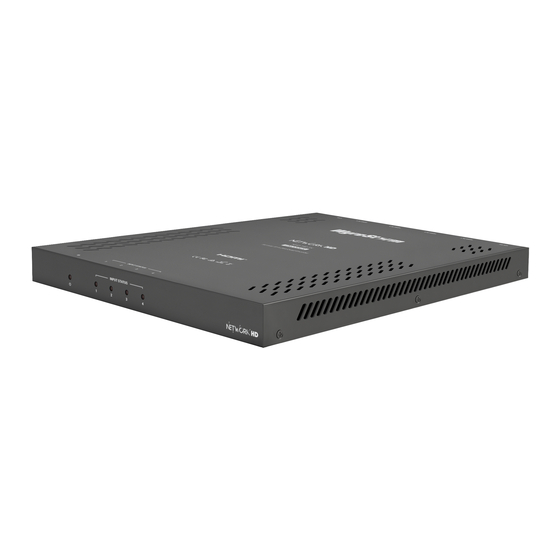

NetworkHD™ Installation Guide
100 | 200 | 400 | 600 Series
Document Revision:
Document Date:
Supported Firmware: v6.0.0 or higher
Copyright © 2020 WyreStorm Technologies | Product specifications or appearance subject to change without notice.
v6.0.0
March 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetworkHD 100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wyrestorm NetworkHD 100 Series

  • Page 1 NetworkHD™ Installation Guide 100 | 200 | 400 | 600 Series Document Revision: v6.0.0 Document Date: March 2020 Supported Firmware: v6.0.0 or higher Copyright © 2020 WyreStorm Technologies | Product specifications or appearance subject to change without notice.
  • Page 2: Important! Safety Information

    SWITCHED OFF. Power is passed along transmissions, so connecting and disconnecting cables while powered can result in damage to circuitry or possible injury. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 3: Table Of Contents

    NHD-000-CTL Controller Network Ports ............................9 System Configuration ....................... 10 NetworkHD IP Addresses .................................. 10 Firmware Updates ....................................11 WyreStorm Management Suite (WMS) ............................12 NetworkHD Maintenance Tool ................................. 12 NetworkHD Console Software ................................15 Configuring IP Addresses .................................. 16 Creating Aliases ....................................
  • Page 4: Overview

    Refer to the Switch Configuration Guides for details on switch configuration PC with the WyreStorm Management Suite v1.7 or higher installed ................. All required cables and connectors ............................Latest Configuration Software, Firmware, and Documentation for NetworkHD ............. Download from Website or by using this link.
  • Page 5: Installation

    Rack Mounting For AV and IT racks, WyreStorm offers rack mount kits to allow for quick, easy and properly ventilated. All rack mount kits provide a steel housing that can be used in a central and secure location for the components.
  • Page 6 – the 10GbE port must be used for proper 600 Series operation. For more detail on the 600 Series LAN port, please see NetworkHD Technical Reference Guide. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 7 IMPORTANT! IR TX/RX Guidelines Using WyreStorm infrared emitters and receivers is the IR TX Port Pinout best way to ensure that compatible IR coding formats are Connection for IR TX (transmit) uses a 3.5mm (1/8in) transmitted and received by the NetworkHD system. Other mono plug.
  • Page 8: Nhd-200-Tx Dipswitch Settings

    DVI-I input connector. These DIP switches should be configured before mounting the NHD-200-TX. DVI-D YPbPr HDMI CVBS © Copyright 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343 8 of 41 NetworkHD Installation Guide | 200331 Support@WyreStorm.com...
  • Page 9: Nhd-000-Ctl Controller Network Ports

    The AV/POE port is exclusively used for communication with the NetworkHD encoders, decoders and the computer running the configuration software. Thus, the CONTROL port cannot be the only network connection on the CTL. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 10: System Configuration

    Since the AV/POE interface on the CTL is exclusively used to communicate with NetworkHD encoders/decoders and the computer running the configuration software WyreStorm highly recommends that during first-time setup, the NetworkHD encoders/decoders are allowed to assign IP addresses according to rule 2 – auto-IP in the absence of a DHCP server.
  • Page 11: Firmware Updates

    Note: DO NOT refresh the web browser during the process. Only after the NHD-000-CTL status indicator has extinguished and then illuminated again after the system self-reboots should you then refresh the web browser. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 12: Wyrestorm Management Suite (Wms)

    WyreStorm Management Suite (WMS) WyreStorm Management Suite is an application launcher that allows quick and easy access to the most used software applications for WyreStorm products, including NetworkHD. To get started configuring a NetworkHD system, perform the following: Download the WyreStorm...
  • Page 13 Ensure the network switch is correctly configured. Press the dropdown menu next to Device Type and choose the encoder or encoder model you wish to update first. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 14 For quicker reference to the Maintenance Tool or the firmware update process refer to the NetworkHD Firmware Update Application Note available for download at WyreStorm.com. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343 14 of 41 NetworkHD Installation Guide | 200331 Support@WyreStorm.com...
  • Page 15: Networkhd Console Software

    Console software perform the following. IMPORTANT! Requirements Before Proceeding WyreStorm is constantly improving its products and releasing new products and features within firmware. When these additions and changes are made to the products, the requirements for firmware and software also changes.
  • Page 16: Configuring Ip Addresses

    Console at once. WyreStorm highly recommends that once all devices are discovered, the IP addresses of the devices are set both to a Static value and also set within a subnet that is not link-local (169.254.x.x). This is for the following reasons: 1.
  • Page 17 Please double check your IP addresses and subnet masks to be sure. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 18: Creating Aliases

    If using a third-party control system driver from WyreStorm, Alias names should start with INn or OUTn where n is a number 1 or higher. The Alias names can also include a “-“ (hyphen) followed by display or source information. For example, a complete alias could look like IN1-AppleTV or OUT1-ConferenceTV.
  • Page 19: Video Adjustments

    Right click an encoder or decoder and click Video Settings within the context menu. NetworkHD 100 and 200 Series – H.264 Video Settings H.264 Encoder Video Settings Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 20 (0) or bias toward encoder frame synchronization (5). Auto mode lets the encoder decide which value to assign dynamically based on video content. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 21 • The decoder video output can be rotated so that it can be used with displays mounted in portrait or upside- down. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 22 10Gb/s maximum. When Multiview is enabled on a decoder a secondary video stream is used from an encoder. The combined bandwidth of both streams could exceed the 10Gb/s limit if not managed correctly. WyreStorm’s stream bandwidth management engine manages this dynamically so that exceeding bandwidth limitations are mitigated.
  • Page 23 2. Click the Video tab and select H.264 for 100 & 200 series or JPEG 2000 for 400 series. 3. From the device list, check any appropriate devices. 4. Adjust any suitable settings and click Apply. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 24: Audio Adjustments

    Output mode allows the analog port to output stereo audio for connection to further audio equipment. This mode will output source audio de-embedded from the encoder’s HDMI/DP input port. Downmixing is supported for multichannel PCM audio. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 25 This can be either the encoder’s analog audio input or the encoder’s HDMI/DP audio input. Downmixing is supported for multichannel PCM audio. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 26: Networkhd Idle And Overlay Images

    3. The decoder cannot reach the encoder due to a networking issue In one of these situations the decoder will display the Idle image. WyreStorm decoders ship with a stock image but this can be replaced with a customized image where appropriate.
  • Page 27 An image can be uploaded to a decoder to be displayed on top of the main video stream. Note: Overlay images are only supported on NetworkHD 100 and 200 Series. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 28: Configuring Cec & Rs-232 Control

    One Touch Play and Standby boxes respectively. It is important to note if the format of the display’s command should be represented with Hex notation, rather than ASCII notation. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 29 Note: This feature requires that the NHD-400 is running firmware v0.9.4 or higher and is available on all NHD- 600 firmware versions. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 30: Creating Groups

    Add decoders to the group by right clicking them, select Change Group and then select the desired group. Bulk decoder group assignments can be accomplished by selecting the Batch Group Change option. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 31: Creating Video Walls

    PC’s CTRL button and select 4 displays. Right click one of the selected displays and choose the option to Combine. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 32 However, if parts of the video image are being cut off, display measurements should be made to compensate appropriately Start by giving the Layout a name. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 33 To do this select the Advanced Settings tab. Select a decoder and enter a value in the appropriate field. All values entered will be multiplied by 8 Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 34: Configuring Multiview Decoders

    Select a source for each location in the multi-view layout. Select a default audio source TX. Click the Save button. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343 34 of 41 NetworkHD Installation Guide | 200331 Support@WyreStorm.com...
  • Page 35: Uploading Configurations To The Nhd-000-Ctl

    Assign the PC’s IP address into the same range as the encoder(s). By default, this will be in the 169.254.x.x range with a subnet mask of 255.255.0.0. Run the WyreStorm Management Suite and start the NetworkHD Console software. Hit the search button located at the top left of the Console. All available NetworkHD components along with their IP addresses will populate.
  • Page 36 Note: The WyreStorm Management Suite is only available on Windows OS. If using a Mac computer, network scanning software can be used to find encoders and their IP addresses. The NetworkHD Console is required if adjusting IP addresses. Choose an encoder from the list and note its IP address.
  • Page 37 Note: WyreStorm cannot guarantee all control systems support the decoding of NetworkHD MPEG preview stream. Contact the control system’s manufacturer for detailed information. Setting an encoder’s preview stream to its maximum values could overload the processor. This will cause severe video performance issues.
  • Page 38: Troubleshooting

    • that the old device is offline and use the X in the CTL matrix to remove its record from the CTL. Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343...
  • Page 39: Contacting Technical Support

    Added note regarding this feature not being available on v1 of NHD-600 v1.0 – March 2018 All Sections Initial Release Copyright © 2020 WyreStorm Technologies | WyreStorm.com Outside UK: 844.280.WYRE (9973) | UK: +44 (0) 1793 230 343 39 of 41 NetworkHD Installation Guide | 200331 Support@WyreStorm.com...
  • Page 40: Publication Disclaimer

    WyreStorm reserves the right to change software, control codes and specifications without notice. WyreStorm will not be liable for any use of this information or any changes it may make to those products. The use of this information constitutes an agreement by the user to these limitations and exclusions.
  • Page 41 Tel: +1 518-289-1293 UK/EMEA: Unit 22, Ergo Business Park, Swindon, Wiltshire, SN3 3JW, UK Tel: +44 (0) 1793 230 343 WyreStorm Technologies reserves the right to change the physical appearance or technical specification of this product at any time. Visit wyrestorm.com...
