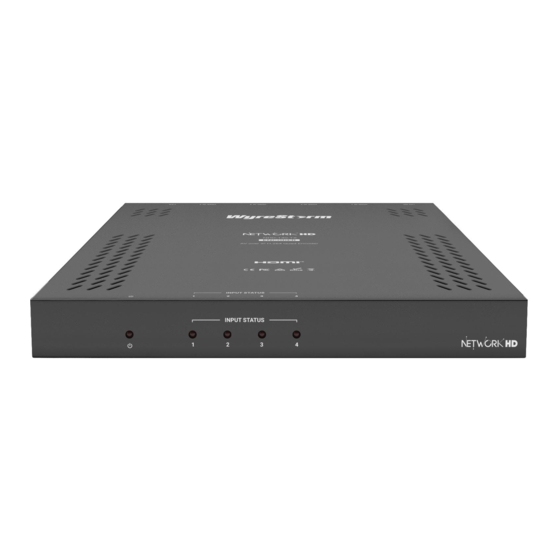

NetworkHD™ 100 Series AV over IP
H.264 Quad Encoder
NHD-140-TX
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the NetworkHD product pages download section at wyrestorm.
com to check for the latest firmware, document versions, and WyreStorm
Management Suite configuration tools.
• Install the latest firmware onto all encoders and decoders using the
Maintenance Tool found in the Management Suite and via the NHD-000-
CTL web interface. Full firmware update instructions are included with the
firmware download.
• NetworkHD requires a Layer 2+ or Layer 3 managed switch network with
support for Multicast & IGMP snooping enabled.
• WyreStorm highly recommends using network switches listed in the
NetworkHD Switch Recommendation Guide.
verified by WyreStorm to meet the requirements of a NetworkHD system.
In the Box
1x NHD-140-TX Encoder
1x 12V DC Power Supply (US | UK | EU)
2x Rack Mounting Brackets
2x Wall Mounting Brackets
1x Quick Start Guide (This Document)

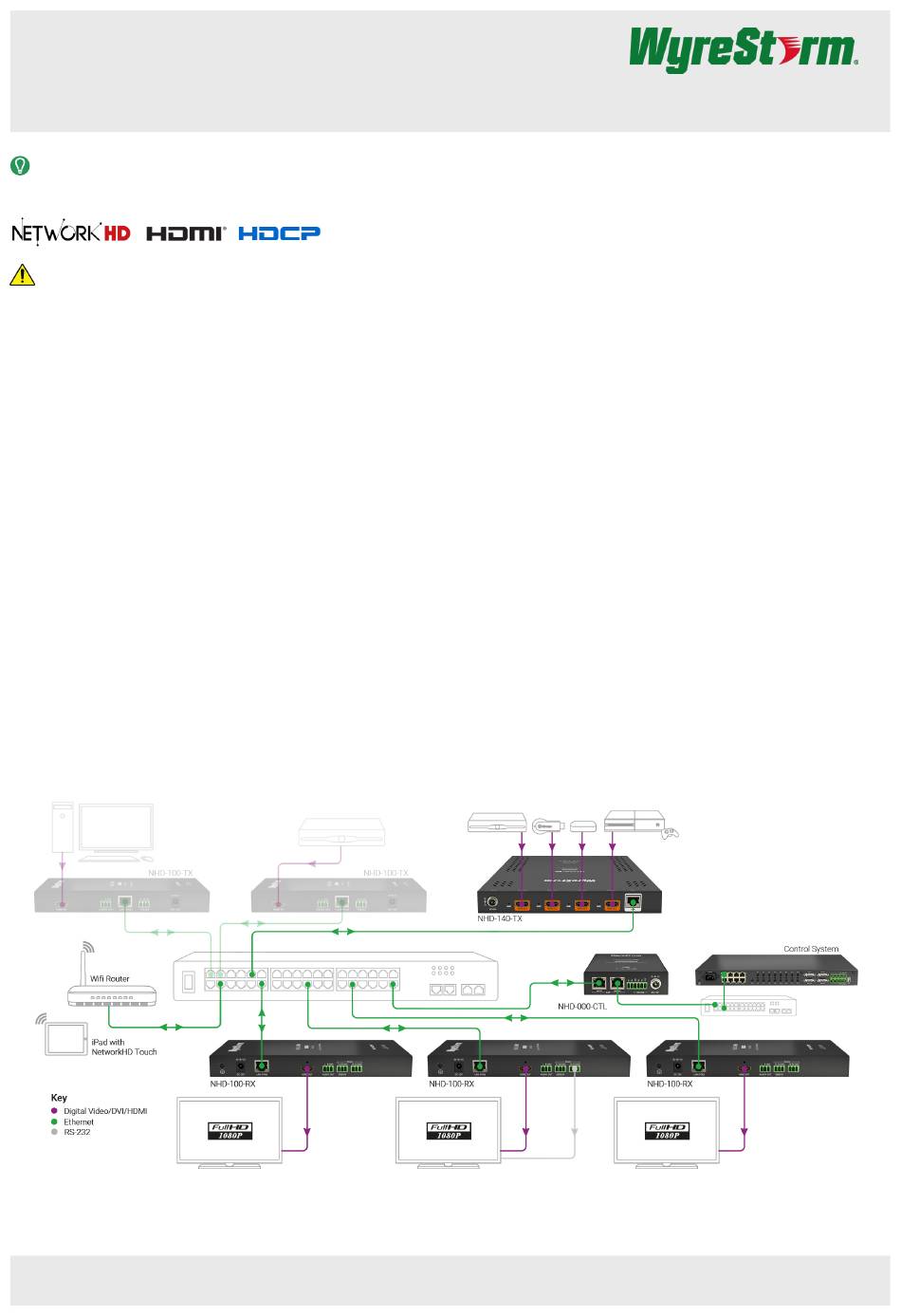

Basic Wiring Diagram
Copyright © 2018 WyreStorm Technologies |
NHD-140-TX Quickstart Guide | 181218
These switches have been
wyrestorm.com
•
Configure all network switches to the exact specification of the guides at
wyrestorm.com prior to connecting any NetworkHD devices.
• NetworkHD uses stateless address autoconfiguration (auto-IP) to assign
link-local IP addresses in the range of 169.254.x.x to encoders and decoders
out of the box. Your PC must be set to an address in this range in order to
discover the encoders, decoders and NHD-000-CTL.
• WyreStorm recommends the use of the NHD-140-RACK-1U or NHD-000-
RACK4 for installations containing multiple NetworkHD devices. Use of this
product provides an enclosure to mount and secure all NetworkHD devices
in a standard 19-inch rack frame (EIA-310).
Additional Information
More information and required software can be found within the Download
section of the product page on
• Management Suite v1.4 or Higher
• NetworkHD Switch Recommendations
• NetworkHD Switch Mapping Worksheet
• NetworkHD Switch Configuration Guides
• NetworkHD Touch Installation Guide
• NetworkHD Touch User Guide
• Drivers for Popular Control Systems
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
wyrestorm.com.
support@wyrestorm.com
Advertisement
Related Manuals for Wyrestorm 100 Series
Summary of Contents for Wyrestorm 100 Series
- Page 1 H.264 Quad Encoder Quickstart Guide NHD-140-TX WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. IMPORTANT! Installation Requirements • Visit the NetworkHD product pages download section at wyrestorm.
- Page 2 IP address and setting an Alias name. You will also find other configuration options under the Batch Settings window. Note: If a 3rd Party control system with a WyreStorm driver for NetworkHD is going to be used, the encoders must use the Alias prefix IN1, IN2, etc. This also applies to decoders, OUT1, OUT2, etc.
- Page 3 • Ensure the network switch is fully configured per the appropriate switch • Test sources and displays by connecting them directly together. configuration guide. • Swap out the HDMI cable. Copyright © 2018 WyreStorm Technologies | wyrestorm.com UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) 3 of 4 NHD-140-TX Quickstart Guide | 181218 support@wyrestorm.com...
- Page 4 Safety and Emission CE | FCC | RCM | RoHS Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.
