Wyrestorm 400 Series Quick Start Manual

NetworkHD™ 400 Series 4K AV over IP JPEG 2000
Encoder with Dante

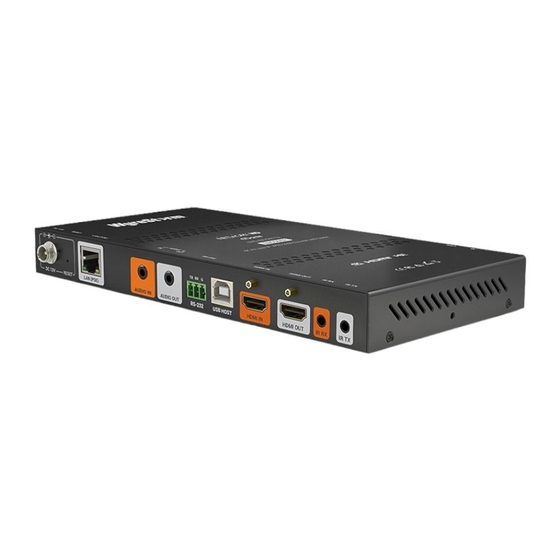

NHD-400-DNT-TX
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the NetworkHD product pages download section at wyrestorm.
com to check for the latest firmware, document versions, and WyreStorm
Management Suite configuration tools.
• Install the latest firmware onto all encoders and decoders using the
Maintenance Tool found in the Management Suite and via the NHD-000-
CTL web interface. Full firmware update instructions are included with the
firmware download.
• NetworkHD requires a Layer 2+ or Layer 3 managed switch network with
support for Multicast & IGMP snooping enabled.
• WyreStorm highly recommends using network switches listed in the
NetworkHD Switch Recommendation Guide.
verified by WyreStorm to meet the requirements of a NetworkHD system.
In the Box
1x NHD-400-DNT-TX Encoder
1x 3-pin Terminal Block
2x Mounting Brackets for NHD-000-RACK4
2x Wall Mounting Brackets
1x IR Emitter Cable
1x IR Receiver Cable
1x Quickstart Guide (This Document)
Basic Wiring Diagram
Personal Computer Local Display
NHD-400-DNT-TX
Dante Network Switch
Dante Audio Amplifier
NHD-400-RX
Key
Digital Video/DVI/HDMI
Ethernet
IR
Analog Audio
USB
Copyright © 2020 WyreStorm Technologies |
NHD-400-DNT-TX Quickstart Guide | 200107
These switches have been
iPad with
NetworkHD Touch
Wifi Router
NHD-400-DNT-TX
NHD-400-RX
wyrestorm.com
• Configure all network switches to the exact specification of the guides at
wyrestorm.com prior to connecting any NetworkHD devices.
• NetworkHD uses stateless address autoconfiguration (auto-IP) to assign
link-local IP addresses in the range of 169.254.x.x to encoders and
decoders out of the box. Your PC must be set to an address in this range in
order to discover the encoders, decoders and NHD-000-CTL.
• WyreStorm recommends the use of the NHD-000-RACK4 for installations
containing multiple NetworkHD devices. Use of this product provides an
enclosure to mount and secure all NetworkHD devices in a standard 19-
inch rack frame (EIA-310).
• WyreStorm recommends the use of official Audinate Dante software tools
for configuration and operations of the Dante audio encoder.
Additional Information
More information and required software can be found within the Download
section of the product page on
• Management Suite v1.6 or Higher
• NetworkHD Switch Recommendations
• NetworkHD Switch Mapping Worksheet
• NetworkHD Switch Configuration Guides
• NetworkHD Touch Installation Guide
• NetworkHD Touch User Guide
• Drivers for Popular Control Systems
More information and required software related to the Dante audio encoder
can be found at Audinate.com.
Personal
Computer
NHD-400-DNT-TX
NHD-000-CTL
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
wyrestorm.com.
UHD Blu-ray Player
NHD-400-RX
support@wyrestorm.com
Control System
USB Keyboard
and Mouse
(Connected to front
of Decoder)
