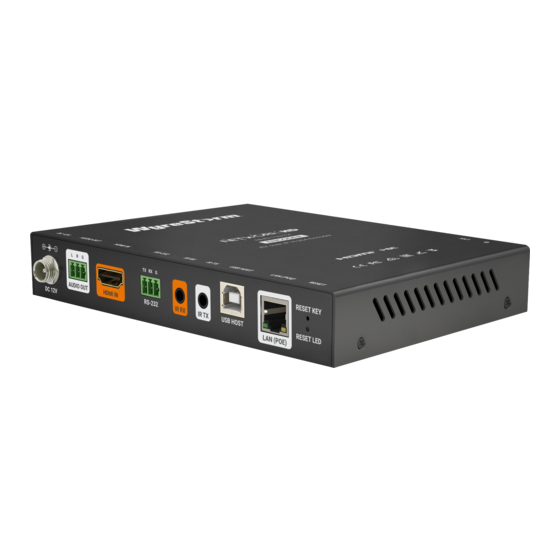

Wyrestorm NHD-110-TX Quick Start Manual

1080p and 4K AV over IP Encoders and Decoders
NetworkHD Full Product Range
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.

IMPORTANT! Installation Requirements

WyreStorm Documentation and Firmware

Download the following items from the product page on wyrestorm.com. They are essential for accurate configuration and use of the NetworkHD system.
• Latest NetworkHD Firmware
• Management Suite v1.3 or Higher
• NetworkHD Installation Guide
• NetworkHD Technical Reference Guide
• NetworkHD Certified Switches
• NetworkHD Switch Configuration Guides
• NetworkHD Switch Mapping Worksheet
• 3rd Party Control System Drivers

Network Switch Requirements

• WyreStorm highly recommends the use of switches listed in the
requirements of a NetworkHD system.
• NetworkHD requires a Layer 2+ / Layer 3 managed switch network with support for Multicast & IGMP Snooping. Ensure that the switch being used supports
these features and that they are configured prior to connecting the NetworkHD system.
• Configure all network switches to the exact specifications contained in the WyreStorm Switch Configurations Guides prior to connecting the NetworkHD
system. This will ensure proper operation from startup.

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in this
entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables, and
electrical or environmental interference will have an adverse effect on
signal transmission which may limit performance. Steps should be taken
to minimize or remove these factors completely during installation for best
results.
• WyreStorm recommends using pre-terminated HDMI and DP cables due to
the complexity of these connector types. Using pre-terminated cables will
ensure that these connections are accurate and will not interfere with the
performance of the product.

Warranty Information

WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a
period of five (5) years from the date of purchase. Refer to the Product Warranty page on
product warranty.
Copyright © 2021 WyreStorm Technologies |
NetworkHD Quickstart Guide | 210215
NetworkHD Certified
wyrestorm.com
Switches. These switches have been verified by WyreStorm to meet the

LAN Port Wiring

The NetworkHD Series LAN port is a 1GbE link for connection to a
1000BASE-T Ethernet device port. Refer to IEEE 802.3ab for official guidance
on the Ethernet link. Cables must be tested to 100MHz across the entire link.
1000BASE-T uses the IEC 60603-7 8P8C modular connector.

HDMI/DVI Wiring

WyreStorm recommends using pre-terminated HDMI and DVI cables due to
the complexity of these connector types. Using pre-terminated cables will
ensure that these connections are accurate and will not interfere with the
performance of the product.
wyrestorm.com for more details on our limited
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
