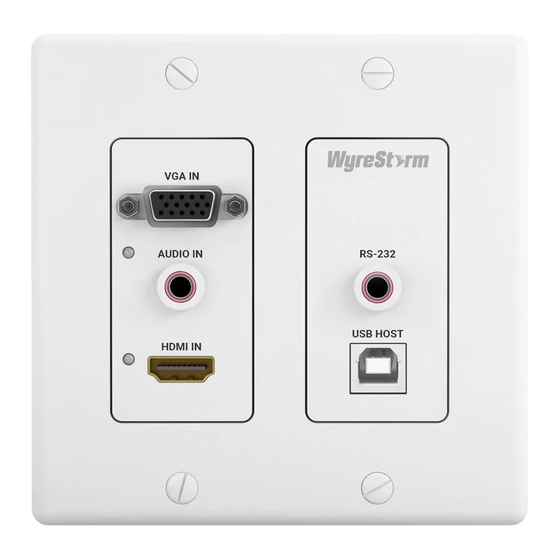

400 Series In-Wall 4K AV over IP JPEG 2000 Encoder
NHD-400-TX-IW
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the NetworkHD product pages download section at wyrestorm.
com to check for the latest firmware, document versions, and WyreStorm
Management Suite configuration tools.
• Install the latest firmware onto all encoders and decoders using the
Maintenance Tool found in the Management Suite and via the NHD-000-
CTL web interface. Full firmware update instructions are included with the
firmware download.
• NetworkHD requires a Layer 2+ or Layer 3 managed switch network with
support for Multicast & IGMP snooping enabled.
• WyreStorm highly recommends using network switches listed in the
NetworkHD Switch Recommendation Guide.
verified by WyreStorm to meet the requirements of a NetworkHD system.
Box Contents
1x NHD-400-TX-IW Encoder
1x 12V DC Power Supply (US | UK | EU)
1x 2-Pin Terminal Block
1x 3.5mm Stereo TRS Plug to 3-pin Terminal Block RS-232 Adapter
1x White Decorative Plate with 4 Screws
1x Quick Start Guide (This Document)

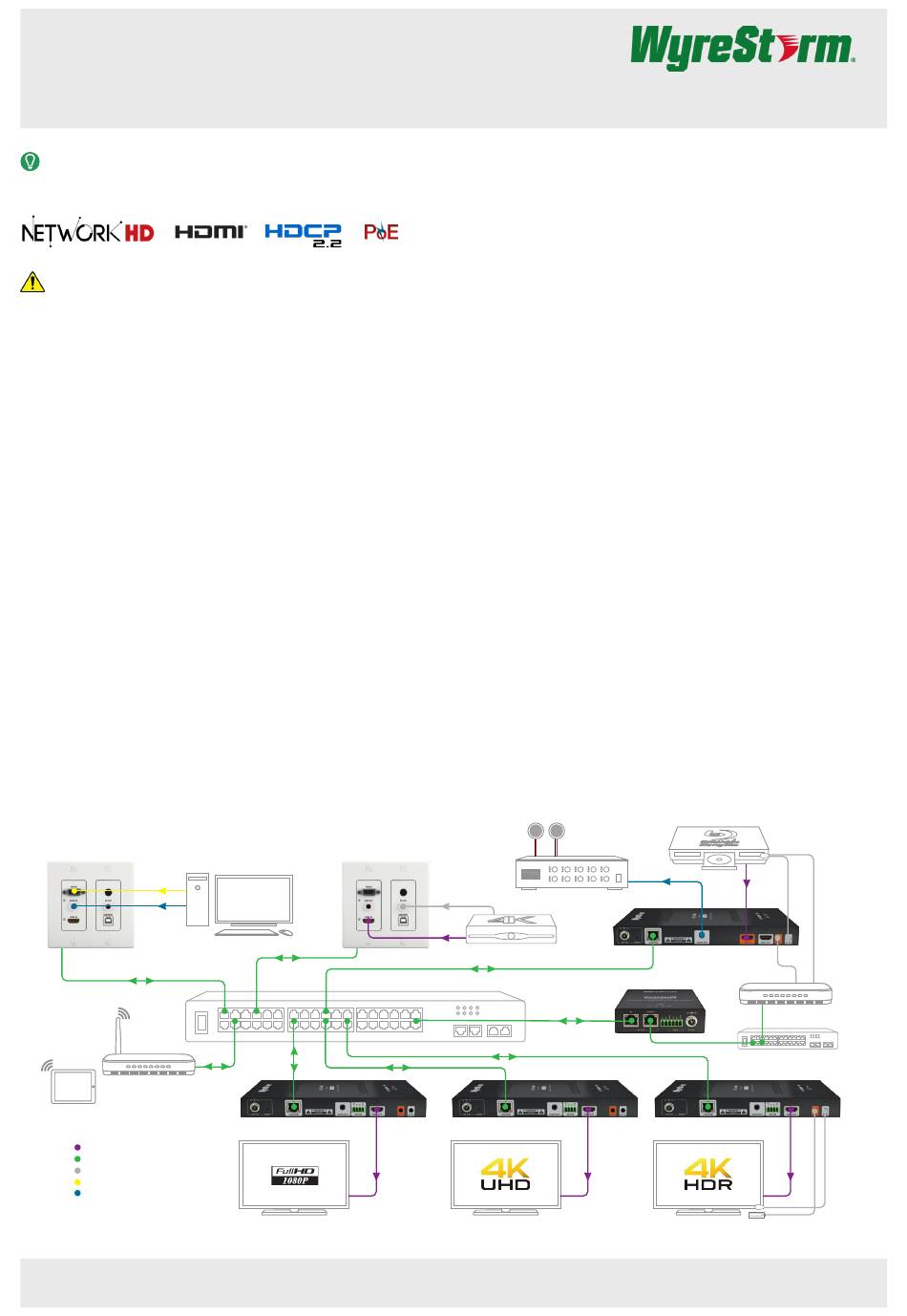

Basic Wiring Diagram
NHD-400-TX-IW
Analog
Video
Analog
Audio
Wifi Router
iPad with
NetworkHD Touch™
Key
Digital Video/DVI/HDMI
Ethernet
Control
Analog Video
Analog Audio
Copyright © 2019 WyreStorm Technologies |
NHD-400-TX-IW Quickstart Guide | 190115
These switches have been
NHD-400-TX-IW
Personal Computer
NHD-400-RX
wyrestorm.com
• Configure all network switches to the exact specification of the guides at
wyrestorm.com prior to connecting any NetworkHD devices.
• NetworkHD uses stateless address autoconfiguration (auto-IP) to assign
link-local IP addresses in the range of 169.254.x.x to encoders and
decoders out of the box. Your PC must be set to an address in this range in
order to discover the encoders, decoders and NHD-000-CTL.
• WyreStorm recommends the use of the NHD-000-RACK4 for installations
containing multiple NetworkHD devices. Use of this product provides an
enclosure to mount and secure all NetworkHD devices in a standard 19-
inch rack frame (EIA-310).
Additional Information
More information and required software can be found within the Download
section of the product page on
• Management Suite v1.4 or Higher
• NetworkHD Switch Recommendations
• NetworkHD Switch Mapping Worksheet
• NetworkHD Switch Configuration Guides
• NetworkHD Touch Installation Guide
• NetworkHD Touch User Guide
• Drivers for Popular Control Systems
Audio Distribution
Amplifier
RS-232
HDMI
UHD Satellite Box
NHD-400-RX
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
wyrestorm.com.
UHD Blu-ray Player
IR
HDMI
Analog Audio
NHD-400-TX
IR
NHD-000-CTL
NHD-400-RX
support@wyrestorm.com
Control
System
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm 400 Series
Summary of Contents for Wyrestorm 400 Series
- Page 1 400 Series In-Wall 4K AV over IP JPEG 2000 Encoder Quickstart Guide NHD-400-TX-IW WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. • Configure all network switches to the exact specification of the guides at IMPORTANT! Installation Requirements wyrestorm.com prior to connecting any NetworkHD devices.
- Page 2 LAN Port Wiring The NetworkHD 400 Series LAN port is a 1GbE link for connection to a 1000BASE-T Ethernet device port. Refer to IEEE 802.3ab for official guidance on the Ethernet link. Cables must be tested to 100MHz across the entire link. 1000BASE-T uses the IEC 60603-7 8P8C modular connector.
- Page 3 IP address and setting an Alias name. You will also find other configuration options under the Batch Settings window. Note: If a 3rd Party control system with a WyreStorm driver for NetworkHD is going to be used, the encoders must use the Alias prefix IN1, IN2, etc. This also applies to decoders, OUT1, OUT2, etc.
- Page 4 Safety and Emission CE | FCC | RCM | RoHS Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.
