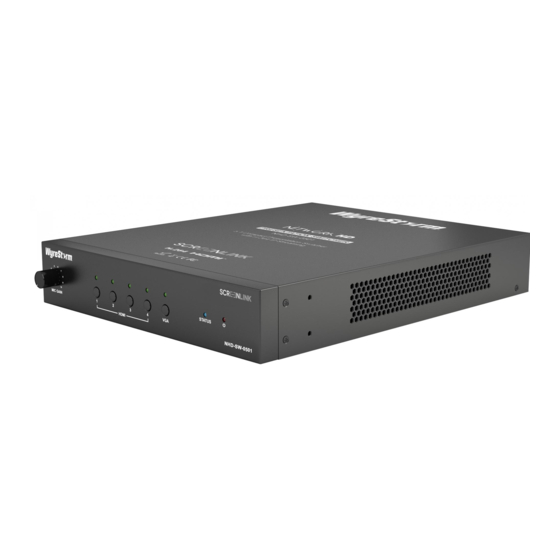

Wyrestorm NetworkHD NHD-SW-0501 Quick Start Manual

5x1 IP Streaming Presentation Switcher/Scaler with ScreenLink™
Wireless Collaboration, Mic Input and CEC control
NHD-SW-0501
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.

IMPORTANT! Installation Requirements!

• Visit the product page to download the latest firmware, document versions,
and the WyreStorm Maintenance Suite configuration tools.
• Install the latest firmware onto all NetworkHD devices in the system.
• NetworkHD requires a Layer 2 managed switch network with support for
Multicast & IGMP snooping enabled.
• NetworkHD uses AutoIP to assign IP addresses in the range of 169.254.x.x
to encoders, decoders and the NHD-SW-0501 out of the box. The use of
DHCP addresses is not recommended. Errors in static IP settings can result
in a complicated reset procedure.
• WyreStorm highly recommends using our recommended switch
manufacturers. Configure all network switches to the exact specification of
the guides at wyrestorm.com prior to connecting any NetworkHD devices.
• Due to the way H.264 compression encodes the video, interlaced video
sources are not recommended. Please use progressive scan sources for
best quality - even at lower resolutions.

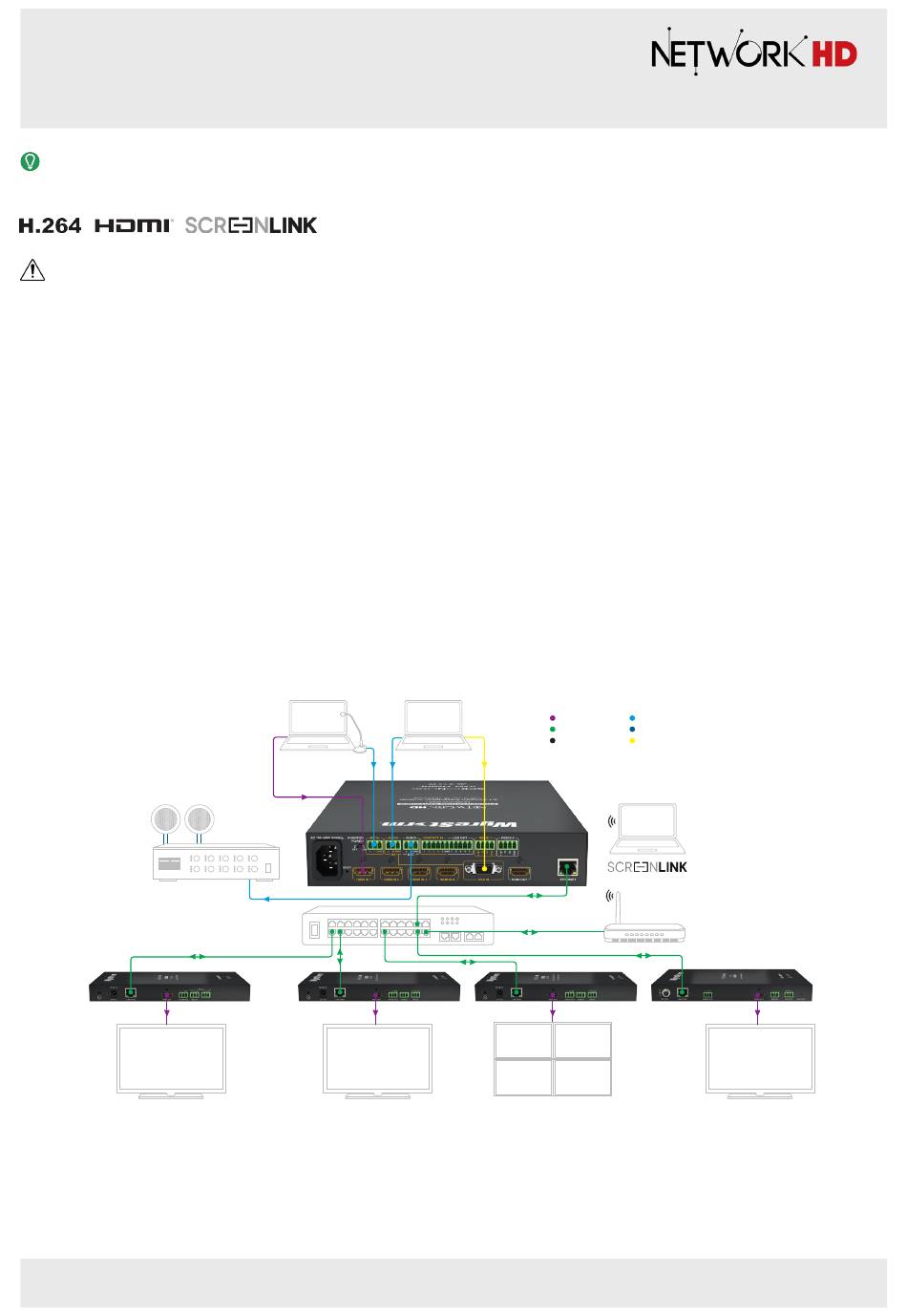

Basic Wiring Diagram

The following diagram is provided to illustrate a typical basic system containing the NHD-SW-0501.
Speaker Level Audio
HDMI
Copyright © 2016 WyreStorm Technologies |
NHD-SW-0501 Quickstart Guide | 170313
Podium PC
with Microphone
HDMI
Ethernet
Ethernet
NHD-100-RX NHD-200-RX
HDMI
wyrestorm.com

In the Box

1 x NHD-SW-0501 Main Unit
1x AC Power Cord
1x 11-pin Phoenix Connector
2x 4-pin Phoenix Connector
3x 3-pin Phoenix Connector
2x Mounting brackets
1 x Quickstart guide (This Document)

Additional Information

The following information can be found on the
NetworkHD Product Page.
• NetworkHD 100-200 Series Firmware
• NetworkHD 200 Series Installation Guide
• NetworkHD Switch Recommendations
• NetworkHD IP Switch Mapping Worksheet
• NetworkHD Switch Configuration Guides
• Drivers for Popular Control Systems
VGA Source
KEY
HDMI/DisplayPort
HDBaseT/Ethernet
Power
Analog Audio VGA Video
Ethernet
Ethernet
Ethernet
HDMI
