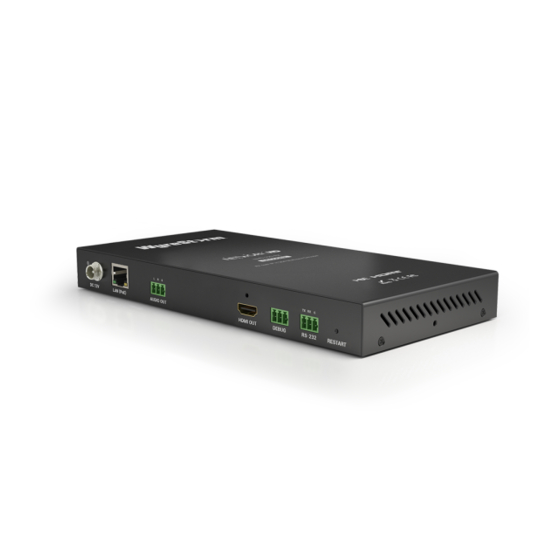

NetworkHD™ 200 Series AV Over IP H.264 Multiview Decoder
NHD-220-RX
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.

IMPORTANT! Installation Requirements!

• Visit the product page to download the latest firmware, document versions,
and the WyreStorm Maintenance Suite configuration tools.
• Install the latest firmware onto all NetworkHD devices in the system.
• NetworkHD requires a Layer 2 managed switch network with support for
Multicast & IGMP snooping enabled.
• NetworkHD uses AutoIP to assign IP addresses in the range of 169.254.x.x
to encoders and decoders out of the box. The use of DHCP addresses is
not recommended. Errors in static IP settings can result in a complicated
reset procedure.
• WyreStorm highly recommends using our recommended switch
manufacturers. Configure all network switches to the exact specification of
the guides at
wyrestorm.com
• Due to the way H.264 compression encodes the video, interlaced video
sources are not recommended. Please use progressive scan sources for
best video quality - even at lower resolutions.
• WyreStorm recommends the use of the
containing multiple NetworkHD devices. Use of this product provides an
enclosure to mount and secure all NetworkHD devices in a rack.

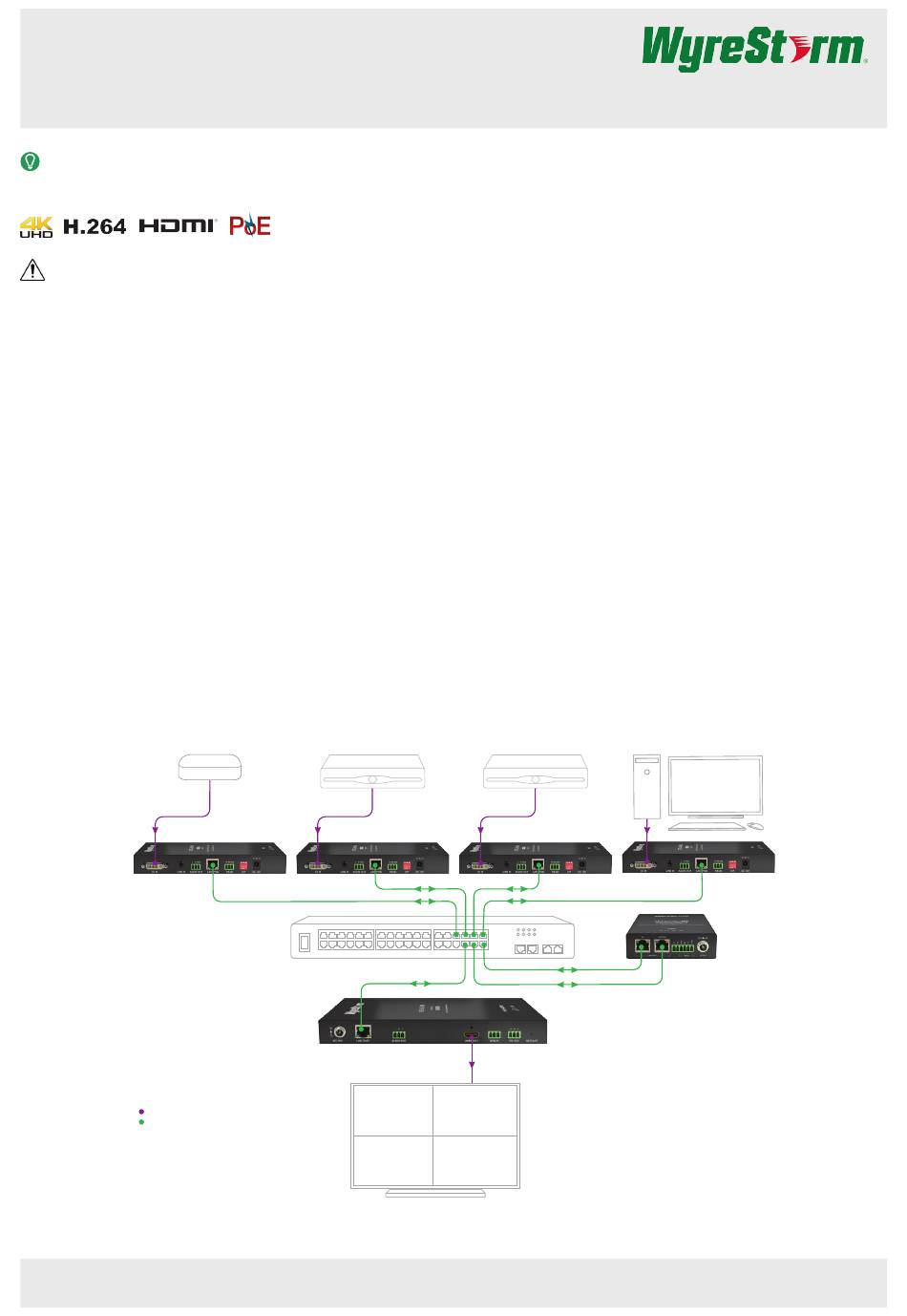

Basic Wiring Diagram

The following diagram is provided to illustrate a typical basic system containing the NHD-220-RX.
Media Player
Digital Video
NHD-200-TX
Key
Digital Video/DVI/HDMI
Ethernet
Copyright © 2017 WyreStorm Technologies |
NHD-220-RX Quickstart Guide | 170919
prior to connecting any NetworkHD devices.
NHD-000-RACK
for installations
Sattellite Box 1
Digital Video
NHD-200-TX
Network Switch
NHD-220-RX
wyrestorm.com

In the Box

1 x NHD-220-RX Main Unit
1 x Power Adapter (12V 1A DC)
3 x 3-pin Phoenix Connectors
2 x Mounting Brackets
1 x Quickstart guide (This Document)

Additional Information

The following information can be found on the
NHD-220-RX Product
• NetworkHD 100-200 Series Firmware
• NetworkHD 200 Series Installation Guide
• NetworkHD Switch Recommendations
• NetworkHD IP Switch Mapping Worksheet
• NetworkHD Switch Configuration Guides
• Drivers for Popular Control Systems
Sattellite Box 2
Digital Video
NHD-200-TX
Ethernet
Ethernet
Ethernet
Digital Video
Satellite Box 1
Satellite Box 2
Media Player
PC
1 of 4
Quickstart Guide
Page.
PC
Digital Video
NHD-200-TX
NHD-000-CTL
Ethernet
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
WyreStorm
website under the
support@wyrestorm.com
