ZoneFlex 7351-U 802.11n
Multimedia Wi-Fi Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions
on how to set up your Ruckus Wireless ZoneFlex Access
Point. After completing the steps described in this Guide,
you will be able to place the Access Point (AP) at your site
and provide wireless network access to users.
B Y B
EFORE OU EGIN
Before deploying Ruckus Wireless products, please check for
the latest software and the release documentation.
• User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents
• Software Upgrades are available at
http://support.ruckuswireless.com/software
• Open Source information is available at
http://opensource.ruckuswireless.com
• Software License and Limited Warranty available at
http://support.ruckuswireless.com/warranty
P C
ACKAGE ONTENTS

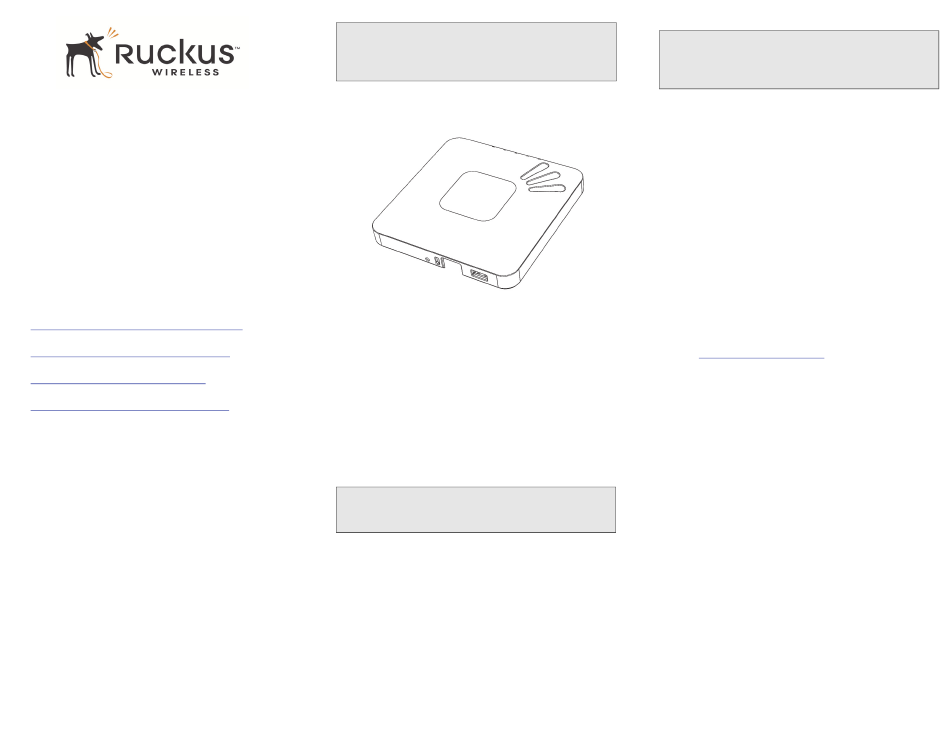

• ZoneFlex 7351-U Access Point
• Mounting screws and anchors (2)
• This Quick Setup Guide
S R
ETUP EQUIREMENTS
• A computer running Windows 7 (procedures for other OS's
are similar)
• One or more of the following:
• A modem (DSL or cable), broadband router, or other
device provided by your Internet Service Provider
that brings Internet access to your site.
• A network switch or a DSL/Internet gateway device.
• Two Cat 5e Ethernet cables
• An AC power adapter (sold separately)
IMPORTANT!
If the AP is deployed with a ZoneDirector, follow the
ZoneDirector Quick Setup Guide, and connect the AP to
your local network.
S 1: C
TEP
. 1 After removing your Ruckus Wireless AP from its pack-
age, place it next to your computer.
.
2 Using an Ethernet cable, connect your computer's net-
work port to the 10/100/1000 port on the AP.
.
3 Using the AC adapter (sold separately), connect the AP
to a convenient power source.
.
4 Verify that the Power LED on the external enclosure is a
steady green.
S 2: P
TEP
S
ETUP
NOTE:
The following procedures assume Windows 7 as the
operating system. Procedures for other OS's are similar.
1 On your Windows 7 computer, configure your network
adapter from the Local Area Connection settings as follows:
• Start > Control Panel > Network and Sharing
Center > Change Adapter Settings
2 Edit the TCP/IPv4 address settings as follows:
• Local Area Connection > Properties > Internet
Protocol Version 4 (TCP/IPv4) > Properties
Published June 2012, Part Number 800-70393-001
AP Y C
ONNECT THE TO OUR OMPUTER
Y C AP
REPARE OUR OMPUTER FOR
Copyright © 2012 Ruckus Wireless, Inc.
The TCP/IPv4 Properties dialog box appears.
IMPORTANT!
Write down all of the currently active settings so you can
restore your computer to its current configuration later
(when this process is complete).
Use the following IP address
3 Select
selected) and then make the following entries:
IP address
• : 192.168.0.22 (or any address in the
192.168.0.x network)
Subnet mask
• : 255.255.255.0
• Default gateway : 192.168.0.1
Leave the DNS server fields empty.
OK
4 Click to save your changes.
Your changes are put into effect immediately.
S 3: L I AP
TEP OG NTO THE
As specified earlier, the AP should be directly connected to
your computer (through the Ethernet port) and powered on,
ready for setup.
1 On your computer, open a Web browser window.
2 In the browser, type this URL to connect to the AP:
https://192.168.0.1
3 Press <Enter> to initiate the connection. When a security
OK/Yes
alert dialog box appears, click
4 When the Ruckus Wireless Admin login page appears,
enter the following:
• Username : super
• Password : sp-admin
5 Click Login .
S 4: C W
TEP USTOMIZE THE IRELESS
1 Configuration
On the Web interface menu, click
less [2.4G/5G]
. The Configure :: Wireless :: Common
options appear.
2 Verify that the following options are active:
Channel
• : SmartSelect
Country Code
• : If you are not located in the United
States, select your current country.
3 Click Update Settings if you made any changes.
4 Click any of the eight "Wireless #" tabs at the top of the
page.
Enabled
5 In Wireless Availability, click
(if it is not already
to proceed.
S
ETTINGS
Wire-
>
.
