CONNECTING THE GROUND
Consult with local Electrical and Safety Codes for proper
connection based on condition of use.
EXAMPLE of how to ground the unit if the condition
of use requires such a device:
The nut and ground terminal on the generator should
always be used to connect the generator to a suitable
ground when required. The ground cable should be #8
size wire minimum.
At the generator, connect the terminal of the ground cable
between the lock washer and the nut (Figure 2) and tighten
the nut fully. Connect the other end of the ground cable to
a suitable earth ground (ground rod)
GENERATOR
GROUND LUG
PAGE 16 — DAC7000 SERIES GENERATORS• OPERATION AND PARTS MANUAL — REV. #0 (02/15/16)
GROUND CABLE
REFERENCE
NEC 250-83 (C)

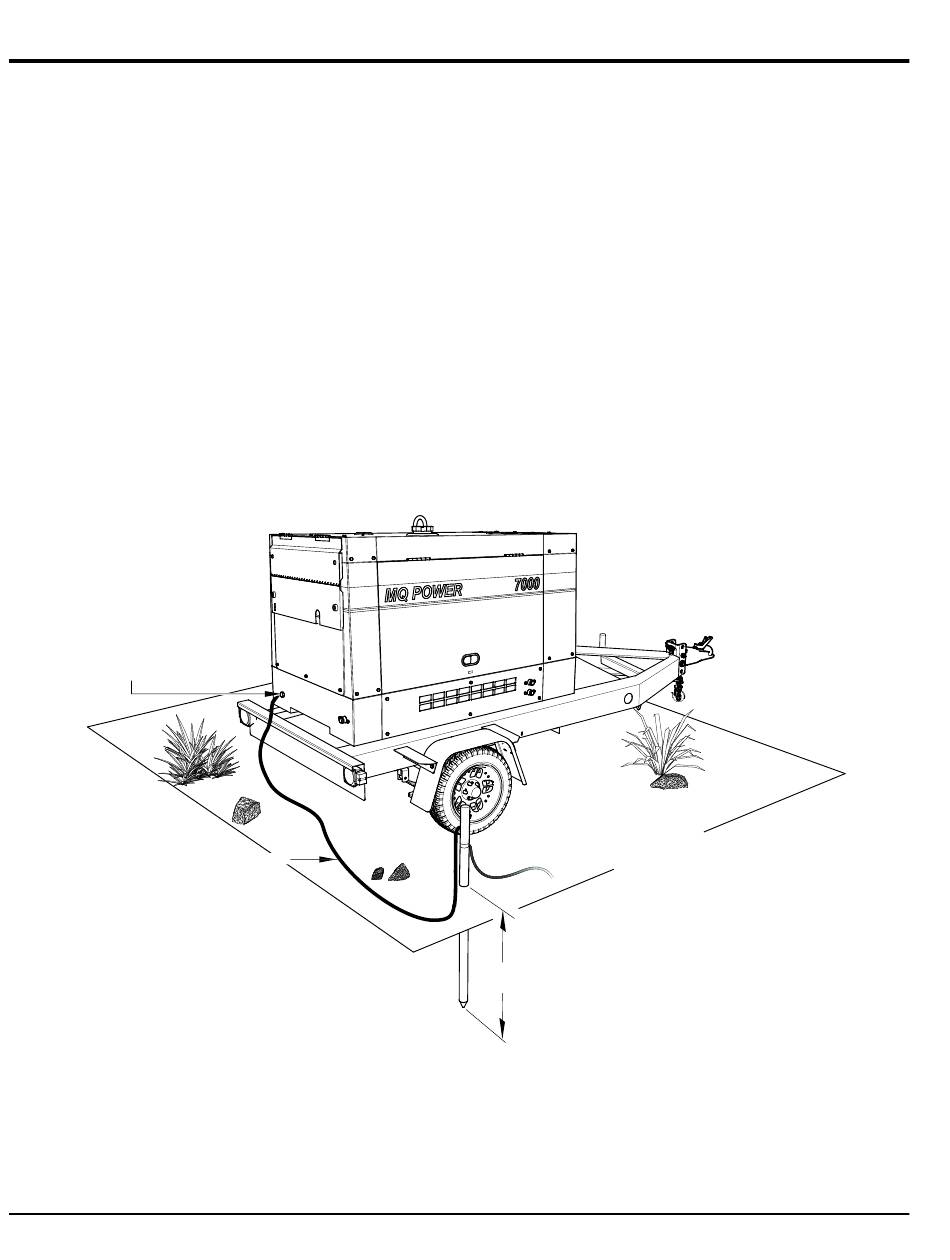

Figure 2. Generator Grounding
GROUND ROD FOR
EARTH GROUND.
CONNECT TO BUILDING
GROUND IF APPLICABLE
M )
M U
I N I
( M
M
. 4
T . / 2
8 F

INSTALLATION
