OWNER'S MANUAL
s e r i e s
FULL DC
INVERTER

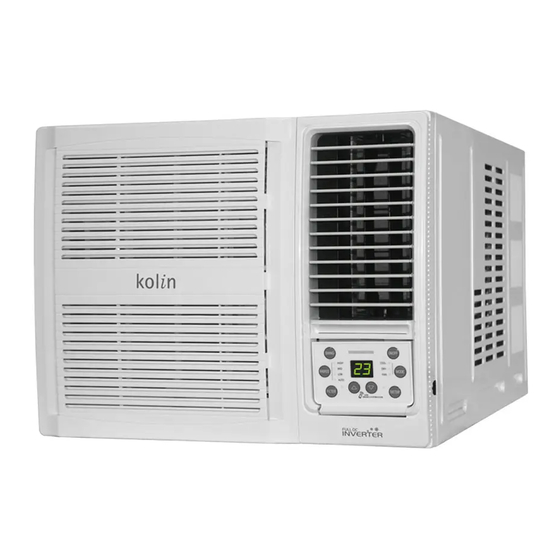

WINDOW TYPE AIR CONDITIONER
Thank you for choosing our air conditioner. Please read this owner's
manual before operation and retain it for future reference. If you have lost
this manual, please contact our nearest service center or visit our website.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kolin Quad Series
Summary of Contents for Kolin Quad Series
- Page 1 works years air conditioner www.kolinphil.com.ph OWNER’S MANUAL s e r i e s FULL DC INVERTER WINDOW TYPE AIR CONDITIONER Thank you for choosing our air conditioner. Please read this owner’s manual before operation and retain it for future reference. If you have lost this manual, please contact our nearest service center or visit our website.
- Page 2 MODELS: KAG-75WCINV KAG-100WCINV KAG-145WCINV KAG-200WCINV KAG-250WCINV...
-
Page 3: Table Of Contents
CONTENTS Thank you for choosing the air conditioner.Our design is based on the best eff- Thank you for choosing our air conditioner. Our design is based on the best iciency and the lowest noise operation and it can keep the room comfortable. efficiency, lowest noise operation and keeping the room more comfortable. -
Page 4: The Refrigerant
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience The Refrigerant • To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The used refrigerant is the fluoride R32, which is specially cleaned. The refrigerant is flammable and inodorous. - Page 5 The Refrigerant ● The following checks shall be applied to installations using flammable refrigerants: – The charge size is in accordance with the room size within which the refrigerant containing parts are installed; – The ventilation machinery and outlets are operating adequately and are not obstructed; –...
- Page 6 The Refrigerant ● Qualification requirement for installation and maintenance man 1. All the work men who are engaging in the refrigeration system should bear the valid certification awarded by the authoritative organization and the qualification for dealing with the refrigeration system recognized by this industry. If it needs other technician to maintain and repair the appliance, they should be supervised by the person who bears the qualification for using the flammable refrigerant.
- Page 7 The Refrigerant ● The refrigeration equipment Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturers maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer technical department for assistance.
-
Page 8: Precautions
Precautions Warning This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 9: Function
Window-type room air conditioners can regulate the room temperature and dry the room. It is convenient for your work, study, and daily life. Function It can be widely used in residences, shops, hotels, offices, libraries, and laboratories, etc. Introduction Window type room air conditioners can Autumn Spring regulate the room temperature and dry... -
Page 10: Power Requirement
Power requirement Rated voltage : 230V~ 60Hz ● The electric components will be damaged when the voltage is too high.If the voltage is too low,the compressor will vibrate violently which may damage the refrigerant system and easily cause the compressor and electric components not work. -
Page 11: Installation
Improper installation for window type air conditioner can cause a lot of damage. Please contact Kolin Service Hotlines or Kolin Authorized Service Center near you to install the unit and don't install it by yourself. Otherwise, will not be responsible for the possible damage on the unit. - Page 12 Installation procedure: Remove the sticker from the front panel. Put the unit into the installation hole. ● When installing the unit, it should slant down to the back to make sure the condensation water can be drain 。 。 away conveniently.(Slant about 3 (Shown at right figure.) ●...
- Page 13 Drain water : Drain pan and drain hose need to be installed before using. If drain hose is not included in the product, you need to purchase it locally to satisfy your particular needs. Use the following procedure to install drain pan and drain hose.
-
Page 14: Notes For Installation
Relocate Before relocating the air conditioner, you should contact the seller first. Then it must be done under the direction of an Authorized Kolin Technician. In addition, charges to this must be paid. Noise ● Install in a location where it is strong enough to avoid increase of noise and vibration. -
Page 15: Air Direction Adjustment
Panel outlook picture, just for reference, please take the real unit as standard. Cabinet Air inlet (behind the louver front intake grille) Front intake grille Remote control panel Air direction adjustment Horizontal Louver The Horizontal Louver is controlled by positioning manually the louver to discharge the air upwards, downwards or straight out. -
Page 16: Remote Control Operation Procedure
Remote control operation procedure Note: This is a general use remote controller for air conditioners. For some function, which the model doesn't have, if the corresponding button on the remote controller was pressed the unit will just keep its original running status. On/Off... - Page 17 ● Dry: Under this mode, the unit will run in low fan speed for dehumidification and the corresponding indicator is on; under dry mode, the fan speed cannot be adjusted. ● Fan Only: Under this mode, air conditioner will not cool or heat, only the fan will run to circulate the air.
- Page 18 Timer button Under ON status, press this button to set timer OFF; Under OFF status, press this button to set timer ON. Press this button once and the characters of HOUR ON (OFF) will flash on the remote display. Meanwhile, press “+” button or “-” button to adjust timer setting (timewill change quickly if holding “+”...
- Page 19 Replacement of batteries in remote controller 1. Press the back side of remote controller marked signal sender battery the cover of battery box along the arrow direction. reinstall 2. Replace two 7# (AAA 1.5V) dry batteries, and make sure the position of "+" polar and "-" polar remove are correct.
-
Page 20: Remote Control Panel
Control panel Note: If wireless remote control is lost or broken, unit can be manually operated using its surface display panel. ON/OFF BUTTON Operation starts when pressing this button, and stops when pressing this button again. SWING BUTTON Activates the automatic air swing function FAN SPEED BUTTON Select the fan speed LOW, MID, HIGH and AUTO in sequence. -
Page 21: Operation Tips
Operation Tips ※ Operating Temperature Range Indoor side DB/WB(°C) Outdoor side DB/WB(°C) Maximum cooling 32/23 43/- The operating temperature range (outdoor temperature) for cooling only unit is 18°C~ 43°C. Operation for comfort and economy Do not overcool the room te- Keep blind or curtains closed. -
Page 22: Caution
Caution Operations for safety and health 1) The plug must be accessible after the appliance is positioned. 2) Do not use this appliance in the laundry. 3) If the power cord is damaged, it must be replaced by the manufacturer or its service agent to avoid any hazard. - Page 23 Always wait at Always wait at least 3 minutes before least 3 minutes. switching the air conditioner on again after you have switched it off during cooling. Inappropriate treatment of the unit involves the risk of severe damages of people and material. Details to this refrigerant are found in chapter “refrigerant”.
-
Page 24: Care And Maintenance
Care and maintenance Always turn off the air conditioner and the main power supply before cleaning to ensure safety. Cleaning the Unit 1.Shut the power off before cleaning. Plug out only washed at least once every two weeks or as after air con- often as it needs cleaning. -
Page 25: Troubleshooting Guide
Troubleshooting guide Please check the following items before asking for repair, it saves your time and money. Fault phenomenon Troubleshooting ● Is there a power failure? Air conditioner ● Is it unplug? does not oper- ● Is the switch or circuit breaker is off? ate at all. -
Page 26: After Service
Malfunction code Solution Means defrosting status. It’s the normal phenomenon. Please contact professional person to deal with it. Please contact professional person to deal with it. Please contact professional person to deal with it. Please contact professional person to deal with it. Please contact professional person to deal with it. - Page 27 Safety operation of flammable refrigerant 1. Transport of equipment containing flammable refrigerants See transport regulations Marking of equipment using signs See local regulations Disposal of equipment using flammable refrigerants See national regulations Storage of equipment applications The storage of equipment should be in accordance with the manufacturer’s instructions.
- Page 28 SAFETY OPERATION OF FLAMMABLE REFRIGERANT should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks.
- Page 29 SAFETY OPERATION OF FLAMMABLE REFRIGERANT covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation. •...
- Page 30 SAFETY OPERATION OF FLAMMABLE REFRIGERANT refrigerant shall be recovered from the system, or isolated (by means of shut off values) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.
- Page 31 SAFETY OPERATION OF FLAMMABLE REFRIGERANT • Become familiar with the equipment and its operation. • Isolate system electrically. • Before attempting the procedure ensure that: Mechanical handling equipment is available, if required, for handling refrigerant cylinders; All personal protective equipment is available and being used correctly; The recovery process is supervised at all times by a competent person;...
- Page 32 SAFETY OPERATION OF FLAMMABLE REFRIGERANT The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant.
- Page 33 Facebook :Kolin Philippines Instagram :kolinphilippines Youtube :kolinphilippines OFFICE PLANT Kolin Building, 1854 Sta. Rita St., Block 3, Lot 5, Main Drive Guadalupe Nuevo, Makati City First Cavite Industrial Estate Service Hotline (02) 8852-6868 Langkaan 1, Dasmariñas City, Cavite Tel. No. (046) 402-0793...
