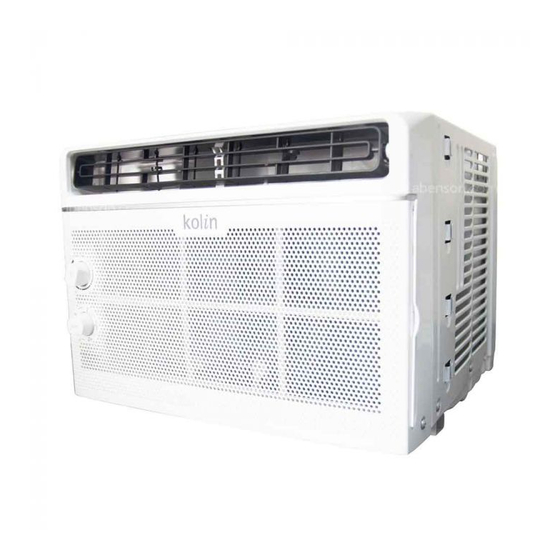

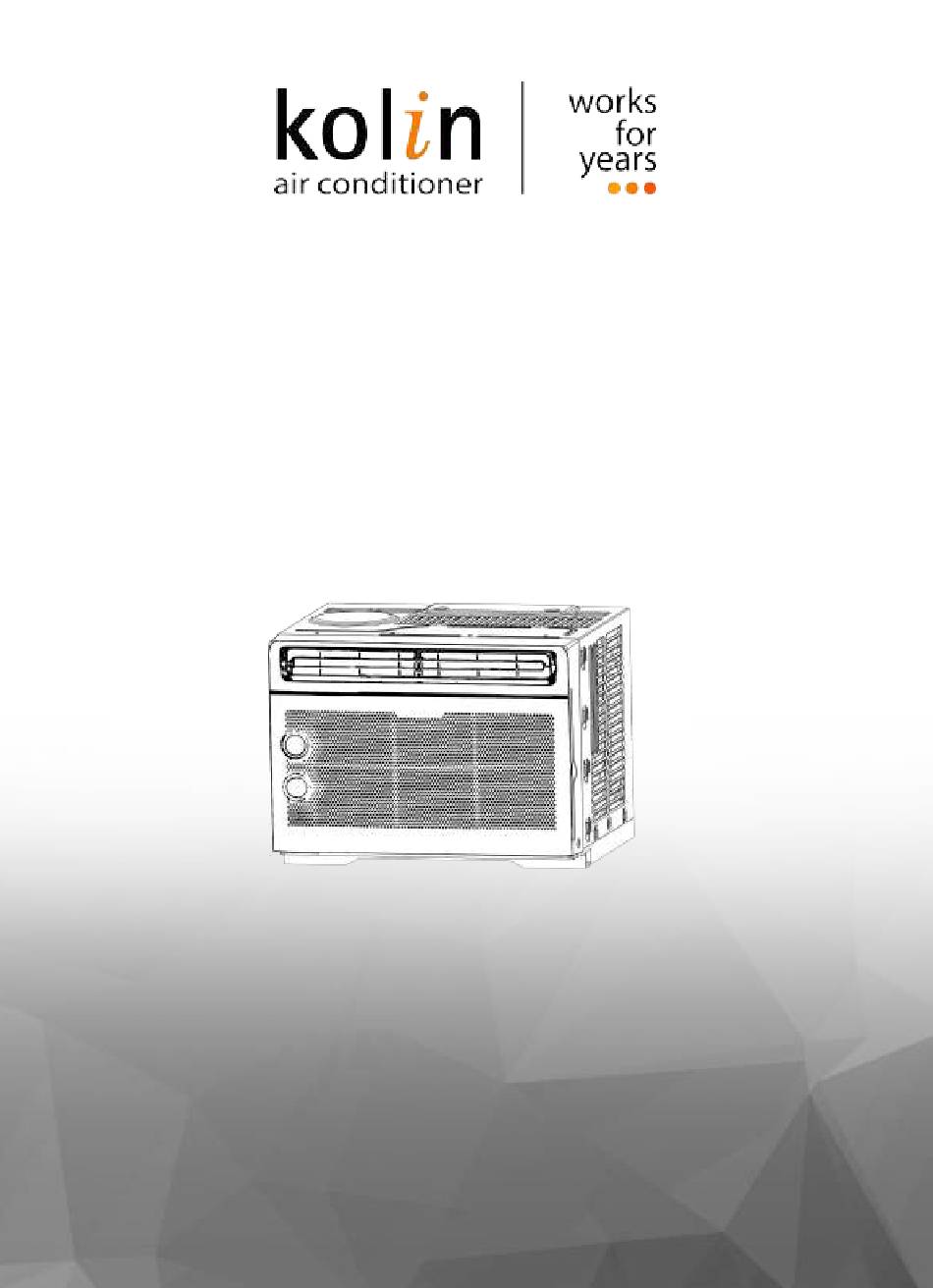

USER MANUAL WINDOW TYPE AIR CONDITIONER KAM-55CMC32 Before using your air conditioner, please read this manual carefully and keep it for future reference. www.kolinphil.com.ph...
CONTENTS 1. SAFETY PRECAUTIONS..............2 2. NORMAL SOUNDS................14 3. OPERATING INSTRUCTIONS ............15 4. INSTALLATION INSTRUCTIONS............16 5. CARE AND CLEANING..............17 6. TROUBLESHOOTING ..............18 7. SPECIFICATIONS ................19 Read This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly.
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousnessis classified by the following indications. WARNING This symbol indicates the possibility of death or serious injury.
Page 4
Do not use the power cord close to heating appliances. It may cause fire and electric shock. Do not use the power cord near flammable gas or combustibles, such as gasoline, benzene, thinner, etc. It may cause an explosion or fire. Ventilate room before operating air conditioner if there is a gas leakage from another appliance.
Page 5
Ensure that the installation bracket of the outdoor appliance is not damaged due to prolonged exposure. If bracket is damaged, there is concern of damage due to falling of unit. Do not use strong detergent such as wax or thinner but use a soft cloth. Appearance may be deteriorated due to change of product color or scratching of its surface.
Page 6
Do not operate y our a ir c onditioner i n a w et r oom s uch a s a b athroom o r l aundry r oom. The appliance with electric heater shall have a t l east 1 m eter s pace t o t he c ombustible materials.
Page 7
SAFETY PRECAUTIONS(prior to operation) Preparing for operation 1. Contact an installation specialist for installation. 2. Plug in the power plug properly. 3. Do not use a damaged or non-standard power cord. 4. Do not share the same outlet with other appliances. 5.
Page 8
Operating Temperature Outdoor temp: Cooling operation Indoor temp: Outdoor temp: Heating operation Indoor temp: Note: Performance may be reduced outside of these operating temperatures. Auto-Restart(on some models) If the unit breaks off unexpectedly due to the power cut,it will restart with the previous function setting automatically when the power resumes.
Page 9
SAFETY PRECAUTIONS WARNINGS (for using R290/R32 refrigerant only) Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
Page 10
SAFETY PRECAUTIONS WARNINGS (for using R290/R32 refrigerant only) 1.Transport of equipment containing flammable refrigerants See transport regulations 2.Marking of equipment using signs See local regulations 3.Disposal of equipment using flammable refrigerants See national regulations. 4.Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions. 5.Storage of packed (unsold) equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.
Page 11
SAFETY PRECAUTIONS 7)Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.
Page 12
SAFETY PRECAUTIONS preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications. NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them. 8.Repair to intrinsically safe components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.
Page 13
SAFETY PRECAUTIONS The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum.
Page 14
SAFETY PRECAUTIONS the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked. 15.Labelling Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant.
NORMAL SOUNDS Points for using air conditioner WARNING To reduce the risk of fire, electric shock, or injury to persons, read the Safety Precautions before operating this appliance. NOTE: If the air conditioner is turned off, wait 3 minutes before restarting. This allows pressure inside the compressor and equalize.
OPERATING INSTRUCTIONS Operation instructions The control panel of the unit you bought may Control Panel be look like one of the following: The controls featured in this manual are representative of many available models. Your model may offer slightly TEMPERATURE different features.
INSTALLATION INSTRUCTIONS NOTE: Before installing, remove all packaging from inside the carton, along with any inserts placed into the side louvers. Select the best location Suggested tools AWNING 1. Screw driver (medium size Phillips) 2. Tape measure or ruler FENCE 3.
CARE AND CLEANING CARE AND CLEANING CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent chock or fire hazards. Air Filter Cleaning The air filter should be checked at least once a month to see if cleaning is necessary.
TROUBLESHOOTING Troubleshooting Tips Save time and money! Review the chart below first and you may not need to call for service. Normal Operation You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.
SPECIFICATIONS Unit dimensions: MODEL BODY DIMENSION(mm) (Btu/h) (W X H X D) 406X306X335 406X306X390 <7000 471X340X400 471X340X400 >7000 NOTE: Value of D is for reference only. Minimum norminal cross-sectional area of conductors: Rated current of appliance(A) Nominal cross-sectional area(mm ) >3 and ≤...
Page 21
The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version. 16120300000439 KPII20190725...
