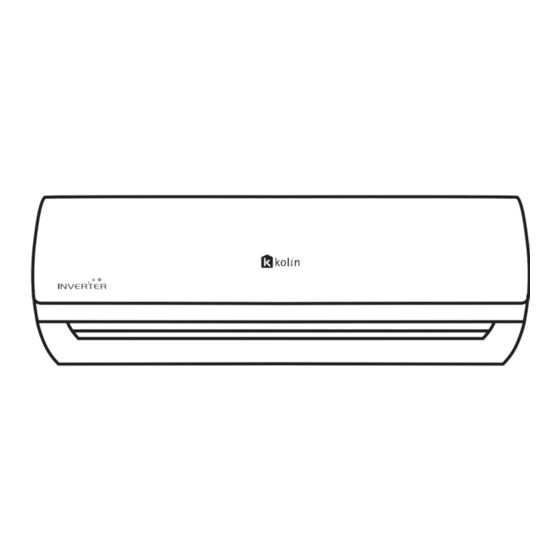

WALL MOUNTED AIR CONDITIONER Owner’s Manual Models: KVM-10IWAH-I KVM-15IWAH-I KVM-20IWAH-I KVM-25IWAH- Please read this instruction manual before using the product. Read carefully before attempting to assemble, install, operate or maintain the product described. Installation shall be done by Authorized Service Partners. Retain these instructions for future reference.
1. Safety Precautions ................2. Parts name ..................3. Operation and introdution of remote controller ........ 4. Clean and maintenance ..............5. Checked items before maintenance ..........6. Installation notice ................7. Installation of indoor unit ..............8. Test and operation ................
7.The damage is caused by natural calamities, bad using environment or force majeure. If it needs to install, move or maintain the air conditioner, please contact Kolin hotline or Authorized Service Partners to conduct it at first. Air conditioner must be installed, moved or maintained by appointed unit.
Page 5
If it needs to install, move or maintain the air co- nditioner, please contact Kolin hotline or autho- WARNING rized service partners to conduct it at first. D o not use means to accelerate the defrosting...
Page 6
Safety operation of flammable refrigerant Installation notes Check whether there is fire source or potential fire source in the maintenance area. The air conditioner must be installed in a room - The naked flame is prohibited in the mainte- that is larger than the minimum room area. The nance area;...
1. Safety Precautions WARNING Installation • Installation or maintenance must be preformed by Authorized Service Partners. • The appliance shall be installed in accordance with national wiring regulations. • According to the local safety regulations, use quali ed power supply circuit and circuit breaker.
• When below phenomenon occurs, please turn o air conditioner and disconnect power immediately, and the contact Kolin hotlines or authorized service partners for service: • Power cord is overheating or damaged. • There’s abnormal sound during operation.
3. Operation of remote controller • Buttons on remote controller • Introduction for icons on display screen I feel Set fan speed Turbo mode Send signal Auto mode Cool mode Dry mode Fan mode Heat mode Sleep mode 8℃ heating function Power limiting operation Health mode ON/OFF...
Page 11
• Introduction for icons on display screen • When selecting heating mode, the air condition- er operates under heat mode. Press " " or " " NOTE: button to adjust set temperature. Press "FAN" This is a general use remote controller. It could button to adjust fan speed.
Page 12
turn to quick COOL or quick HEAT mode. " " ically swing up & down at maximum angle. icon is displayed on remote controller. Press this ● When selecting " " , air condition- 、 、 、 、 button again to exit turbo function and " "...
Page 13
Sleep, circulate between these, after electrified, NOTE Sleep Cancel is defaulted. ● Under on and off status, you can set T-OFF or T-ON Sleep 1 is Sleep mode 1, in Cool modes; sleep ● simultaneously. ● status after run for one hour, the main unit setting Before setting T-ON or T-OFF, please adjust the clock time.
WiFi 3.4 Function introduction for combination buttons " " i urn on WiFi functio " , " i icon will be displayed on the remote controller; Energy-saving function Hold " WiFi " button for 5s to turn off WiFi function and "...
Child lock function Press " " and " " simultaneously to turn on or turn off child lock function. When child lock func- tion is on, " " icon is displayed on remote control- ler. If you operate the remote controller , the " "...
6. Installation notice WARNING sure that the unit is running in cooling mode. Then, fully close the valve at high pressure side (liquid valve). About 30-40 seconds later, fully close the valve at low pressure side (gas valve), immediately stop the unit and disconnect power.
Page 19
Basic requirement Grounding requirement Indoor unit Safety precaution...
7. Installation of indoor unit NOTE Step 1: Choose installation location Step 2: Step 4: Install wall-mounting frame Outlet pipe Step 5: Connect the pipe of indoor unit Step 3: Open piping hole NOTE...
Page 21
NOTE Step 7: Connect wire of indoor unit NOTICE Step 6: Install drain hose...
Page 22
09K: N(1) yellow- blue black brown green Outdoor unit connection NOTICE 12K、18K、24K: N(1) brown yellow- Step 9: blue black green Hang the indoor unit Outdoor unit connection NOTICE Step 8: Bind up pipe NOTICE...
8. Test and operation Check after installation ● Check according to the following requirement after finishing installation. Items to be checked Possible malfunction Has the unit been The unit may drop, shake or installed firmly? emit noise. It may cause insufficient Have you done the refri- cooling(heating) capacity.
9. Configuration of connection pipe Additional refrigerant charging amount for R32 Max. length of connection pipe KVM-10IWAH-I KVM-15IWAH-I KVM-20IWAH-I KVM-25IWAH-I NOTICE NOTICE A: Cut the pipe...
Page 25
B: Remove the burrs smooth surface Remove the burrs with shaper and prevent the ● burrs from getting into the pipe. improper expanding pipe shaper leaning damaged crack uneven surface thickness downwards the length is equal Working temperature range C: Put on suitable insulating pipe Indoor side Outdoor side DB/WB(°C)
10. Specialist’s Manual The following checks shall be applied to instal- fire extinguishing equipment shall be available to ● lations using flammable refrigerants: hand. Have a dry powder or CO fire extinguisher adjacent to the charging area. – the charge size is in accordance with the room size within which the refrigerant containing parts are in- Ventilated area ●...
Page 27
Specialist’s Manual Repair to intrinsically safe components – recovery equipment and cylinders conform to ● the appropriate standards. Do not apply any permanent inductive or capaci- d) Pump down refrigerant system, if possible. tance loads to the circuit without ensuring that this e) If a vacuum is not possible, make a manifold so will not exceed the permissible voltage and current that refrigerant can be removed from various parts...
Page 28
Specialist’s Manual dition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery mac- hine, check that it is in satisfactory working order, has been properly maintained and that any associ- ated electrical components are sealed to prevent ignition in the event of a refrigerant release.
Page 29
The design and specifications are subject to change without prior notice for product improvement. Any updates to the manual will be uploaded to the service website, please check for the latest version. If you have any concerns, please contact us at the following: Customer hotline: (02) 8852-6868 +63 917-881-8982 Text hotline:...
