w w w . k o l i n p h i l . c o m. p h

USER MANUAL

WINDOW TYPE INVERTER

AIR CONDITIONER

Thank you for choosing our product.

For proper operation, please read and keep this manual carefully.

If you have lost this manual, please contact the local agent or visit our site for assistance.

www.kolinphil.com.ph

Table of Contents

Need help?

Do you have a question about the KAG-110RSINV and is the answer not in the manual?

Questions and answers

Summary of Contents for Kolin KAG-110RSINV

Page 1 w w w . k o l i n p h i l . c o m. p h USER MANUAL WINDOW TYPE INVERTER AIR CONDITIONER Thank you for choosing our product. For proper operation, please read and keep this manual carefully. If you have lost this manual, please contact the local agent or visit our site for assistance.
Page 2 MODELS: KAG-110RSINV KAG-145RSINV KAG-200RSINV KAG-240RSINV...
Page 3: Table Of Contents
CONTENTS Thank you for choosing the air conditoner.Our design is based on the best eff- iciency and the lowest noise operation and it can keep the room comfortable. Please read this operating manual carefully before operating the unit and keep it for consultation.
Page 4: The Refrigerant
The Refrigerant • To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The used refrigerant is the ﬂuoride R32, which is specially cleaned. The refrigerant is ﬂammable and inodorous. Furthermore, it can leads to explosion under certain conditions.
Page 5: Precautions
Precautions Caution: Risk of ﬁre/ IMPORTANT NOTE: Read this manual ﬂammable materials carefully before installing or operating (Required for R32/R290 units only) your new air conditioning unit. Make sure to save this manual for future reference. The air conditioner should be installed in accordance with national wiring regulation. Air Conditioner should be properly grounded.
Page 6: Function
Function Introduction Window type room air conditioners can Autumn Spring regulate the room temperature and dry Summer Winter Room temp. the room. It is convenient for your work, study and life. It can be widely used in residence, Wind direction so on.
Page 7: Power Requirement
Power requirement Rated voltage :230V~ 60Hz ● The electric components will be damaged when the voltage is too high. If the voltage is too low, the compressor will vibrate violently to damage the refrigerant system and easily cause the compressor and electric components not work. The ground must be connected.
Page 8: Installation
Installation Installation precaution: Window type conditioner is so valuable and the improper installation of it will cause a lot of da- mage! Please associate the professional tech- nician to install the unit and don’t install it by yourself. Otherwise, we are not responsible for the damage like this.
Page 9 Installation procedure: 1) Remove the sticker from the front panel. 2) Put the unit into the installation hole. ● When installing the unit, it should slant 。。 Inclined about down to the back to make sure the condensation water can be drained 。...
Page 10 Drain water : Drain pan and drain hose need to be installed before using. Drain hose is not included in the products, you need to purchase it locally to satisfy your particular needs. Use the following procedure to install drain pan and drain hose.
Page 11: Notes For Installation
Notes for installation Remove Before removing air conditioner to the other place, you Then it must be done under the direction of the profe- ssional technician. In addition, the charge of this must be paid. Noise enlargement of noise and vibration. ●...
Page 12: Air Direction Adjustment

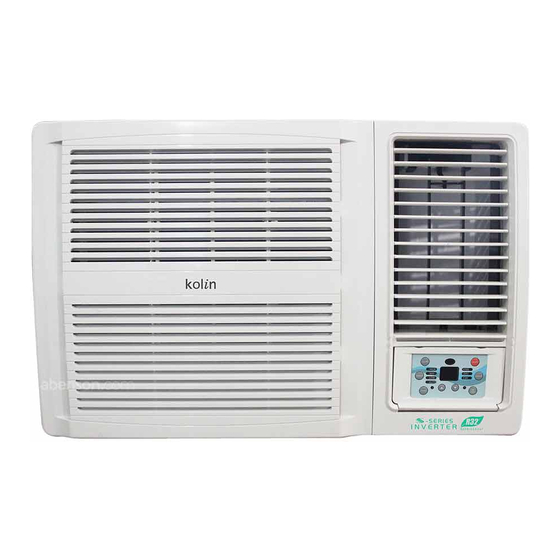

Panel outlook picture, just for reference, please take the real unit as standard. Cabinet Air inlet (behind the louver front intake grille) Front intake grille Remote control panel Air direction adjustment positioning the vane to discharge the air upwards, downwards or straight out. - 9 -...
Page 14 Introduction for buttons on remote controller Note: ● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
Page 15 Introduction for buttons on remote controller FAN button Pressing this button can select fan speed circularly as: AUTO, SPEED 1 ( SPEED 2 ( ) , SPEED 3 ( ), SPEED 4 ( ) (unavailable in this air conditioner. Speed 4 is the same with speed 3.). AUTO SPEED 1 (equals to low fan speed) SPEED 2 (equals to mid fan speed)
Page 16 Introduction for buttons on remote controller Note: ● Range of time setting is: 0.5~24h ● The interval between two motions can't exceed 5s, otherwise the remote con- troller will exit setting status. Function introduction for combination buttons Child lock function Press “+”...
Page 17 Replacement of batteries in remote controller 1. Press the mark “ ” on back cover of batteries box cover for remote controller with fingers as shown in the fig, and then remove the batteries box cover along the arrow direction. Battery 2.
Page 18: Remote Control Panel
Remote control panel Note: If wireless remote controller is lost, open the surface panel and operate manually. POWER BUTTON SIGNAL RECEIVER Operation starts when pressing this button, and stops when pressing this button again. MODE BUTTON SWING BUTTON Select the operation mode, AUTO, COOL, FAN, Activate the automatic air swing function.
Page 19: Operation Tips
Operation Tips ※ Operating Temperature Range Indoor side DB/WB(°C) Outdoor side DB/WB(°C) Maximum cooling 32/23 43/- The operating temperature range (outdoor temperature) for cooling only unit is 18°C~ 43°C. Operation for comfort and economy Do not overcool the room te- Keep blind or curtains closed.
Page 20: Caution
Caution Operations for safety and health 1) The plug must be accessible after the appliance is positioned. 2) Do not use this appliance in the laundry. 3) If the power cord is damaged, it must be replaced by the manufacture or its service agent in void of hazard.
Page 21 Always wait at Always wait at least 3 minutes before least 3 minutes. switching the air conditioner on again after you have switched it off during cooling or heating. Inappropriate treatment of the unit involves the risk of severe damages of people and material. Details to this refrigerant are found in chapter “refrigerant”.
Page 22: Care And Maintenance
Care and maintenance Always turn off the air conditioner and main power supply before cleaning to ensure safety. Cleaning unit 1. Cut power of f before cleaning. Plug out only washed at least once every two weeks or as after air con- often as it needs cleaning.
Page 23: Troubleshooting Guide
Troubleshooting guide Please check the following items before asking for repair, it saves your time andmoney. Fault phenomenon Trouble-shooting ● Is there a power failure? Air conditioner ● Is the plug out? dose not oper- ● Is power fuse or switch off ? ate at all.
Page 24: After Service
Malfunction code Solution Means defrosting status. It’s the normal phenomenon. Please contact professional person to deal with it. Please contact professional person to deal with it. Please contact professional person to deal with it. Please contact professional person to deal with it. Please contact professional person to deal with it.
Page 25 Safety operation of ﬂammable refrigerant 1. Transport of equipment containing ﬂammable refrigerants See transport regulations 2. Marking of equipment using signs See local regulations 3. Disposal of equipment using ﬂammable refrigerants See national regulations 4. Storage of equipment applications The storage of equipment should be in accordance with the manufacturer’s instructions.
Page 26 SAFETY OPERATION OF FLAMMABLE REFRIGERANT should be kept sufﬁciently far away from the site of installation, repairing, removing and disposal, during which ﬂammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no ﬂammable hazards or ignition risks.
Page 27 SAFETY OPERATION OF FLAMMABLE REFRIGERANT covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation. •...
Page 28 SAFETY OPERATION OF FLAMMABLE REFRIGERANT refrigerant shall be recovered from the system, or isolated (by means of shut off values) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.
Page 29 SAFETY OPERATION OF FLAMMABLE REFRIGERANT • Become familiar with the equipment and its operation. • Isolate system electrically. • Before attempting the procedure ensure that: Mechanical handling equipment is available, if required, for handling refrigerant cylinders; All personal protective equipment is available and being used correctly; The recovery process is supervised at all times by a competent person;...
Page 30 SAFETY OPERATION OF FLAMMABLE REFRIGERANT The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that ﬂammable refrigerant does not remain within the lubricant.
Page 31 KPII 20190319...

This manual is also suitable for:

Kag-145rsinv Kag-200rsinv Kag-240rsinv
