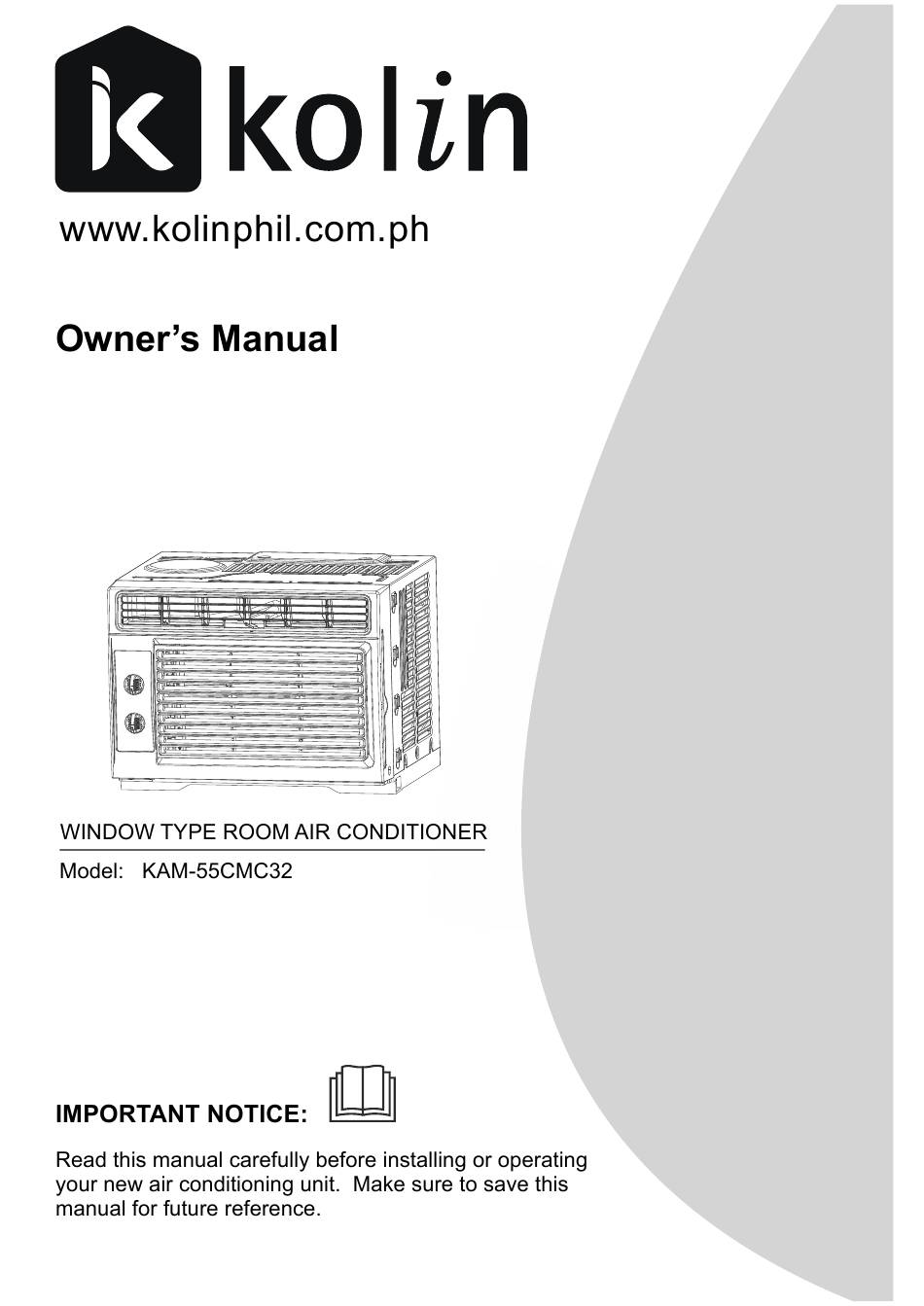

Kolin KAM-55CMC32 Owner's Manual

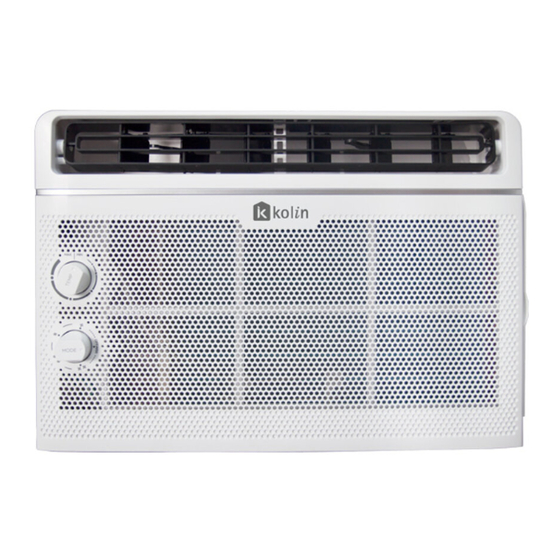

Window type room air conditioner
Hide thumbs Also See for KAM-55CMC32:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KAM-55CMC32 and is the answer not in the manual?

Questions and answers

Related Manuals for Kolin KAM-55CMC32

Summary of Contents for Kolin KAM-55CMC32

  • Page 3: Table Of Contents

    Table of Contents IMPORTANT SAFETY INSTRUCTIONS .........04 1.Warning .....................................04 2.Caution .....................................05 3.Operating Temperature ...............................07 4.Note About Fluorinated Gasses ..........................08 5.WARNING(for using R290/R32 refrigerant only) ....................08 6.SOCIABLE REMARK .................................15 NORMAL SOUNDS ..............16 1.Points for using air conditioner ..........................16 2.Noise level ..................................16 3.Power supply voltage ..............................16 4.Energy Saving Ideas...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ THIS MANUAL Inside you will nd many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner.

  • Page 5: Caution

    WARNING Do not use the power cord near ammable gas or combustibles, such as gasoline, benzene, thinner, etc. It may cause an explosion or re. Ventilate room before operating air conditioner if there is a gas leakage from another appliance.It may cause explosion, re and burns. Do not disassemble or modify unit.
  • Page 6 CAUTION This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 7: Operating Temperature

    Preparing for operation 1. Contact an installation specialist for installation. 2. Plug in the power plug properly. 3. Do not use a damaged or non-standard power cord. 4. Do not share the same outlet with other appliances. 5. Do not use an extension cord. 6.

  • Page 8: Note About Fluorinated Gasses

    CAUTION Before installing, remove all packaging from inside the carton, along with any inserts placed into the side louvers. Remove inserts placed Inserts placed into into the side louvers. the side louvers. Note About Fluorinated Gasses -Fluorinated greenhouse gases are contained in hermetically sealed equipment. For speci c information on the type, the amount and the CO equivalent in tonnes of the uorinated greenhouse gas(on some models), please refer to the relevant label on the unit itself.
  • Page 9 IMPORTANT NOTE:Read this manual Caution: Risk of fire/ carefully before installing or operating flammable materials your new air conditioning unit. Make sure (Required for R32/R290 units only) to save this manual for future reference. Explanation of symbols displayed on the unit(For the unit adopts R32/R290 Refrigerant only): This symbol shows that this appliance used a ammable refrigerant.
  • Page 10 WARNINGS (for using R290/R32 refrigerant only) 2)Work procedure Work shall be undertaken under a controlled procedure so as to minimise the risk of a ammable gas or vapour being present while the work is being performed. 3)General work area All maintenance sta and others working in the local area shall be instructed on the nature of work being carried out.
  • Page 11 WARNINGS (for using R290/R32 refrigerant only) Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.
  • Page 12 WARNINGS (for using R290/R32 refrigerant only) 9.Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental e ects. The check shall also take into account the e ects of aging or continual vibration from sources such as compressors or fans. 10.Detection of flammable refrigerants Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks.
  • Page 13 WARNINGS (for using R290/R32 refrigerant only) 13.Charging procedures In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of di erent refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.
  • Page 14 WARNINGS (for using R290/R32 refrigerant only) 16.Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed.

  • Page 15: Sociable Remark

    SOCIABLE REMARK When using this unit in the European countries, the following informations must be followed: Do not dispose this product as unsorted municipal waste. Collection of such waste DISPOSAL: separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: (A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user.

  • Page 16: Normal Sounds

    NORMAL SOUNDS Points for using air conditioner Energy Saving Ideas WARNING must t the room size for e cient and To reduce the risk of re, electric shock, or satisfactory operation. injury to persons, read the Safety Precautions before operating this side of your room.

  • Page 17: Normal Sounds

    Normal sounds Sound of Rushing Air At the front of the unit, you may hear the sound of rushing air being moved by the fan. Gurgle/Hiss “Gurgling or hissing ”noise may be heard due to refrigerant passing through evaporator during normal operation.

  • Page 18: Operation Instructions

    OPERATION INSTRUCTIONS The control panel of the unit you bought may Control Panel be look like one of the following: The controls featured in this manual are representative of many available models. Your TEMPERATURE model may o er slightly di erent features. Cool Mode The desired cool setting is selected by rotating the knob to the right to the appropriate location.

  • Page 19: Installation Instructions

    INSTALLATION INSTRUCTIONS Note: Before installing, remove all packaging Select the best location from inside the carton, along with any inserts placed into the side louvers. AWNING FENCE Suggested tools 1 . Screw driver (medium size Phillips) 2. Tape measure or ruler 3.

  • Page 20: Care And Cleaning

    CARE AND CLEANING Air Filter Cleaning The air lter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the lter can build up and cause an accumulation of frost on the cooling coils. Remove the lter by sliding out from the right-hand side.

  • Page 21: Troubleshooting Tips

    TROUBLESHOOTING TIPS Save time and money! Review the chart below rst and you may not need to call for service. Normal Operation You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve e ciency.

  • Page 22: Specifications

    SPECIFICATIONS Unit dimensions: MODEL BODY DIMENSION(mm) (Btu/h) (W X H X D) 406X306X335 406X306X390 <7000 471X340X400 471X340X400 >7000 NOTE: Value of D is for reference only. Minimum norminal cross-sectional area of conductors: Nominal c ros s -s ec tional a rea(mm ) Rated current of appliance(A) 3 and 0.75...
  • Page 23 The design and specifications are subject to change without prior notice for product improvement. Any updates to the manual will be uploaded to the service website, please check for the latest version. If you have any concerns, please contact us at the following: Customer hotline: (02) 8852-6868 Text hotline:...
