Physical
Height:
Length:
Width:
Weight:
Memory
Packet Buffer Memory:
Port Specifications
10Base-T and 100Base-TX Ports
Table A-1 shows the 10Base-T/100Base-TX pinouts. These ports are
wired MDI-X. All undefined pins are not used.
MDI/MDI-X Crossover Cable Wiring

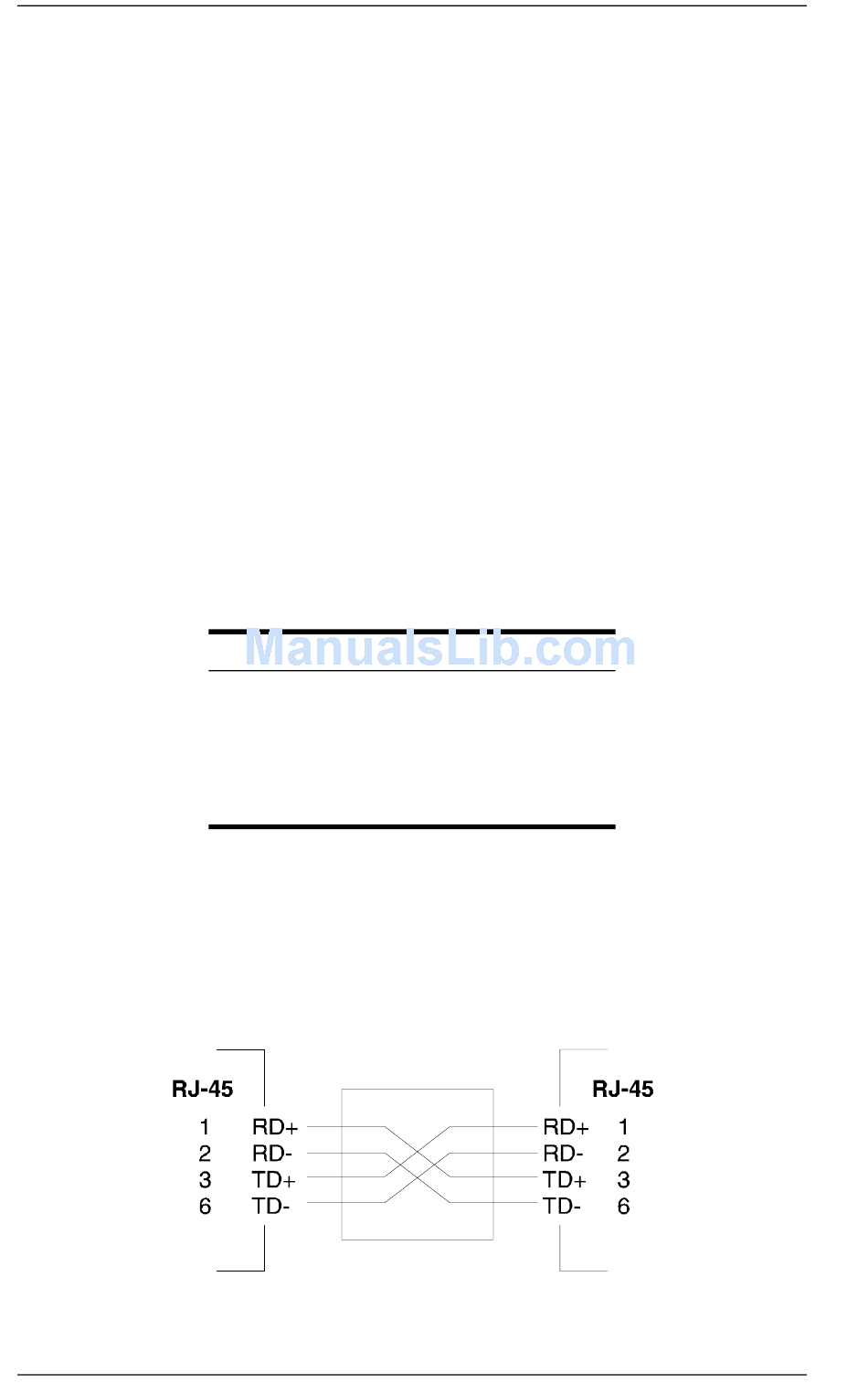

Figure A-1 shows the wiring scheme for implementing a crossover cable
if needed for connection to the switch's 10Base-T or 100Base-TX ports.
Such a cable may be required when connecting the switch to another
switch or a hub device.
Figure A-1. External Crossover Cable Wiring
16 Technical Specifications
Table A-1. 10Base-T/100Base-TX Pinouts
Pin
1
2
3
6
1.46 in. (3.7 cm)
4.65 in. (11.6 cm)
9.88 in. (24.9 cm)
1.8 lb. (0.815 kg)
128 KB per port
MDI-X Signal Name
RD+
RD-
TD+
TD-
ELS100-8TXUF2
