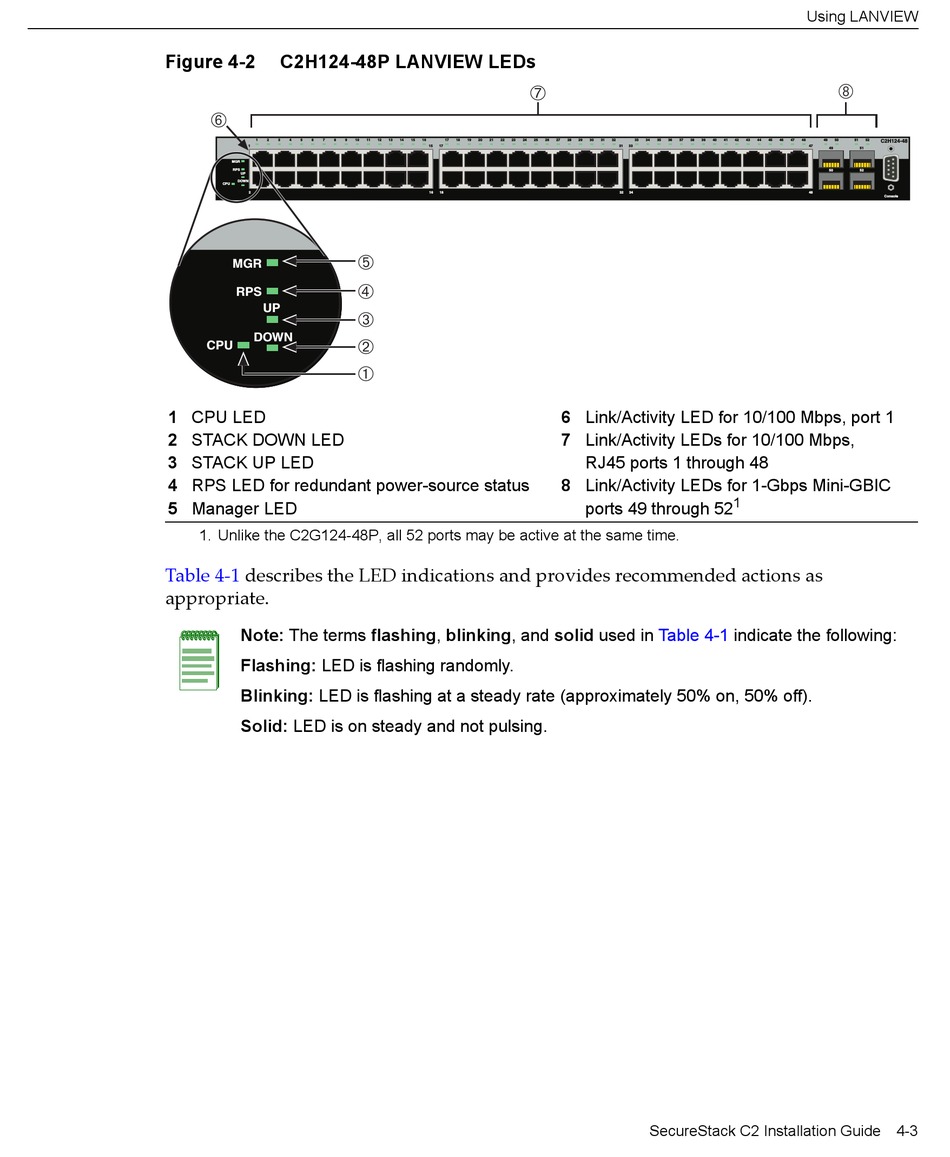

Figure 4-2

C2H124-48P LANVIEW LEDs

Å
1 CPU LED
2 STACK DOWN LED
3 STACK UP LED
4 RPS LED for redundant power-source status
5 Manager LED
1. Unlike the C2G124-48P, all 52 ports may be active at the same time.
Table 4‐1 describes the LED indications and provides recommended actions as
appropriate.
Note: The terms flashing, blinking, and solid used in
Flashing: LED is flashing randomly.
Blinking: LED is flashing at a steady rate (approximately 50% on, 50% off).
Solid: LED is on steady and not pulsing.
Æ
Ä
Ã
Â
Á
À
6 Link/Activity LED for 10/100 Mbps, port 1
7 Link/Activity LEDs for 10/100 Mbps,
RJ45 ports 1 through 48
8 Link/Activity LEDs for 1-Gbps Mini-GBIC
1
ports 49 through 52
Table 4-1 indicate the following:
SecureStack C2 Installation Guide 4-3
Using LANVIEW
