3. Install the CSX-COMP/ENCR in the HSIM-W6 by unlocking the top and bottom plastic
locking tabs of the module faceplate. Slide out the module and place it on its side with the
internal components facing up.
Ensure that the CSX-COMP/ENCR is aligned such that its connector pins correctly align
NOTE
with the D-Type connector on the HSIM-W6.
4. Locate the D-Type connector and the standoffs on the HSIM-W6 (refer to
5. The D-Type connector pins of the CSX-COMP/ENCR only fits one way onto the HSIM-W6
D-Type connector. Lower the CSX-COMP/ENCR onto the standoffs and align the connector
with the connector pins. Carefully insert the connector pins of the CSX-COMP/ENCR into the
connector on the HSIM-W6.
6. Press down firmly on the CSX-COMP/ENCR until the pins fit all the way into the connector.
7. Secure the CSX-COMP/ENCR with the standoff screws supplied with the CSX-COMP/ENCR.
The CSX-COMP/ENCR installation is complete.
CSX-COMP/ENCR
HSIM-W6 Installation Guide
Standoff Screws
Standoff

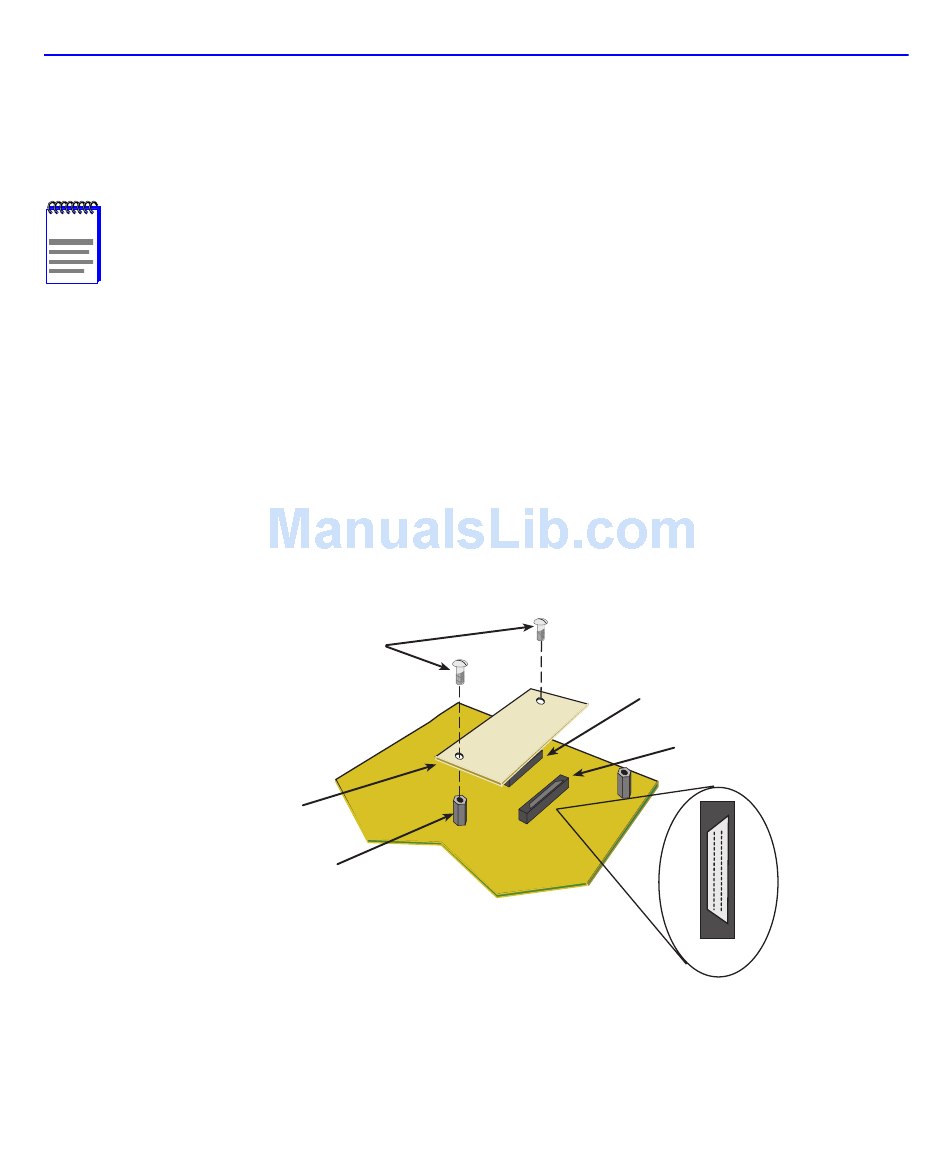

Figure 3-3 CSX-COMP/ENCR
CSX-COMP/ENCR Installation
Figure 3-3).
D-Type
Connector Pins
D-Type
Connector
Detail
2204N01
