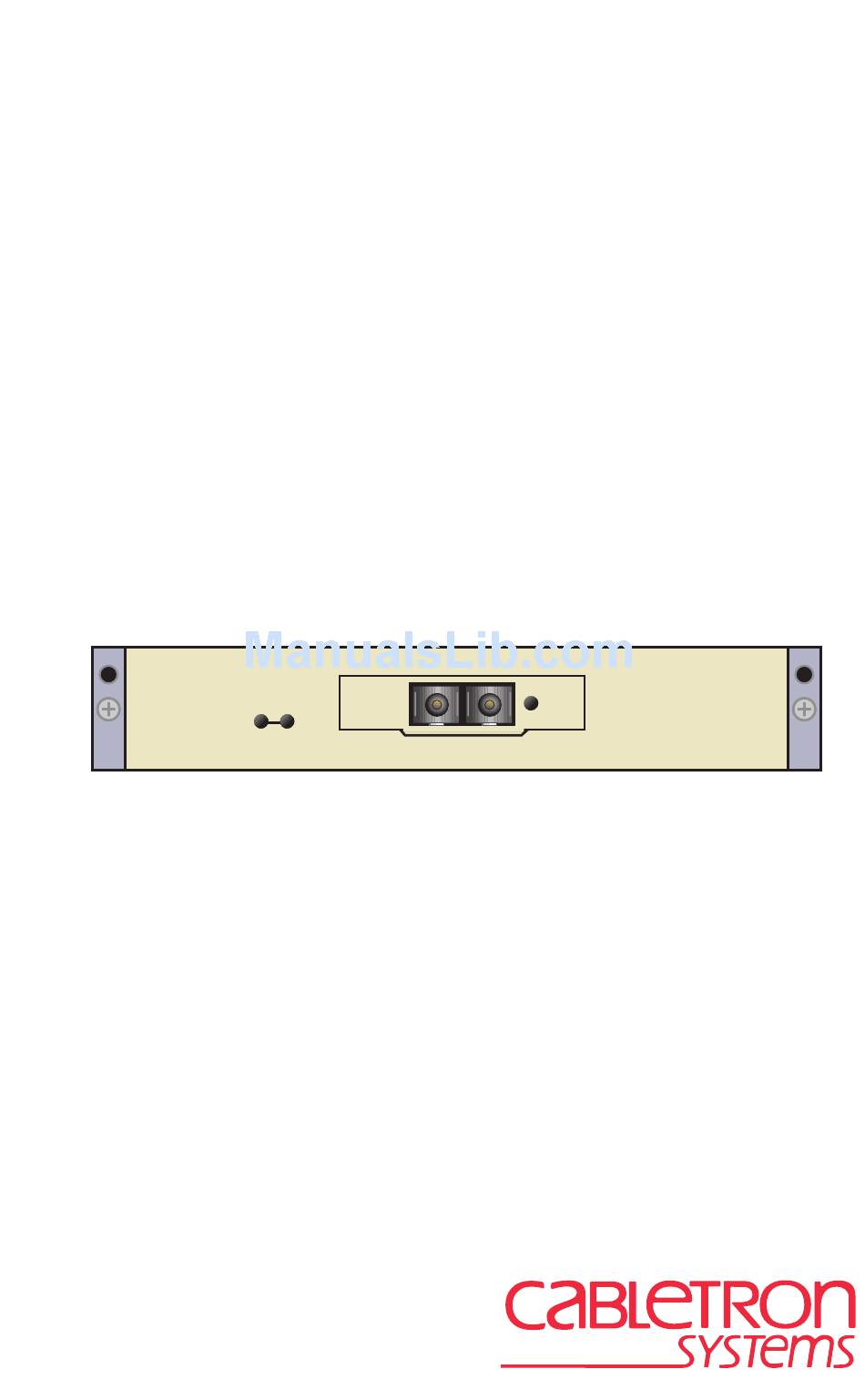

- Page 1 HSIM-G01/G09 User’s Guide HSIM-G 9032398-04...
-
Page 3: Fcc Notice
Only qualified personnel should perform installation procedures. Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. -
Page 4: Industry Canada Notice
IMPORTANT: Before utilizing this product, carefully read this License Agreement. This document is an agreement between you, the end user, and Cabletron Systems, Inc. (“Cabletron”) that sets forth your rights and obligations with respect to the Cabletron software program (the “Program”) contained in this package. -
Page 5: United States Government Restricted Rights
Government is subject to restrictions as set forth in subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at 252.227-7013. Cabletron Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03867-0505. HSIM-G01/G09 User’s Guide... -
Page 6: Safety Information
Notice CLASS 1 LASER TRANSCEIVERS THE HSIM-G01/G09 GIGABIT ETHERNET MODULES USE CLASS 1 LASER TRANSCEIVERS. READ THE FOLLOWING SAFETY INFORMATION BEFORE INSTALLING OR OPERATING The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This control loop eliminates the need for maintenance checks or adjustments. -
Page 7: Declaration Of Conformity
___________________________________ Title Rochester, NH, USA ___________________________________ Location HSIM-G01/G09 User’s Guide 89/336/EEC 73/23/EEC Cabletron Systems, Inc. 35 Industrial Way PO Box 5005 Rochester, NH 03867 Mr. J. Solari Cabletron Systems Limited Nexus House, Newbury Business Park London Road, Newbury Berkshire RG13 2PZ, England... - Page 8 Notice HSIM-G01/G09 User’s Guide...
-
Page 9: Table Of Contents
CHAPTER 1 INTRODUCTION Using This Manual... 1-2 Document Conventions ... 1-2 Getting Help... 1-3 Overview... 1-4 1.4.1 Connectivity ... 1-4 1.4.2 LANVIEW Diagnostic LEDs ... 1-4 Related Documentation ... 1-4 CHAPTER 2 INSTALLATION Unpacking the HSIM-G... 2-1 Installing an HSIM-G ... 2-2 2.2.1 Installing an HSIM-G in an Interface Module ... - Page 10 Contents viii HSIM-G01/G09 User’s Guide...
-
Page 11: Chapter 1 Introduction
Welcome to the Cabletron Systems HSIM-G01/G09 User’s Guide. This manual describes the HSIM-G01 and HSIM-G09 and provides information concerning features, installation, troubleshooting, the use of Local Management, and specifications. The HSIM-G01 and HSIM-G09 function identically with one NOTE exception: the HSIM-G01 uses a short wavelength laser device that connects to 50 or 62.5 micron multimode fiber optics, and... -
Page 12: Using This Manual
Chapter 1: Introduction USING THIS MANUAL Read through this manual completely to familiarize yourself with its content and to gain an understanding of the features and capabilities of the HSIM-G. The following list provides an overview of each section of this manual: Chapter 1, Introduction, outlines the contents of this manual, describes... -
Page 13: Getting Help
A description of any action(s) already taken to resolve the problem (e.g., changing mode switches, rebooting the unit, etc.) • The serial and revision numbers of all involved Cabletron Systems products in the network • A description of your network environment (layout, cable type, etc.) •... -
Page 14: Overview
Chapter 1: Introduction OVERVIEW The HSIM-G extends the functionality of certain Cabletron Systems interface modules or standalone devices by providing high-speed uplink capability through Gigabit Ethernet technology. Section 1.4.2 give information on some of the features of the HSIM-G. 1.4.1 Connectivity The HSIM-G01 module supports 1000Base-SX, providing one SC fiber... -
Page 15: Chapter 2 Installation
If the HSIM-G is to be installed in an interface module, refer to the applicable interface module User’s Guide. After removing the module from its non-conductive bag, visually inspect the device. If you notice any signs of damage, contact Cabletron Systems immediately. Refer to HSIM-G01/G09 User’s Guide CHAPTER 2 INSTALLATION Section 1.3... -
Page 16: Installing An Hsim-G
Chapter 2: Installation INSTALLING AN HSIM-G You can install an HSIM-G in any Cabletron Systems device that supports HSIM technology (e.g., 2E42-27, 6E132-25). Refer to the release notes for the version of firmware running NOTE on the host platform to ensure that the HSIM-G is supported. - Page 17 HSIM Coverplate Faceplate Mounting Screws Figure 2-1 Removing the HSIM Coverplate Refer to Figure 2-2 faceplate. Align the HSIM connector of the HSIM-G with the HSIM pins on the module. When installing the HSIM-G, ensure that the HSIM pins on the module or device align with the HSIM-G connector to prevent CAUTION bending the pins.
- Page 18 Chapter 2: Installation Ensure that the standoffs on the interface module align with the NOTE standoff screw holes on the HSIM-G. Secure the HSIM-G to the module faceplate using the mounting screws saved in step 5. Secure the HSIM-G to the module standoffs using the standoff screws saved in step 6.
-
Page 19: Installing An Hsim-G In A Standalone Device
2.2.2 Installing an HSIM-G in a Standalone Device To install an HSIM-G into a standalone device (e.g., 2E42-27), perform the following steps: Power down the device and remove the power cord. To install the HSIM-G in a standalone device, the device must first be powered down. -
Page 20: Connecting To The Network
Chapter 2: Installation Secure the HSIM-G to the module standoffs using the standoff screws saved in step 6. Ensure that the chassis cover is in place before reconnecting the power cord. Reattach the chassis cover to the standalone device, reconnect the power cord, and reconnect the standalone device to the network. -
Page 21: Hsim-G Network Connection
2.3.1 HSIM-G Network Connection If connecting the HSIM-G09 to the network using multimode NOTE fiber cable as the premises cabling, refer to before following this procedure. To connect the HSIM-G01 using multimode and single mode fiber, and the HSIM-G09 using single mode fiber to the network, perform the following steps: The HSIM-G uses Class 1 lasers. - Page 22 Chapter 2: Installation At the other end of the fiber optic cable, attach the SC connector to the other device. Verify that a link exists by checking that the link (LNK) LED is ON (solid green), the port receive (RX) LED is ON (flashing amber, blinking green, or solid green).
-
Page 23: Hsim-G09 Connection Using Multimode Cable
It may need to be wiggled gently to release the latching keys. If a link has not been established, refer to Cabletron Systems. Refer to 2.3.2 HSIM-G09 Connection Using Multimode Cable When using premises multimode fiber cable for the HSIM-G09... - Page 24 Chapter 2: Installation 2-10 HSIM-G01/G09 User’s Guide...
-
Page 25: Lanview Leds
CHAPTER 3 LANVIEW LEDs This chapter describes how to use the LANVIEW LEDs to monitor the status of the HSIM-G and diagnose problems. Figure 3-1 shows the location of the HSIM-G LEDs. Transmit (TX) HSIM-G Link (LNK) Receive (RX) 2398_leds Figure 3-1 HSIM-G LANVIEW LEDs HSIM-G01/G09 User’s Guide... - Page 26 Chapter 3: The terms flashing, blinking, and solid used in NOTE indicate the following: Flashing indicates an irregular LED pulse. Blinking indicates a steady LED pulse. (approximately 50% on, 50% off) Solid indicates a steady LED light. No pulsing. Color Green (Flashing) Amber (Blinking) Transmit...
-
Page 27: Chapter 4 Local Management
LOCAL MANAGEMENT This chapter provides information on the HSIM-G screens accessible via the Local Management of the host platform. One Local Management screen is specific to the HSIM-G, which is detailed in this chapter. All other screens are detailed in the Local Management manual for the host platform, and are not covered in this manual. -
Page 28: Gigabit Ethernet Configuration Screen
Chapter 4: Local Management Module Password Selection Main Menu Chassis Menu Figure 4-1 Typical Hierarchy of Local Management Screens GIGABIT ETHERNET CONFIGURATION SCREEN The Gigabit Ethernet Configuration screen allows the user to support the HSIM-G01 and the HSIM-G09. The screen (see Figure (HSIM-G01 or HSIM-G09), the device or module in which the HSIM-G is installed, and the port number of the module in which it is installed. - Page 29 Event Message Line Module Type: 6E133-25 Slot Number: X Port Type Link Status Current Oper. Mode Desired Oper. Mode Advertised Ability SAVE Figure 4-2 Gigabit Ethernet Configuration Screen The following defines each field of the Gigabit Ethernet Configuration screen. Port X (Read-Only) The port or interface number on the host platform in which the HSIM-G is installed.
-
Page 30: Configuring The Hsim-G Port
Chapter 4: Local Management Current Oper. Mode (Read-Only) Displays the current operating mode of the port. Regardless of whether an HSIM-G01 or HSIM-G09 is installed, this field displays 1000Base-XFD. Desired Oper. Mode (Toggle) Allows the user to select the desired operational mode for an HSIM-G interface. -
Page 31: Setting The Operational Mode
4.2.1.1 Setting the Operational Mode Use the Desired Oper. Mode field to set the active technology. This field steps between Auto-Negotiation and 1000Base-XFD. If Auto-Negotiation is selected, the HSIM-G automatically sets the active technology to auto-negotiate with another 802.3z compliant device. 1000Base-XFD must be chosen if the device on the other side of the link does not support Auto-Negotiation. - Page 32 Chapter 4: Local Management HSIM-G01/G09 User’s Guide...
-
Page 33: Appendix Aspecifications
This appendix lists the specifications and regulatory requirements for the HSIM-G01 and HSIM-G09. Cabletron Systems reserves the right to change these specifications at any time without notice. The HSIM-G01 and HSIM-G09 are both fiber optic devices with an SC connector. The HSIM-G01 supports multimode (MMF) fiber cable, and the HSIM-G09 supports both multimode and single mode (SMF) fiber... -
Page 34: Hsim-G09 Specifications (1000Base-Lx
