PRE-INSTALLATION
To prepare the device for WPIM installation, you
must disconnect the device from the network, and
remove the cover from the CSX200, CSX400, and
CSX400-DC or remove the HSIM-W6 module. To
prepare the device for WPIM installation, proceed
as follows:
1. Turn off and disconnect the device from the power
source.
2. Mark all network cables attached to the device for
ease of re-installation.
3. Disconnect all network cables attached to the
device.
4. Refer to detailed instructions contained in the
CSX200 , and CSX400 and CSX400-DC User's
Guides to remove the chassis cover, and the
HSIM-W6 User's Guide to remove the module.
This procedure must be completed before
installing the WPIM.
INSTALLING THE WPIM
To install the WPIM into the device, refer to Figure 1
and complete the following steps:
When removing an existing WPIM, make
!
sure to pull the module straight up to avoid
damaging the connector.
1. Remove the blank faceplate from the appropriate
WAN slot by removing the three WPIM screws
that secure it to the standoffs.
2. Orient the WPIM as shown in Figure 1.
3. Carefully insert the WPIM connector into the
WPIM connector pins on the device.
4. Press down firmly on the WPIM until the pins slide
all the way into the connector. Ensure that the
WPIM seats flush on the standoffs.
5. Secure the WPIM to the three standoffs with the
WPIM screws.
— 2 —
WPIM

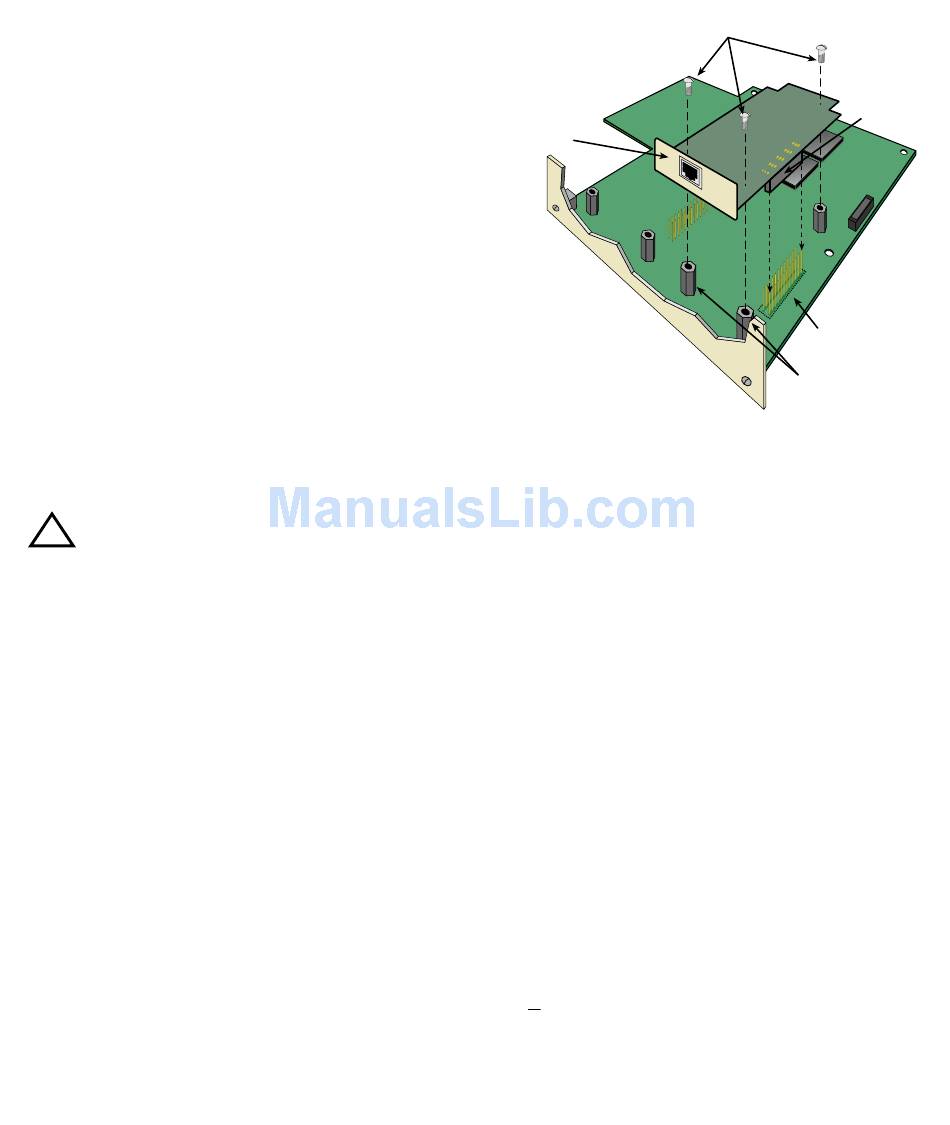

Figure 1 Installing the WPIM
POST-INSTALLATION
1. Reinstall the cover or module as applicable.
2. Refer to the CSX200 , CSX400 and CSX400-DC ,
and HSIM-W6 User's Guides to reinstall network
cables and ensure that you have the correct cable
for the installed WPIM.
3. Refer to instructions contained in the CSX200 ,
CSX400 and CSX400-DC , and HSIM-W6 User's
Guides or the respective QuickSTART Guides to
reapply power.
4. After reapplying power, check the LEDs for the
following conditions:
• Verify that the PWR LED is on, indicating that the
device is receiving power.
• After the device runs a self test, the CPU LED
blinks green indicating normal operation.
• If the CPU LED remains red, the processor is
faulty; contact Cabletron Systems.
REQUIRED QuickSET OPERATIONS
Before the device and the WPIM can participate and
function correctly in your network, you must
reconfigure your QuickSET software for the WPIM.
The QuickSET Wide Area configuration window for
the WPIM installed displays after clicking on the
Next>> button in the Ethernet configuration window.
The Ethernet configuration window displays after
navigating the first and second introductory
windows.
— 3 —
WPIM Screws
WPIM
Connector
WPIM
Connector Pins
Standoffs
