Receive Unit with one Bi-directional Data Channel and two
Uni-directional Alarms for a Singlemode Fibre Link

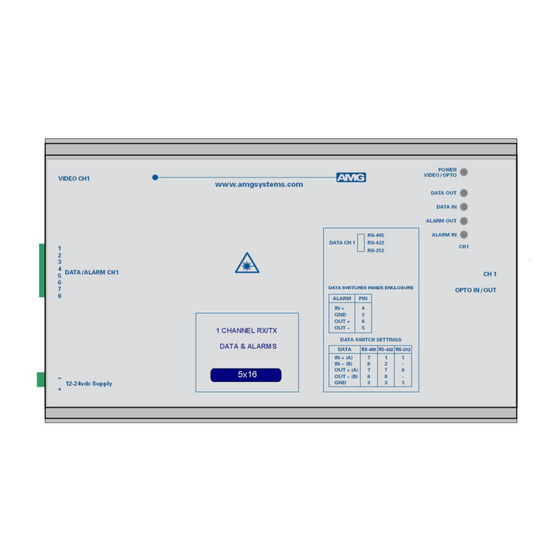

The AMG5516 is a standalone system designed to receive two uni-directional alarms and transmit and
receive one data signal over a Singlemode optical fibre.
The AMG5516 is designed to be powered using an AMG2001 standalone power supply.
The AMG5516 is designed to operate with an AMG5515 or rackmount equivalent AMG5515R transmit
unit in a point to point configuration. The R suffix in the partno. indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG5516
Instruction Manual
Page 1 of 8
AMG5516 Instruction Sheet D20739-
01.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG5516
Summary of Contents for AMG AMG5516
- Page 1 Receive Unit with one Bi-directional Data Channel and two Uni-directional Alarms for a Singlemode Fibre Link The AMG5516 is a standalone system designed to receive two uni-directional alarms and transmit and receive one data signal over a Singlemode optical fibre.
-
Page 2: Table Of Contents
Removal / replacement from / to the Case..................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5516 Instruction Sheet D20739- document without notice. The information herein is believed to 01.doc... -
Page 3: Introduction
Optical Connection The AMG5516 connections are illustrated in the following example which shows an AMG5515 transmit unit together with an AMG5516 standalone receive unit configured as a single channel point to point system. AMG Systems Ltd. reserves the right to make changes to this... -
Page 4: Connections
Alarm Outputs Channels 1-2 Each alarm output uses a Solid-state relay, with a maximum load current of 150mA at 125Vac/dc and Ron < 6.5Ω. AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5516 Instruction Sheet D20739- document without notice. -
Page 5: Front Panel Indicators
ALARM 2 OUT........Green Alarm ON / Contacts closed. Alarm OFF / Contacts open. AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5516 Instruction Sheet D20739- document without notice. The information herein is believed to 01.doc... -
Page 6: Data And Alarm Channel Configuration
RS-485 bus high (+5 volts) and the other arm low (0 volts) using high value resistors within the third party equipment. In order to ensure that the AMG equipment detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party bias resistors are less the 750Ω... -
Page 7: Data Interface Connections
ALARM 2 OUT + ALARM 1 OUT - ALARM 1 OUT + AMG Systems Ltd. reserves the right to make changes to this Page 7 of 8 AMG5516 Instruction Sheet D20739- document without notice. The information herein is believed to 01.doc... -
Page 8: Physical Information

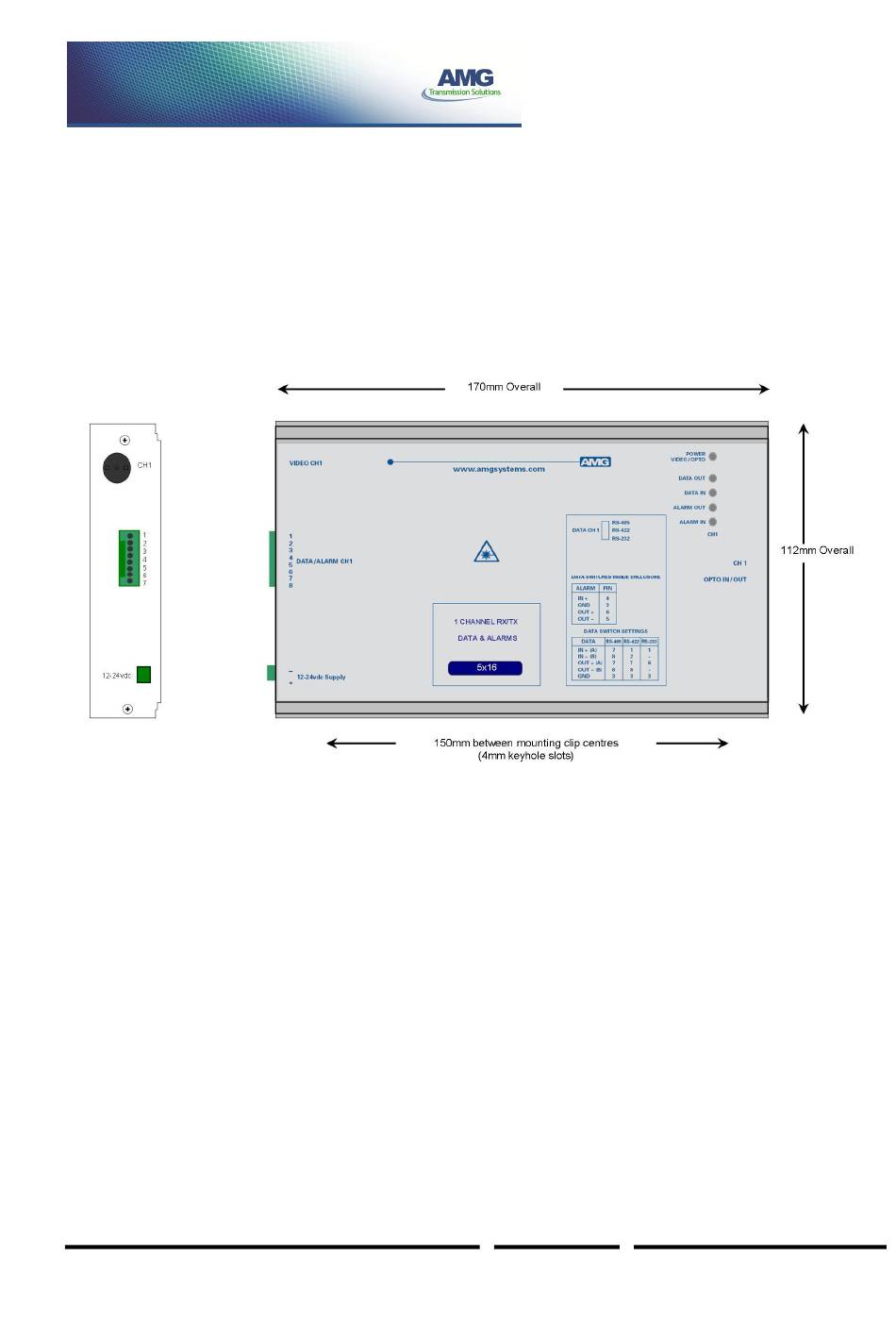

Weight..........600grams Mounting Details The AMG unit is supplied with a clip-on mounting bracket which should be attached to a panel or wall using 2 off 4.0mm screws, see diagram on page 1 for dimensions. The unit is clipped into the mounting bracket, and is then held firmly in position.
