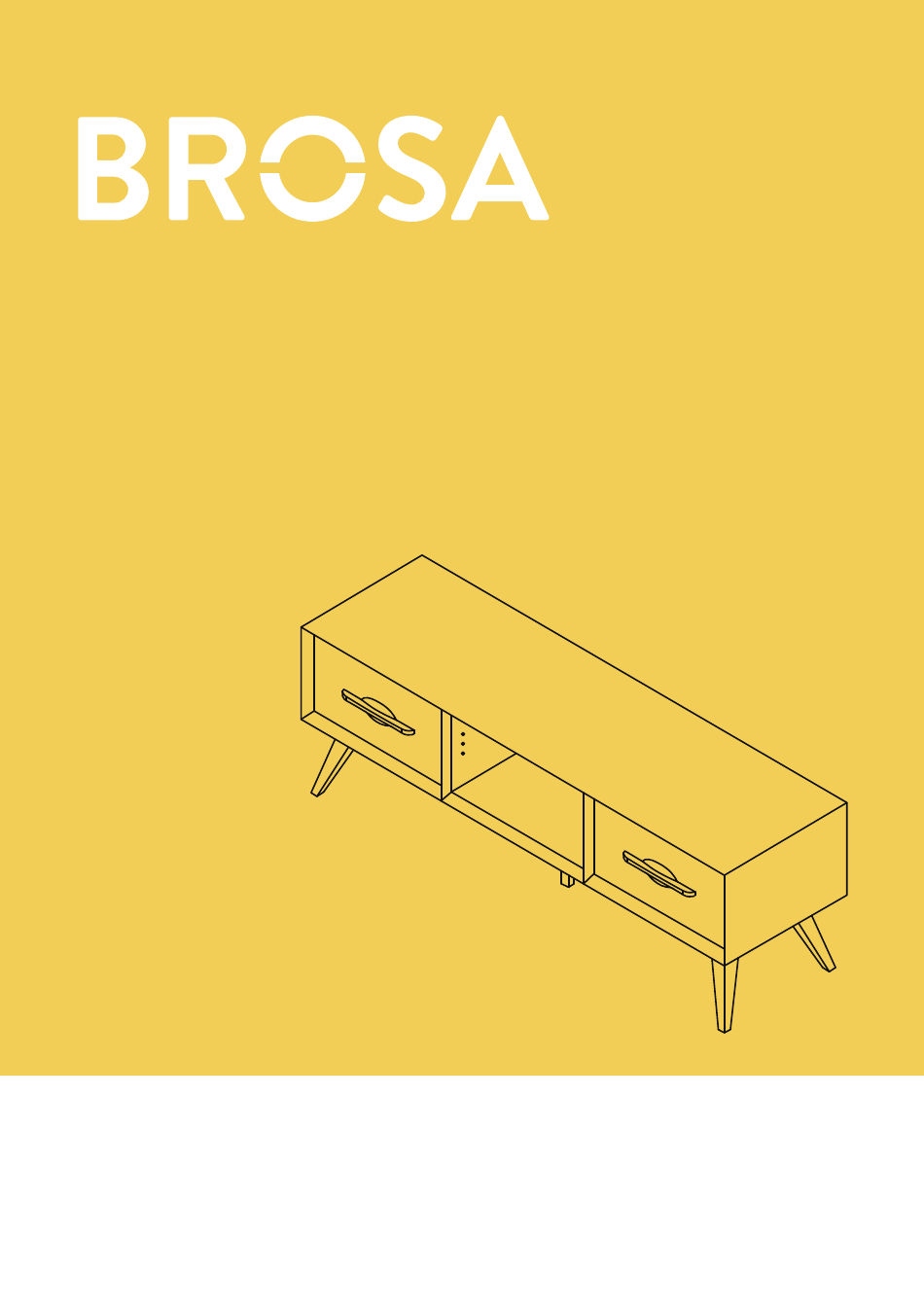

- Page 1 ASSEMBLY GUIDE Hans Entertainment Unit...
- Page 2 Components Upon unpacking your storage from it’s delivery box, you should have the separate pieces shown below. Follow the steps on the next pages to assemble your new storage. Shelf x 1 Leg x 4 Central Leg x 1 Body x 1 Hardware A x 4 B x 4...
- Page 3 Insert the cross dowel into the top hole of the leg Step 1 so that the side marker faces the bolt hole. Repeat for all four legs. A x 4 Screw the threaded bolt into the corner hole. Step 2 Repeat for all four legs.
- Page 4 Place the storage body on on it’s back. Insert a Step 3 leg construction formed in previous steps into a corner opening. Fit a washer (C), a lock washer then a hex nut to the threaded bold and tighten with the spanner (F). Repeat for the remaining legs. Screw central leg onto the metal plate.
- Page 5 Insert shelf supports into the holes of the storage Step 4 compartment. Make sure that all supports are on the same level. Insert the shelf into the opening. Lower the shelf until it rests securely on all four supports. J x 4...
- Page 6 Turn the twist inside of the drawer to adjust it’s ver- Step 5 tical position, so that there are exqual gaps above and below the front wall. +2.5 -2.5...
- Page 7 To take the drawer out, open it, pull out the Lock Step 6 button inside of the drawer. Gently lift the front part of of the drawer.
- Page 8 To put the drawer back in, attach the connector in Step 7 the back of the drawer. Gently put down the front part of of the drawer so that the front connectors attach. Push back the Lock button inside of the drawer.
- Page 9 Fix a mounting plate (aa) to the back of the storage Step 8 using at head screws (cc). By using appropriate fastener based upon wall com- position, x another mounting plate (aa) to the wall. Connect two plates with the nylon srap (bb). Tighten the strap so that the table is xed in the place.
- Page 10 Enjoy your new storage! Step 10...
